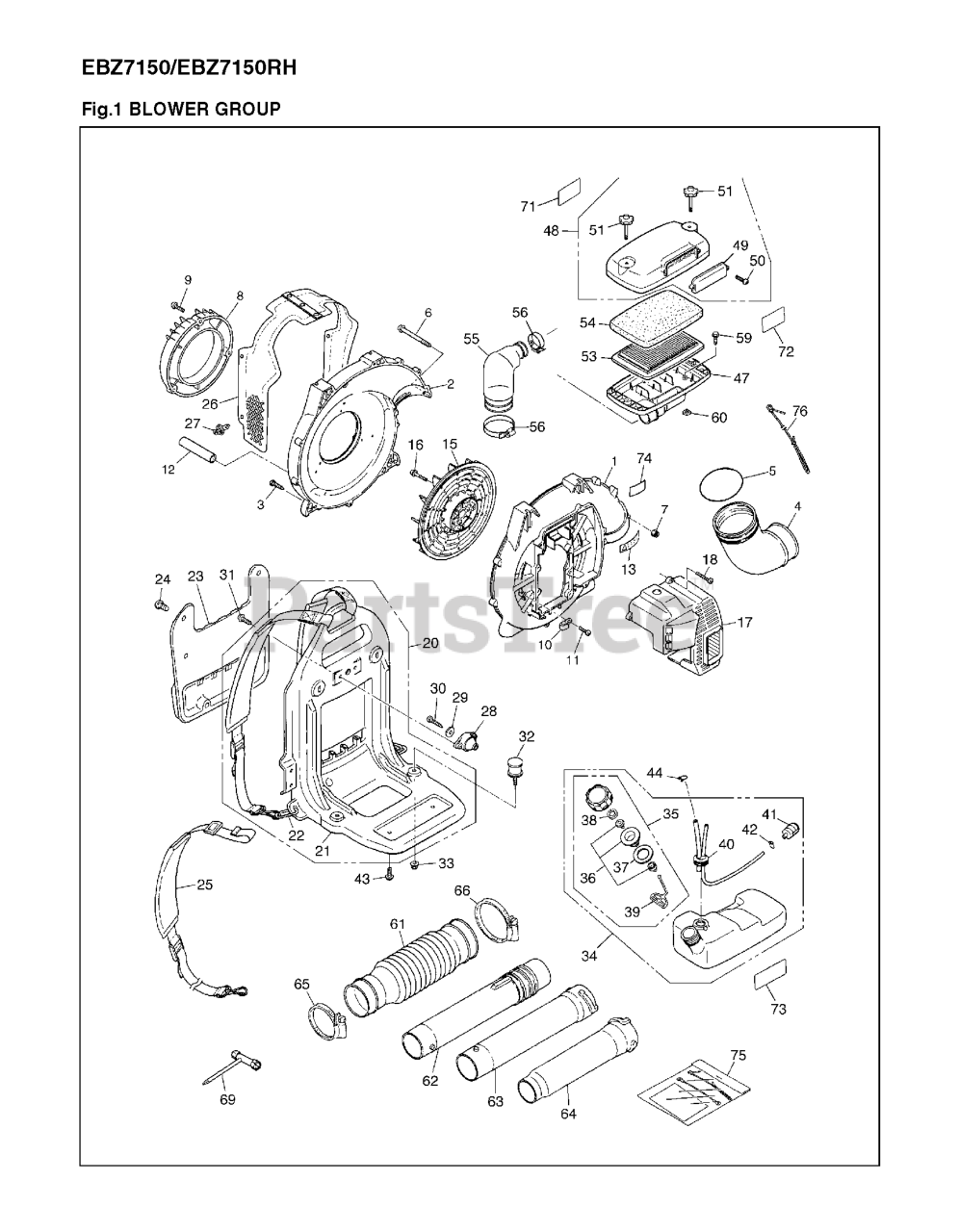

EBZ 7150 (966363201) - RedMax Backpack Blower (2011-04) HOUSING Parts Diagram

Backpack Blower

HOUSING Parts Diagram

  • Title

1

RedMax 511783101

VOLUTE CASE

$102.99

$

In Stock, only 1 left!

0

2

RedMax 521678801

VOLUTE COVER(R-848L5C55B3,B4)
(Superseded to 511785201)

$78.99

$

Usually ships in 3-10 days

0

3

RedMax 512848101

SCREW

$3.99

$

In Stock, Qty 20+

0

4

RedMax 544264401

ELBOW
(Superseded to 511785401)

$31.99

$

Usually ships in 3-10 days

0

5

RedMax 516135401

O-RING

$4.99

$

In Stock, Qty 12

0

6

RedMax 544264601

SCREW

$6.49

$

In Stock, only 4 left!

0

7

RedMax 514183901

NUT

$4.99

$

In Stock, only 1 left!

0

8

RedMax 512717201

COVER, INLETEB7001

$

$

Not available

9

RedMax 512848101

SCREW

$3.99

$

In Stock, Qty 20+

0

10

RedMax 513671901

CLAMP

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 512847901

SCREW

$4.99

$

In Stock, only 4 left!

0

12

RedMax 513665201

TUBE
(Superseded to 516869801)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 529266201

LABEL,CAUTION
(Superseded to 513666101)

$

$

Not available

15

RedMax 513665901

FAN
(Superseded to 544265001)

$84.99

$

Usually ships in 3-10 days

0

16

RedMax 510906101

BOLT
(Superseded to 544265101)

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 511782101

ENGINE COVER

$46.99

$

Usually ships in 3-10 days

0

18

RedMax 512848101

SCREW

$3.99

$

In Stock, Qty 20+

0

20

RedMax 511782401

FRAME ASSY(RPLS -3500,-3501)

Note: . 21 22

$159.99

$

Usually ships in 3-10 days

0

21

RedMax 511782501

FRAME COMP.

$109.99

$

Usually ships in 3-10 days

0

22

RedMax 514331601

RING
(Superseded to 521142801)

$4.99

$

In Stock, Qty 11

0

23

RedMax 511782601

PAD

$53.99

$

In Stock, only 3 left!

0

24

RedMax 521147201

CLIP (RPLS 3490-21320)
(Superseded to 526476701)

$3.99

$

In Stock, Qty 20+

0

25

RedMax 511709601

BAND ASSY. (BUCKLE 275632910)

$34.99

$

Usually ships in 3-10 days

0

26

RedMax 511743601

NET COMP (RPLS-T402325430)

$10.99

$

Usually ships in 3-10 days

0

27

RedMax 526243901

CLIP
(Superseded to 505184701)

$7.49

$

Usually ships in 3-10 days

0

28

RedMax 513666701

DAMPER UPPER
(Superseded to 513666702)

$9.49

$

In Stock, only 2 left!

0

29

RedMax 502850501

WASHER
(Superseded to 544270601)

$6.49

$

Usually ships in 3-10 days

0

30

RedMax 576810301

BOLT
(Superseded to 544270701)

$4.99

$

In Stock, Qty 12

0

31

RedMax 544270801

SCREW

Note: LARGE WASHER

$6.49

$

In Stock, Qty 10

0

32

RedMax 513667301

DAMPER
(Superseded to 516874901)

$9.49

$

In Stock, only 2 left!

0

33

RedMax 513667501

NUT

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 528926001

TANK ASSY FOR EBZ7150

Note: . 35 thru 42

$157.99

$

Usually ships in 3-10 days

0

35

RedMax 504117701

ASSY FUEL CAP

Note: . 36 37 38 39

$30.99

$

In Stock, Qty 8

0

36

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

In Stock, only 1 left!

0

37

RedMax 506744301

PACKING

$4.99

$

In Stock, Qty 8

0

38

RedMax 506746801

FILTER

$6.49

$

In Stock, only 2 left!

0

39

RedMax 504117901

STOPPER

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 521835501

PIPE COMPLETE
(Superseded to 570988101)

$

$

Not available

41

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 13

0

43

RedMax 544273101

SCREW

Note: LARGE WASHER

$6.49

$

In Stock, Qty 5

0

44

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

47

RedMax 511918801

BODY CLEANER

$36.99

$

Usually ships in 3-10 days

0

48

RedMax 511913501

COVER ASSY
(Superseded to 521833201)

Note: . 49 50 51

$

$

Not available

49

RedMax 544271301

COVER

$6.99

$

Usually ships in 3-10 days

0

50

RedMax 512848101

SCREW

$3.99

$

In Stock, Qty 20+

0

51

RedMax 544271401

KNOB BOLT

$13.99

$

In Stock, Qty 12

0

53

RedMax 512652001

ELEMENT
(Superseded to 544271501)

$24.99

$

In Stock, Qty 20+

0

54

RedMax 512654101

ELEMENT
(Superseded to 544271601)

$14.99

$

In Stock, Qty 20+

0

55

RedMax 505182801

HOSE

$26.99

$

Usually ships in 3-10 days

0

56

RedMax 544271901

CLAMP(F64)

$4.99

$

In Stock, Qty 10

0

59

RedMax 521861401

BOLT
(Superseded to 512845601)

$6.49

$

In Stock, Qty 13

0

60

RedMax 544272101

NUT

$3.99

$

Usually ships in 3-10 days

0

61

RedMax 505180901

HOSE

$37.99

$

In Stock, Qty 17

0

62

RedMax 521676501

SWIVEL JOINT
(Superseded to 511767301)

$17.99

$

In Stock, Qty 7

0

63

RedMax 511768201

PIPE

$18.99

$

In Stock, Qty 7

0

64

RedMax 511785801

PIPE, END (RPLS 848L5C65E0)

$18.99

$

In Stock, only 1 left!

0

65

RedMax 544274001

CLAMP(F96)

$6.49

$

In Stock, Qty 5

0

66

RedMax 544274101

CLAMP(F115)

$4.99

$

In Stock, Qty 20+

0

69

RedMax 521533001

SOCKET
(Superseded to 544274401)

$8.99

$

In Stock, only 3 left!

0

71

RedMax 512651301

LABEL

$7.49

$

Usually ships in 3-10 days

0

72

RedMax 528921201

LABEL CLEANER 848L6H90R0

$3.99

$

Usually ships in 3-10 days

0

73

RedMax 528921301

$

$

Not available

74

RedMax 510963901

$

$

Not available

75

RedMax 577865501

CABLE KIT

Note: OPTIONAL. 76

$18.99

$

Usually ships in 3-10 days

0

76

RedMax 577832801

CORD, ANTISTATIC

Note: OPTIONAL

$12.68

$

Usually ships in 3-10 days

0
