EBZ 7500 - RedMax Backpack Blower (SN: 01200101 & Above) (2014-04) HANDLE CONTROLS Parts Diagram

Backpack Blower

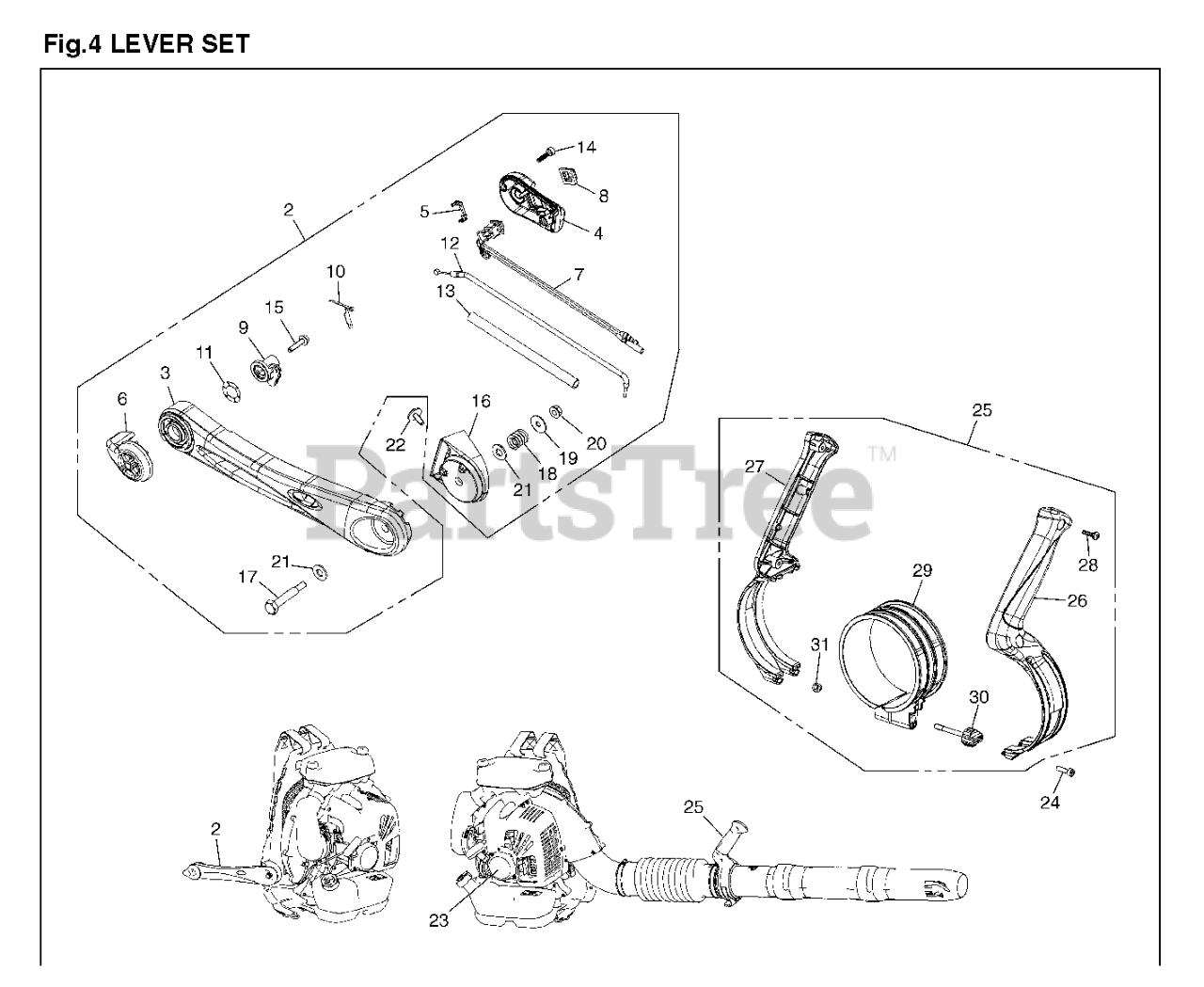

HANDLE CONTROLS Parts Diagram

  • Title

2

RedMax 576562401

LEVER,SET

Note: INCL 3 THRU 21

$60.99

$

In Stock, Qty 19

0

3

RedMax 576562601

ARM

$34.99

$

In Stock, Qty 10

0

4

RedMax 576562701

COVER

$8.99

$

In Stock, only 1 left!

0

5

RedMax 576562801

STOPPER

$6.49

$

In Stock, only 2 left!

0

6

RedMax 576562901

LEVER,THROTTLE

$37.99

$

In Stock, only 1 left!

0

7

RedMax 576563001

SWITCH

$91.99

$

Usually ships in 3-10 days

0

8

RedMax 513351901

CAP SWITCH

$4.99

$

In Stock, only 1 left!

0

9

RedMax 576563101

PLATE

$13.99

$

In Stock, Qty 16

0

10

RedMax 576563201

PLATE, CONTACT

$10.99

$

In Stock, Qty 6

0

11

RedMax 576563301

WASHER WAVE

$9.99

$

In Stock, Qty 14

0

12

RedMax 576563401

CABLE

$31.99

$

In Stock, Qty 16

0

13

RedMax 544277601

TUBE

$4.99

$

In Stock, only 1 left!

0

14

RedMax 576563501

SCREW

$6.49

$

In Stock, only 1 left!

0

15

RedMax 506745201

BOLT
(Superseded to 521345201)

$4.99

$

In Stock, Qty 15

0

16

RedMax 576563601

BRACKET

$24.99

$

In Stock, only 4 left!

0

17

RedMax 514336201

BOLT

$6.49

$

In Stock, Qty 20+

0

18

RedMax 514336301

SPRING

$4.99

$

In Stock, Qty 20+

0

19

RedMax 514336501

WASHER Z349525440

$3.99

$

In Stock, Qty 12

0

20

RedMax 521519601

NUT 8488646000

$3.99

$

In Stock, Qty 20+

0

21

RedMax 514336701

WASHER

$3.99

$

In Stock, Qty 7

0

22

RedMax 544270801

SCREW

$6.49

$

In Stock, Qty 10

0

23

RedMax 576564601

RECOIL DECAL

$3.99

$

In Stock, only 2 left!

0

24

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 20+

0

25

RedMax 576565101

GRIP ASSY

Note: INCL 26 THRU 31

$17.99

$

In Stock, Qty 20+

0

26

RedMax 576565201

GRIP,RIGHT

$17.99

$

In Stock, only 2 left!

0

27

RedMax 576565301

GRIP,LEFT

$14.99

$

In Stock, only 2 left!

0

28

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

29

RedMax 576565401

COLLAR

$26.99

$

In Stock, Qty 12

0

30

RedMax 576565501

KNOB

$24.99

$

Usually ships in 3-10 days

0

31

RedMax 514183901

NUT

$4.99

$

In Stock, only 1 left!

0
