EBZ 7500 RH (966709901) - RedMax Backpack Blower (2010-10) CARBURETOR Parts Diagram

Backpack Blower

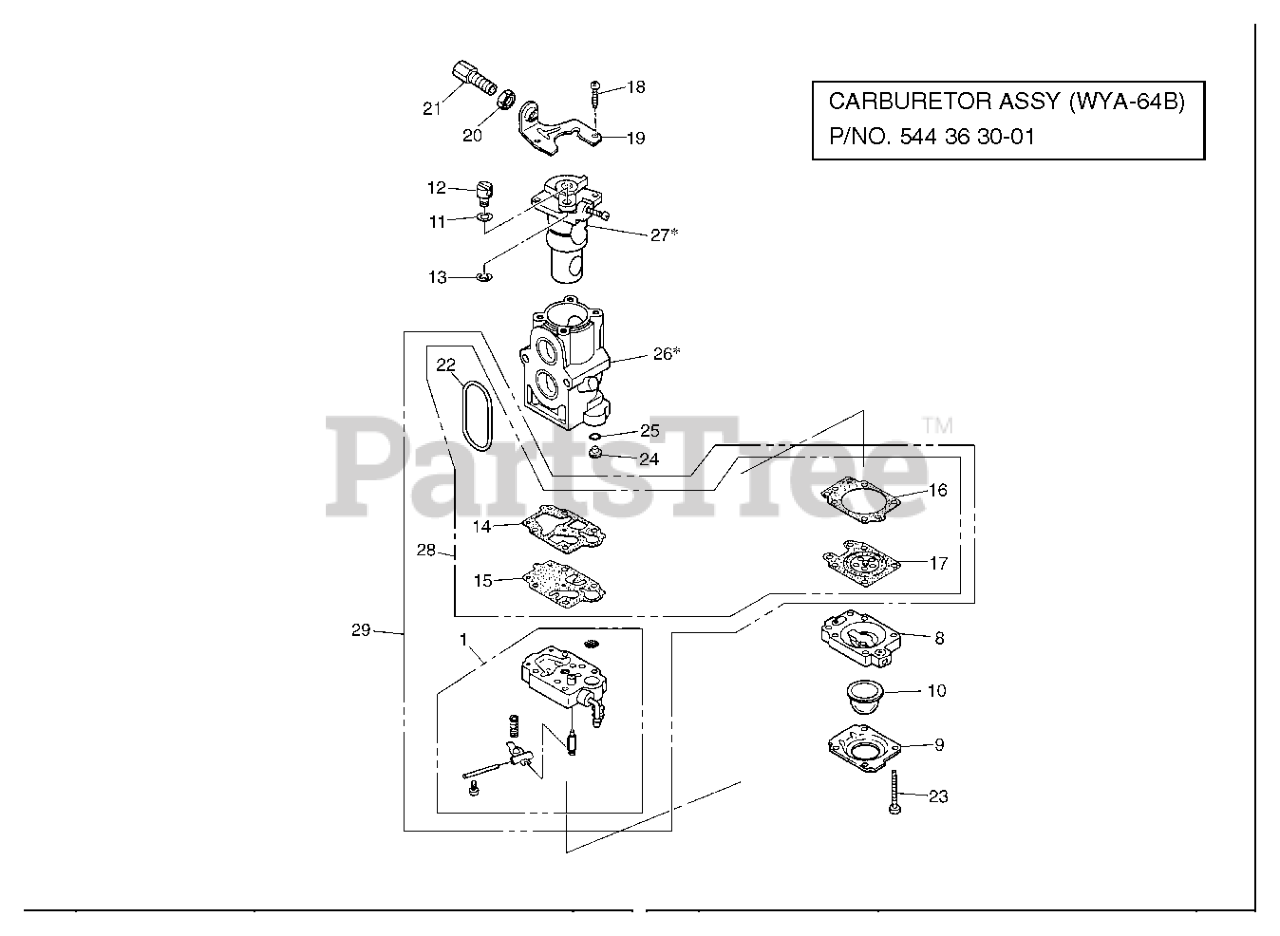

CARBURETOR Parts Diagram

  • Title

1

RedMax 544363501

BODY-A-PUMP

$85.99

$

Usually ships in 3-10 days

0

8

RedMax 506740901

BODY

$26.99

$

In Stock, only 2 left!

0

9

RedMax 506741001

1OVER
(Superseded to 516543901)

$5.99

$

Usually ships in 3-10 days

0

10

RedMax 505306701

PUMP

$9.49

$

In Stock, Qty 14

0

11

RedMax 506746101

WASHER
(Superseded to 521360401)

$

$

Not available

12

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$

$

Not available

13

RedMax 506738601

RING
(Superseded to 516523601)

$

$

Not available

14

RedMax 506745101

GASKET

$10.99

$

In Stock, only 3 left!

0

15

RedMax 506689801

DIAPHRAGM

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 506740801

GASKET

$11.99

$

Usually ships in 3-10 days

0

17

RedMax 505306801

DIAPHRAGM

$14.99

$

In Stock, only 1 left!

0

18

RedMax 505307901

SCREW
(Superseded to 516528701)

$

$

Not available

19

RedMax 506746001

BRACKET
(Superseded to 521359901)

$5.99

$

Usually ships in 3-10 days

0

20

RedMax 506612601

NUT
(Superseded to 510487401)

$3.49

$

In Stock, only 2 left!

0

21

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$4.99

$

In Stock, only 3 left!

0

22

RedMax 521631501

RING
(Superseded to 544365101)

$7.99

$

In Stock, only 2 left!

0

23

RedMax 506741101

SCREW

$3.49

$

In Stock, only 3 left!

0

24

RedMax 544365301

JET #58

$13.99

$

Usually ships in 3-10 days

0

25

RedMax 505307501

O-RING

$3.49

$

In Stock, Qty 10

0

26

RedMax 544363001

CARB
(Superseded to 581156101)

Note: ASSY ONLY

$113.99

$

In Stock, Qty 10

0

27

RedMax 544363001

CARB
(Superseded to 581156101)

Note: ASSY ONLY

$113.99

$

In Stock, Qty 10

0

28

RedMax 511459501

GASKET KIT

$39.99

$

In Stock, Qty 11

0

29

RedMax 511459601

REBUILD KIT

$102.99

$

In Stock, only 4 left!

0
