EBZ 8000 - RedMax Backpack Blower (SN: 40500101 - 50099999) (2004-05) 028 - ENGINE GROUP Parts Diagram

Backpack Blower

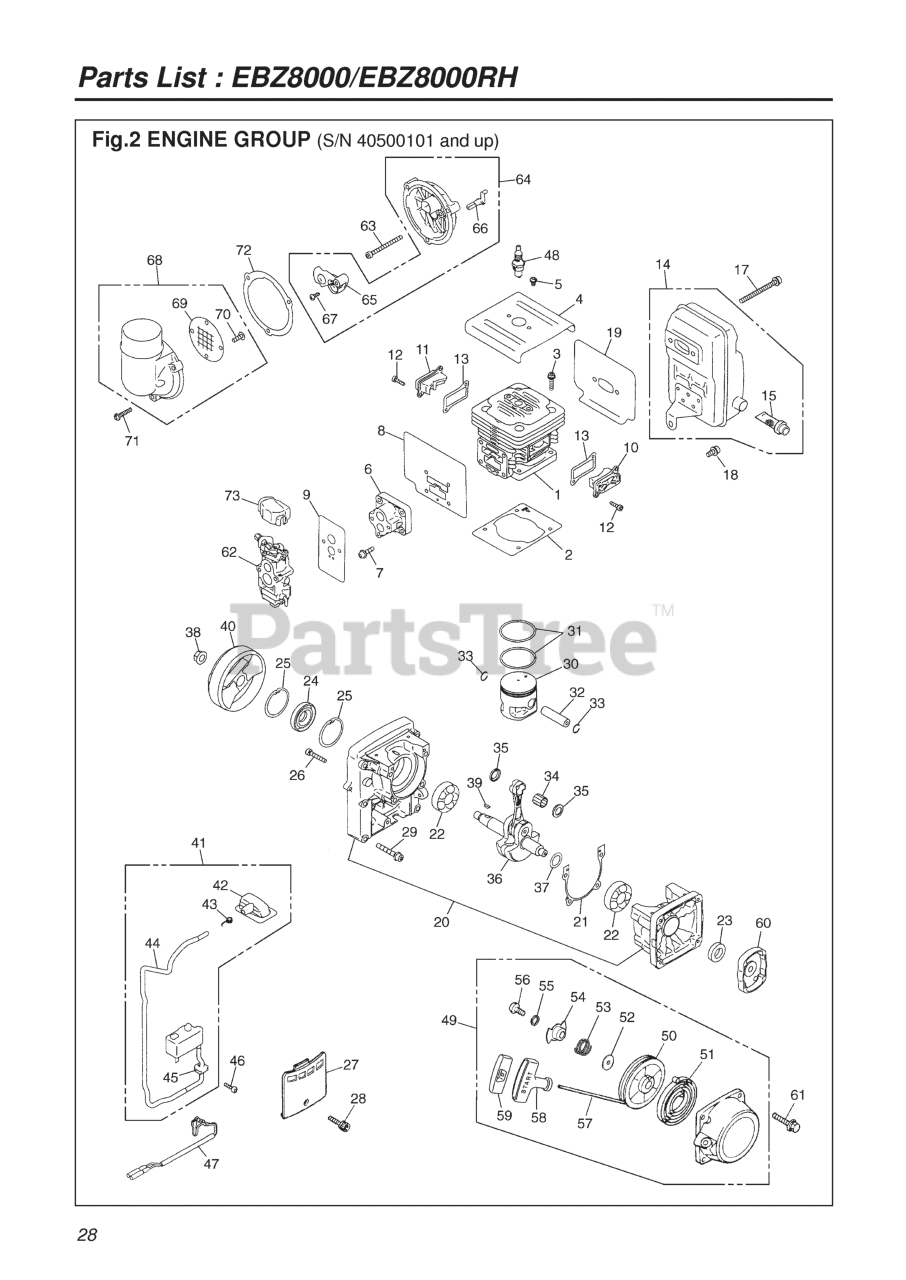

028 - ENGINE GROUP Parts Diagram

  • Title

1

RedMax 848H0012A1

848-H00-12A2
(Superseded to 504796201)

$53.99

$

In Stock, only 1 left!

0

2

RedMax 848H0012B1

GASKET, BASE
(Superseded to 511444201)

$7.49

$

In Stock, Qty 10

0

3

RedMax 482012130

BOLT
(Superseded to 506616001)

$4.99

$

In Stock, Qty 15

0

4

RedMax 848H0012G0

PLATE, CYL
(Superseded to 521627201)

$6.49

$

Usually ships in 3-10 days

0

5

RedMax T496050810

SCREW TORX
(Superseded to 544256801)

$6.49

$

Usually ships in 3-10 days

0

6

RedMax 848H0014A0

INSULATOR
(Superseded to 521627401)

$18.99

$

Usually ships in 3-10 days

0

7

RedMax 8488152001

BOLT TORX
(Superseded to 521516501)

$6.49

$

In Stock, only 3 left!

0

8

RedMax 848H0014B2

GASKET, INSULATOR
(Superseded to 511444901)

$8.99

$

In Stock, Qty 10

0

9

RedMax 848H0014C1

GASKET, CARB.
(Superseded to 521627601)

$4.99

$

In Stock, Qty 12

0

10

RedMax 848H0012C0

COVER, TR-S
(Superseded to 505184001)

$7.49

$

Usually ships in 3-10 days

0

11

RedMax 848H0012D0

COVER,TR-F
(Superseded to 505183901)

$6.99

$

Usually ships in 3-10 days

0

12

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 20+

0

13

RedMax 848H0012E

848-H00-12E1

$

$

Not available

14

RedMax 848H001510

MUFFLER ASSY.
(Superseded to 521627801)

$

$

Not available

15

RedMax 142115120

ARRESTER
(Superseded to 513262801)

$15.99

$

Usually ships in 3-10 days

0

17

RedMax T495067031

BOLT
(Superseded to 544257901)

$6.49

$

In Stock, only 2 left!

0

18

RedMax T495061431

BOLT
(Superseded to 544258001)

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 848H0015C0

GASKET, MUFFLER (USE -15C1)
(Superseded to 511445501)

$

$

Not available

20

RedMax 848H002110

CRANKCASE-CASE
(Superseded to 521628201)

$42.99

$

Usually ships in 3-10 days

0

21

RedMax 848H0021D1

GASKET, CASE
(Superseded to 511446001)

$4.99

$

In Stock, only 3 left!

0

22

RedMax 84889G4200

BEARING
(Superseded to 576696201)

$18.99

$

In Stock, Qty 15

0

23

RedMax 8488AG2700

SEAL
(Superseded to 521521901)

$8.99

$

In Stock, only 3 left!

0

24

RedMax 8488AG4200

SEAL
(Superseded to 521522001)

$8.99

$

In Stock, only 1 left!

0

25

RedMax 0406504218

SNAP RING
(Superseded to 544258701)

$

$

Not available

26

RedMax 482021310

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

27

RedMax 848H0021H0

COVER
(Superseded to 544258901)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 20+

0

29

RedMax 8488164500

BOLT TORX
(Superseded to 544259101)

$4.99

$

In Stock, only 4 left!

0

30

RedMax 848H0041A1

PISTON
(Superseded to 504796301)

$44.99

$

In Stock, only 4 left!

0

31

RedMax 8488C50200

RING
(Superseded to 510918401)

$8.99

$

In Stock, Qty 13

0

32

RedMax 8488BC4500

PIN
(Superseded to 504796401)

$7.49

$

In Stock, Qty 14

0

33

RedMax 8488T31300

SNAP RING
(Superseded to 521531901)

$6.49

$

In Stock, Qty 15

0

34

RedMax 84888C1600

BEARING
(Superseded to 521520801)

$18.99

$

In Stock, Qty 11

0

35

RedMax 848873C000

WASHER
(Superseded to 521520501)

$4.99

$

In Stock, only 3 left!

0

36

RedMax 848H004201

848-H00-4202
(Superseded to 521628801)

$169.99

$

In Stock, only 1 left!

0

37

RedMax 848870G000

1300-42410
(Superseded to 516283101)

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 140043230

NUT, M10
(Superseded to 513241901)

$6.49

$

In Stock, Qty 9

0

39

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

In Stock, Qty 9

0

40

RedMax 848H0071A0

ROTOR
(Superseded to 521629001)

$

$

Not available

41

RedMax 848H007120

COIL-A
(Superseded to 521628901)

$

$

Not available

42

RedMax T110872110

CAP
(Superseded to 521739401)

$12.99

$

Usually ships in 3-10 days

0

43

RedMax 7110872120

SPRING

$

$

Not available

44

RedMax 7110872130

TUBE

$

$

Not available

45

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.99

$

Usually ships in 3-10 days

0

46

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 20+

0

47

RedMax T110871240

CORD-C
(Superseded to 512258401)

$9.99

$

In Stock, only 2 left!

0

48

RedMax 369991809

T2070-73110
(Superseded to 514530801)

$15.99

$

Usually ships in 3-10 days

0

49

RedMax 848H007510

848-H00-7511
(Superseded to 521629301)

$47.99

$

In Stock, Qty 9

0

50

RedMax 848H0075C0

848-H00-75C1
(Superseded to 521629901)

$36.99

$

Usually ships in 3-10 days

0

51

RedMax 848H0075B0

SPRING
(Superseded to 521629601)

$17.99

$

Usually ships in 3-10 days

0

52

RedMax 848H0075M0

848-H00-75M1
(Superseded to 544261801)

$4.99

$

In Stock, Qty 20+

0

53

RedMax 848H0075L0

848-H00-75L1

$

$

Not available

54

RedMax 848H0075K0

848-H00-75K1

$

$

Not available

55

RedMax 848H0075W0

848-H00-75W1
(Superseded to 544261701)

$4.99

$

In Stock, Qty 5

0

56

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

57

RedMax 8488S90000

ROPE
(Superseded to 544261401)

$6.49

$

Usually ships in 3-10 days

0

58

RedMax 848H0075J0

KNOB
(Superseded to 511448901)

$6.49

$

Usually ships in 3-10 days

0

59

RedMax 848H0075Z0

COVER KNOB
(Superseded to 544261601)

$3.99

$

In Stock, only 1 left!

0

60

RedMax 848H007520

848-H00-7521
(Superseded to 521629501)

$18.99

$

Usually ships in 3-10 days

0

61

RedMax 48203220

4820-32120

$

$

Not available

62

RedMax 848H008100

CARBURETOR-A (WYA-44)
(Superseded to 505183101)

$169.99

$

Usually ships in 3-10 days

0

63

RedMax 482082310

BOLT
(Superseded to 515390701)

$4.99

$

Usually ships in 3-10 days

0

64

RedMax 848H008330

848-H00-8331
(Superseded to 544363101)

$34.99

$

In Stock, only 2 left!

0

65

RedMax 848H0083C0

848-H00-83C1
(Superseded to 521632301)

$8.99

$

In Stock, only 1 left!

0

66

RedMax 848H0083D0

LEVER
(Superseded to 521632401)

$6.49

$

Usually ships in 3-10 days

0

67

RedMax 7110882190

SCREW

$

$

Not available

68

RedMax 848H008340

848-H00-8341
(Superseded to 521632001)

$10.99

$

Usually ships in 3-10 days

0

69

RedMax 848H0083K1

SCREEN
(Superseded to 544263401)

$

$

Not available

70

RedMax 149182360

SCREW
(Superseded to 513303601)

$3.49

$

Usually ships in 3-10 days

0

71

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, Qty 20+

0

72

RedMax 848H0083M1

GASKET,CUP
(Superseded to 521632601)

$8.99

$

In Stock, Qty 8

0

73

RedMax 450081910

COVER
(Superseded to 506744201)

$10.99

$

Usually ships in 3-10 days

0
