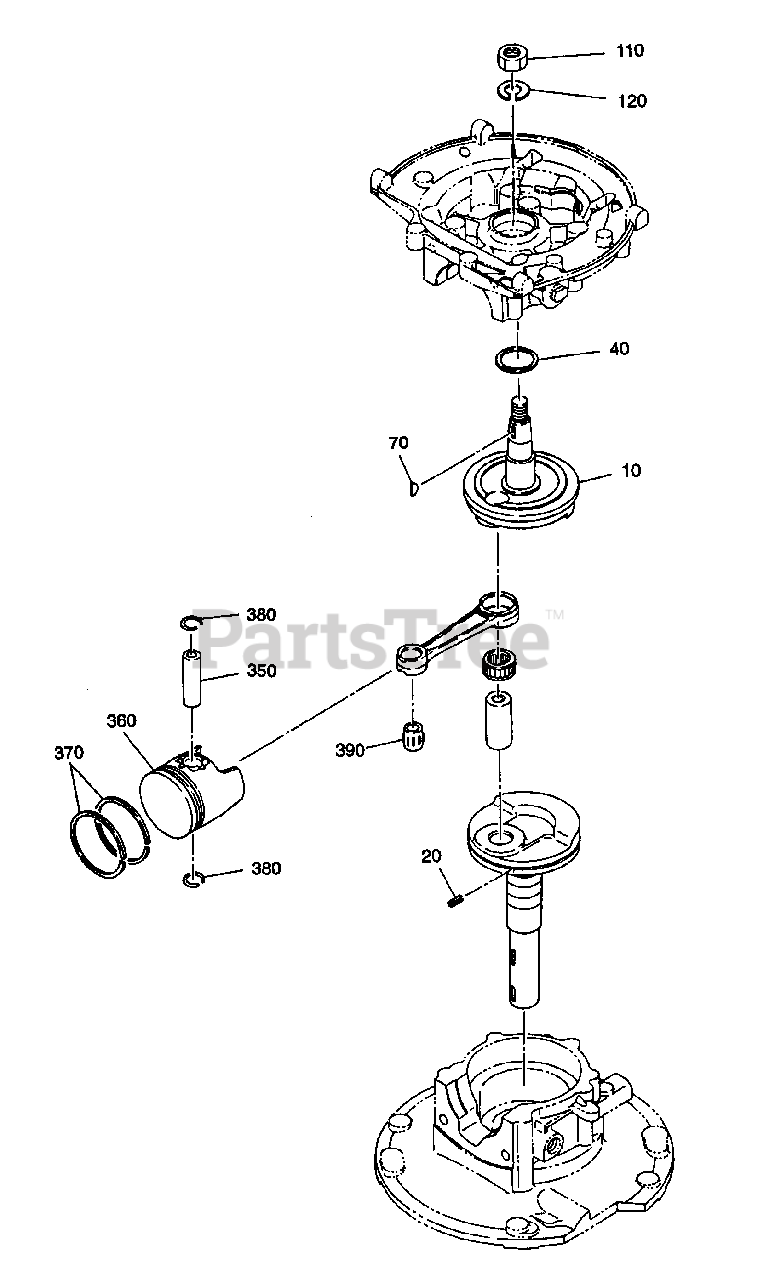

EC 13 V (41272) - Snapper Engine, Made by Robin Subaru, 4hp Crankshaft, Piston Parts Diagram

Engine, Made by Robin Subaru, 4hp

Crankshaft, Piston Parts Diagram

  • Title

10

Snapper 157-21201-00

CRANK SHAFT ASSY

$

$

Not available

20

Snapper 005-19030-60

SPRING PIN

$

$

Not available

40

Snapper 157-25001-03

SPACER

Note: (T=O.3)

$

$

Not available

40

Snapper 157-25002-03

SPACER

Note: (T=O.1)

$

$

Currently unavailable

70

Snapper 005-32042-01

WOODRUFF KEY

$

$

Not available

110

Snapper 002-17120-00

NUT

$

$

Not available

120

Snapper 003-20120-00

SPRING WASHER

$

$

Currently unavailable

350

Snapper 157-23301-03

PISTON PIN

$

$

Not available

360

Snapper 157-23451-01

PISTON CP

Note: (STD)

$

$

Not available

360

Snapper 157-23452-01

PISTON CP 0.25

Note: (OVER SIZE 0.25)

$

$

Currently unavailable

360

Snapper 157-23453-01

PISTON CP 0.50

Note: (OVER SIZE 0.50)

$

$

Not available

370

Snapper 157-23501-07

PISTON RING SET STD

Note: (STD)

$23.99

$

Usually ships in 2-12 days

0

370

Snapper 157-23502-07

PISTON RING SET 0.25

Note: (OVER SIZE 0.25)

$

$

Not available

370

Snapper 157-23503-07

PISTON RING SET 0.50

Note: (OVER SIZE 0.50)

$

$

Not available

380

Snapper 056-51200-10

CLIP

$

$

Not available

390

Snapper 061-01200-10

NEEDLE BEARING

$

$

Not available
