EC 741 S - Shindaiwa Cut-Off Saw (SN: F05113001001 - F05113999999) CARBURETOR Parts Diagram

Cut-Off Saw

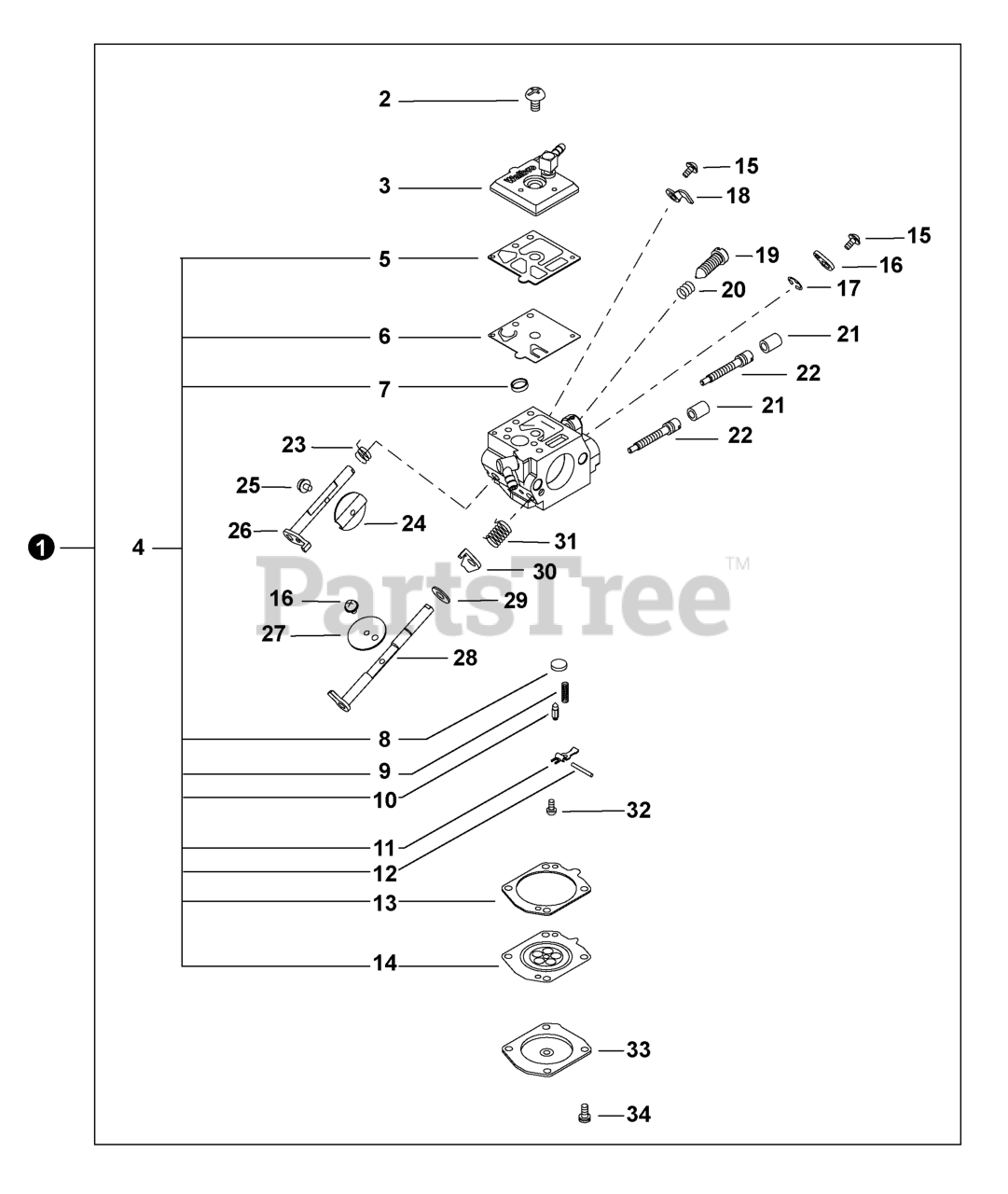

CARBURETOR Parts Diagram

  • Title

1

Echo A021004910

CARBURETOR – HDA-343

Note: Includes Items 2-34

$187.99

$

In Stock, only 2 left!

0

2

Echo 12311016130

SCREW

Note: +

$0.99

$

Usually ships in 2-4 days

0

3

Echo P003006150

COVER, FUEL PUMP

Note: +

$11.99

$

Usually ships in 2-4 days

0

4

Echo P021054180

REPAIR KIT, CARBURETOR

Note: Includes Items 5-14+

$46.99

$

Usually ships in 2-4 days

0

5

--

GASKET, FUEL PUMP

Note: ++

$

$

Not available

6

--

DIAPHRAGM, FUEL PUMP

Note: ++

$

$

Not available

7

--

SCREEN, FUEL INLET

Note: ++

$

$

Not available

8

--

PLUG, WELCH

Note: ++

$

$

Not available

9

--

SPRING, METERING LEVER

Note: ++

$

$

Not available

10

--

VALVE, INLET NEEDLE

Note: ++

$

$

Not available

11

--

LEVER, METERING

Note: ++

$

$

Not available

12

--

PIN, METERING LEVER

Note: ++

$

$

Not available

13

--

GASKET, METERING DIAPHRAGM

Note: ++

$

$

Not available

14

--

DIAPHRAGM, METERING

Note: ++

$

$

Not available

15

Echo 12311438830

SCREW

Note: +

$1.49

$

In Stock, Qty 6

0

16

Echo P003003020

LEVER, THROTTLE

Note: +

$4.99

$

Usually ships in 2-4 days

0

17

Echo 12312715030

E-RING

Note: +

$0.99

$

In Stock, only 2 left!

0

18

Echo 12315630830

STOP, THROTTLE

Note: +

$4.49

$

Usually ships in 2-4 days

0

19

Echo P003003650

SCREW, IDLE ADJUST

Note: +

$7.49

$

In Stock, only 2 left!

0

20

Echo 12313304260

SPRING, IDLE ADJUST

Note: +

$7.49

$

In Stock, only 2 left!

0

21

Echo P003000010

CAP, LIMITER

Note: +

$0.99

$

In Stock, Qty 17

0

22

Echo P003006160

NEEDLE, MIXTURE

Note: +

$9.49

$

Usually ships in 2-4 days

0

23

Echo P003000560

SPRING, THROTTLE RETURN

Note: +

$11.99

$

Usually ships in 2-4 days

0

24

Echo 12313216130

VALVE, THROTTLE

Note: +

$2.49

$

Usually ships in 2-4 days

0

25

Echo P003002380

SCREW

Note: +

$0.99

$

Usually ships in 2-4 days

0

26

Echo P003003320

SHAFT ASSY, THROTTLE

Note: +

$

$

Currently unavailable

27

Echo P003006170

VALVE, CHOKE

Note: +

$9.49

$

Usually ships in 2-4 days

0

28

Echo P003003340

SHAFT ASSY, CHOKE

Note: +

$23.99

$

Usually ships in 2-4 days

0

29

Echo 12314926030

WASHER

Note: +

$0.99

$

Usually ships in 2-4 days

0

30

Echo P003000620

LEVER, FAST IDLE

Note: +

$1.49

$

Usually ships in 2-4 days

0

31

Echo P003000610

SPRING, CHOKE RETURN

Note: +

$1.49

$

Usually ships in 2-4 days

0

32

Echo P003005400

SCREW

Note: +

$10.99

$

Usually ships in 2-4 days

0

33

Echo P003003300

COVER, DIAPHRAGM

Note: +

$

$

Currently unavailable

34

Echo 12313002960

SCREW

Note: +

$1.99

$

In Stock, only 1 left!

0
