EC 741 S - Shindaiwa Cut-Off Saw (SN: F05113001001 - F05113999999) FUEL SYSTEM Parts Diagram

Cut-Off Saw

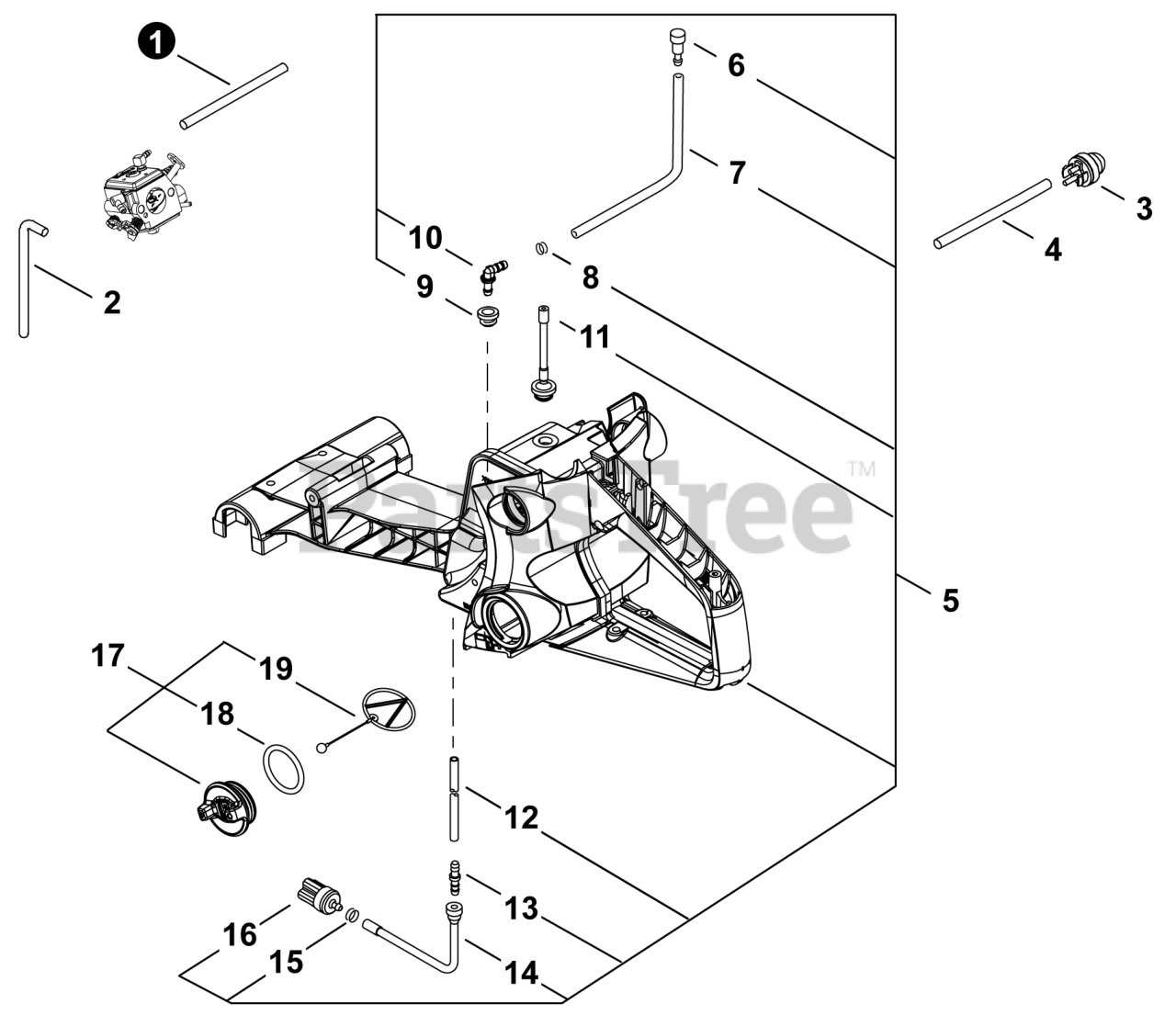

FUEL SYSTEM Parts Diagram

  • Title

1

Echo V470001640

PIPE, PULSE 3x6x135

$10.99

$

In Stock, only 1 left!

0

2

Echo V471002800

PIPE, PULSE 3x6x110

$10.99

$

Usually ships in 2-4 days

0

3

Echo A035000040

BULB, PURGE

$18.99

$

In Stock, only 3 left!

0

4

Echo V470001650

PIPE, FUEL

$9.49

$

Usually ships in 2-4 days

0

5

Echo P100006972

HANDLE ASSY, REAR

Note: Includes Items 6-16

$108.99

$

Usually ships in 2-4 days

0

6

Echo A356000190

VENT ASSY

Note: +

$30.99

$

Usually ships in 2-4 days

0

7

Echo V471005401

PIPE, FUEL 3x5x255

Note: +

$2.49

$

Usually ships in 2-4 days

0

8

Echo V490000580

CLIP

Note: +

$1.49

$

In Stock, Qty 5

0

9

Echo V137000131

GROMMET, FUEL

Note: +

$1.99

$

Usually ships in 2-4 days

0

10

Echo V186000530

CONNECTOR, PIPE

Note: +

$1.99

$

In Stock, Qty 5

0

11

Echo V470002131

PIPE

Note: +

$7.49

$

In Stock, Qty 5

0

12

Echo V471003971

PIPE, FUEL 3x6x75

Note: +

$5.49

$

Usually ships in 2-4 days

0

13

Echo V186000510

CONNECTOR, PIPE

Note: +

$1.99

$

In Stock, Qty 18

0

14

Echo V470001991

PIPE, FUEL

Note: +

$8.49

$

In Stock, only 2 left!

0

15

Echo V490000500

CLIP 6

Note: +

$1.49

$

In Stock, Qty 20+

0

16

Echo A369000540

FILTER, FUEL

Note: +

$19.99

$

In Stock, Qty 11

0

17

Echo P100006351

CAP ASSY, FUEL

Note: Includes Items 18-19

$14.99

$

Usually ships in 2-4 days

0

18

Echo V581000600

O-RING 29

Note: +

$2.99

$

In Stock, Qty 10

0

19

Echo A365000050

CONNECTOR, CAP L= 60 MM

Note: +

$2.49

$

In Stock, Qty 20+

0
