EC 7500 - Shindaiwa 12" Cut-Off Saw (EPA Version) Handle, Throttle Lever Parts Diagram

12" Cut-Off Saw (EPA Version)

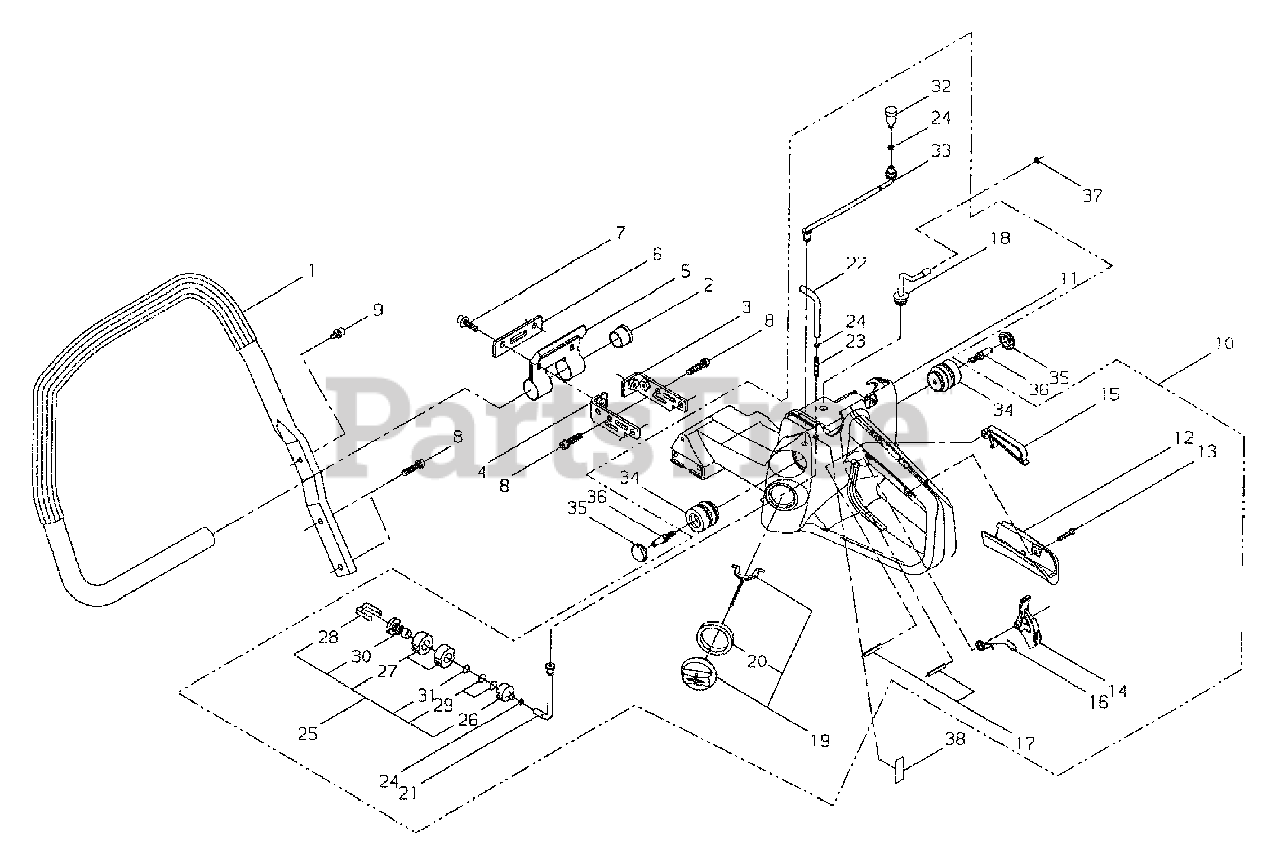

Handle, Throttle Lever Parts Diagram

  • Title

1

Echo 38010-32110

HANDLE - FRONT
(Superseded to C040000630)

$94.99

$

Usually ships in 2-4 days

0

2

Echo 38010-32440

CAP
(Superseded to V494000340)

$1.99

$

In Stock, only 1 left!

0

3

Echo 38010-32460

STAY - RIGHT
(Superseded to C519002430)

$6.99

$

Usually ships in 2-4 days

0

4

Echo 38010-32470

STAY - LEFT
(Superseded to C519002440)

$6.99

$

Usually ships in 2-4 days

0

5

Echo 38010-32330

BRACKET
(Superseded to C405000450)

$7.99

$

Usually ships in 2-4 days

0

6

Echo 38010-32480

PLATE
(Superseded to V150002570)

$2.49

$

In Stock, only 1 left!

0

7

Echo 11060-05204

SCREW - 5X20
(Superseded to V203001680)

$1.99

$

In Stock, only 2 left!

0

8

Echo 22169-32220

BOLT
(Superseded to V204000710)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 11022-05100

SCREW - 5X10
(Superseded to V203001710)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 38010-32025

HANDLE ASSY - REAR
(Superseded to C410000790)

$

$

Not available

11

Echo 38010-32211

HANDLE - REAR
(Superseded to C410000820)

$86.99

$

Usually ships in 2-4 days

0

12

Echo 22182-33230

GRIP - LOWER
(Superseded to C403000530)

$14.99

$

In Stock, only 1 left!

0

13

Echo 01280-04202

SCREW - 4X20 -- TAPPING
(Superseded to 01280-04222)

$0.99

$

In Stock, Qty 10

0

14

Echo 22182-33325

TRIGGER, THROTTLE
(Superseded to 22182-33326)

$4.49

$

In Stock, Qty 9

0

15

Echo 22182-33331

LEVER, TRIGGER LOCKOUT
(Superseded to 22182-33332)

$2.49

$

Usually ships in 2-4 days

0

16

Echo 22182-33340

SPRING, LEVER
(Superseded to V452000850)

$2.49

$

In Stock, Qty 10

0

17

Echo 1242040255

PIN - 4X25
(Superseded to 9306040250)

$0.99

$

In Stock, Qty 12

0

18

Echo 38010-32371

TUBE
(Superseded to V470001610)

$2.99

$

In Stock, only 1 left!

0

19

Echo 38010-32041

CAP ASSY
(Superseded to A033000250)

$11.99

$

In Stock, only 1 left!

0

20

Echo 38010-32271

GASKET, CAP
(Superseded to V107000090)

$4.99

$

In Stock, only 2 left!

0

21

Echo 38010-32381

TUBE
(Superseded to V470001620)

$2.99

$

Usually ships in 2-4 days

0

22

Echo 38010-32390

TUBE
(Superseded to V471002830)

$0.99

$

In Stock, Qty 5

0

23

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, Qty 20+

0

24

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

25

Echo 38010-32420

FUEL FILTER ASSY
(Superseded to A369000120)

$9.49

$

In Stock, Qty 20+

0

26

Echo 22128-85410

WEIGHT, FUEL FILTER
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

27

Echo 38010-32430

FILTER, FUEL
(Superseded to A371000030)

$14.99

$

Usually ships in 2-4 days

0

28

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.49

$

In Stock, Qty 20+

0

29

Echo 22118-85460

SCREEN, FILTER
(Superseded to A371000010)

$9.49

$

In Stock, Qty 20+

0

30

Echo 22128-85470

CASE, FILTER
(Superseded to A372000000)

$

$

Not available

31

Echo 22128-85480

RING, RETAINING
(Superseded to V583000200)

$9.49

$

In Stock, Qty 20+

0

32

Echo 20800-33910

VALVE
(Superseded to A356000140)

$7.99

$

Usually ships in 2-4 days

0

33

Echo 38010-32412

TUBE
(Superseded to V470001630)

$7.49

$

Usually ships in 2-4 days

0

34

Echo 72330-33710

CUSHION
(Superseded to V401000430)

$7.99

$

In Stock, only 1 left!

0

35

Echo 22150-33720

PLUG
(Superseded to V421000060)

$1.49

$

Usually ships in 2-4 days

0

36

Echo 22150-33770

BOLT, LIMITER
(Superseded to V203001660)

$1.99

$

Usually ships in 2-4 days

0

37

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

38

Echo 19401-00284

LABEL - INSTRUCTION
(Superseded to X524002620)

$1.99

$

Usually ships in 2-4 days

0
