EC21ASKAP - Exmark 21" Commercial Push Walk-Behind Mower, Kawasaki (SN: 850000 - 919999) (2010) Handle Assembly Parts Diagram

21" Commercial Push Walk-Behind Mower, Kawasaki

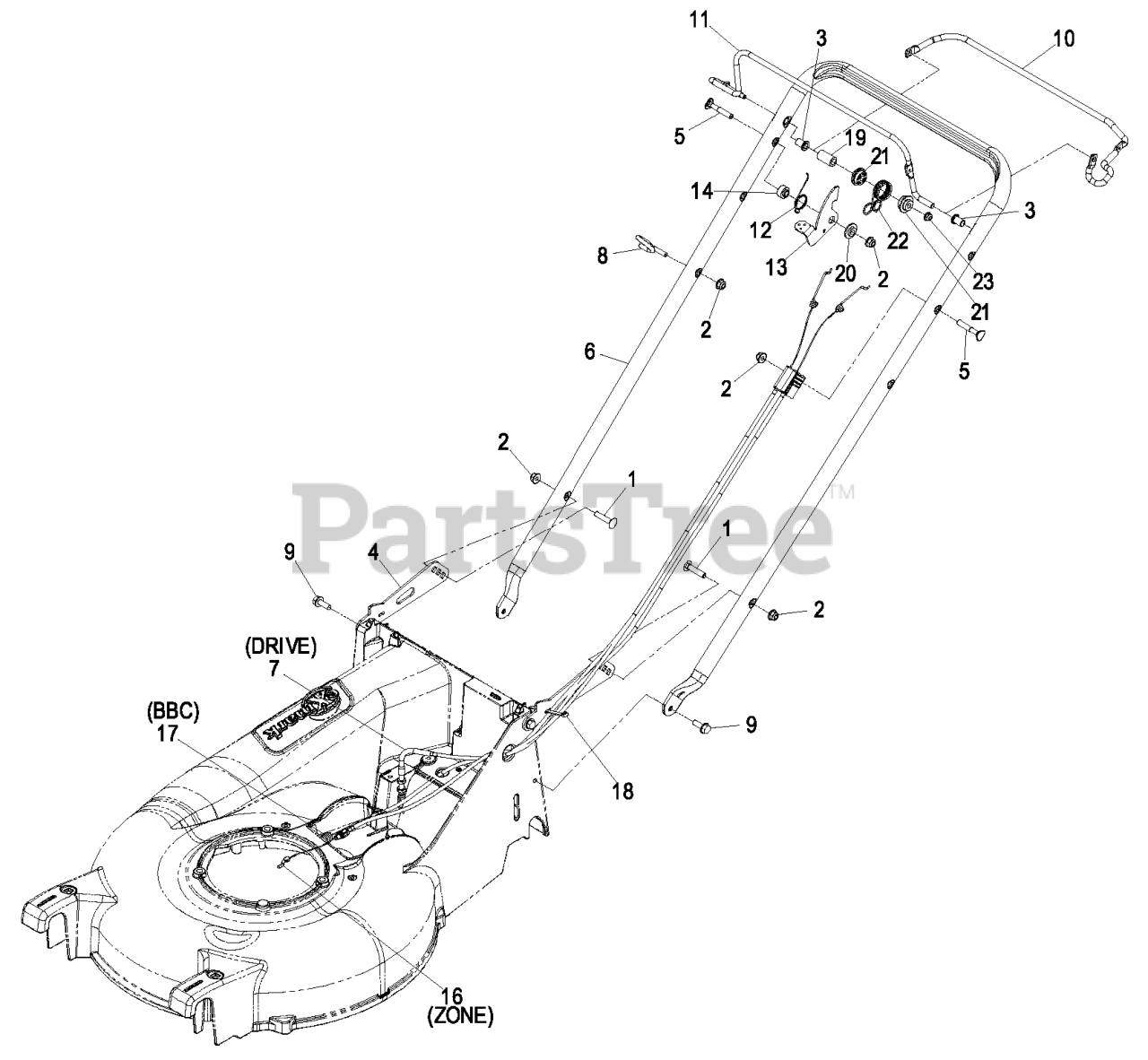

Handle Assembly Parts Diagram

  • Title

1

Exmark 33-5790

BOLT-CARR

$5.49

$

In Stock, only 2 left!

0

2

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-1478

BUSHING-HANDLEBAR

$6.99

$

In Stock, Qty 6

0

4

Exmark 109-9323-03

BRACKET,HANDLEBAR

$9.49

$

In Stock, only 2 left!

0

5

Exmark 112-8876

92-2260
(Superseded to 92-2260)

Note: For units without blade brake clutch.

$4.49

$

In Stock, Qty 20+

0

Exmark 112-8876

92-2260
(Superseded to 92-2260)

Note: For units with blade brake clutch.

$4.49

$

In Stock, Qty 20+

0

6

Exmark 116-0119-03

HANDLEBAR-P21

$167.99

$

In Stock, only 1 left!

0

7

Exmark 116-0904

126-7397
(Superseded to 126-7397)

Note: For self propelled units.

$47.99

$

In Stock, Qty 6

0

8

Exmark 116-1056

GUIDE,ROPE

Note: For units without blade brake clutch.

$6.99

$

In Stock, only 2 left!

0

9

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Exmark 109-8443

116-7907
(Superseded to 116-7907)

Note: For all units except EC21ASKAP, EC21ASKA, EC21ASHN.

$54.99

$

In Stock, only 3 left!

0

Exmark 116-2825

116-7907
(Superseded to 116-7907)

$54.99

$

In Stock, only 3 left!

0

11

Exmark 109-8442

BAIL

Note: For all units except EC21ASKAP, EC21ASKA, EC21ASHN.

$55.99

$

In Stock, only 2 left!

0

Exmark 116-2252

BAIL,OPC/BBC

Note: For EC21ASKAP, EC21ASKA, EC21ASHN units only

$39.99

$

Usually ships in 3-6 days

0

12

Exmark 109-9318

SPRING-LEVER, BBC

Note: For units with blade brake clutch.

$6.99

$

In Stock, Qty 5

0

13

Exmark 116-2998

LEVER-BBC

Note: For units with blade brake clutch.

$19.99

$

In Stock, only 2 left!

0

14

Exmark 116-2690

BUSHING-STEPPED

Note: For units with blade brake clutch.

$14.99

$

In Stock, only 4 left!

0

16

Exmark 116-0898

116-4171
(Superseded to 116-4171)

$32.99

$

Usually ships in 3-6 days

0

Exmark 116-0905

CABLE-ZONE KAWASAKI

Note: (Kawasaki Non-BBC Units)

$41.99

$

In Stock, only 1 left!

0

17

Exmark 116-0901

CABLE-BBC

$39.99

$

In Stock, Qty 9

0

18

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 18

0

19

Exmark 1-603401

SPACER

Note: For EC21KA, EC21KAX, EC21KACA, EC21KAY

$7.49

$

In Stock, only 2 left!

0

20

Exmark 105-3006

WASHER-STEPPED

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 109-8457

BUSHING-SPRING, PIVOT

Note: For units with blade brake clutch.

$6.99

$

In Stock, Qty 8

0

22

Exmark 109-7287

KIT-BBC RETURN

Note: For units with blade brake clutch.

$13.99

$

Usually ships in 3-6 days

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
