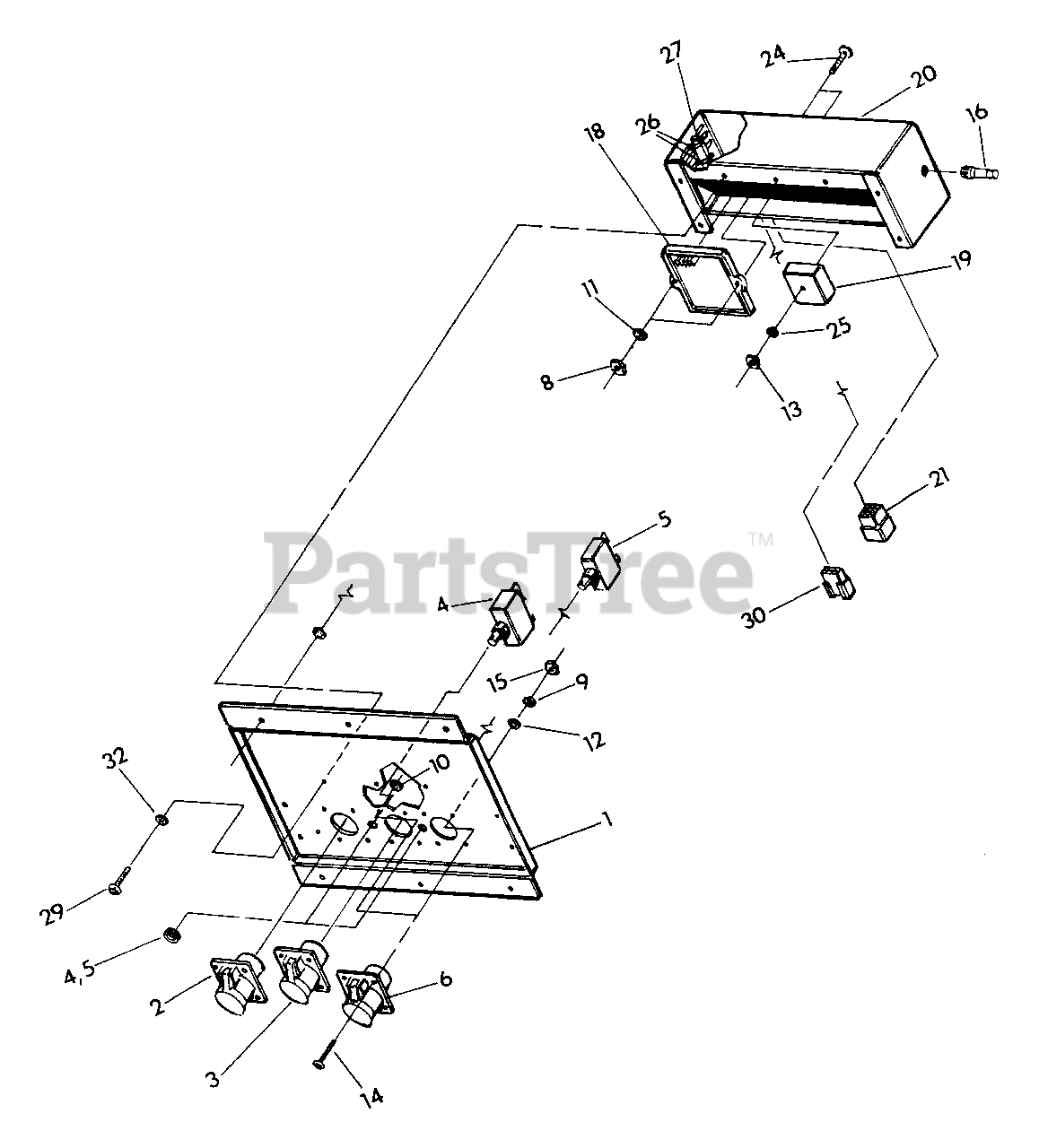

EC4000D (9219-0) - Generac 4,000 Watt Portable Generator Control Panel (10/95) Parts Diagram

4,000 Watt Portable Generator

Control Panel (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 82441

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 83705

115 volts, 32 amp Outlet

$

$

Currently unavailable

3

Briggs & Stratton 83707

115 volts, 16 amp Outlet

$

$

Currently unavailable

4

75207A

30 amp Circuit Breaker

$

$

Not available

5

Briggs & Stratton 75207D

20 amp Circuit Breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 83706

230 volts, 16 amp Outlet
(Superseded to 83706GS)

$35.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22158

No. 10-32 Hex Nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22152

No. 10 Lock Washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23897

No. 10 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22188

No. 6-32 Hex Nut

$

$

Currently unavailable

14

Briggs & Stratton 76040

M5-0.8 x 16mm Phillips Head Machine Screw
(Superseded to 76040GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 51716

M5-0.8 Hex Nut
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 34303

Starting Switch

$

$

Currently unavailable

18

Briggs & Stratton 74074

AC Voltage Regulator

$

$

Currently unavailable

19

Briggs & Stratton 40366

120 volts AC Relay
(Superseded to 7040604YP)

$18.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 83628

Control Panel Back

$

$

Currently unavailable

21

Briggs & Stratton 63993

9-pin Connector

$

$

Currently unavailable

22

Briggs & Stratton 74094

1/4" Y-Connector
(Superseded to 74094GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 37554A

No. 3 1000mm long Sleeving

$

$

Currently unavailable

24

Briggs & Stratton 33534

No. 10-32 x 1-1/8" Pan Head Machine Screw

$

$

Currently unavailable

25

Briggs & Stratton 22155

No. 6 Lock Washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 28739A

Tie Wrap
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 77244

Field Boost Assembly

$

$

Currently unavailable

28

Briggs & Stratton 74655

3/16" Y-Connector

$

$

Currently unavailable

29

Briggs & Stratton 63036

No. 8-18 x 1/4" Crimptite Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 22694

Black Receptacle Housing
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 22365

No. 8 Shakeproof Washer
(Superseded to 5022365)

$16.99

$

Usually ships in 2-12 days

0
