EC6400 (9201-0) - Generac 6,400 Watt Portable Generator Alternator No. 80836 Parts Diagram

6,400 Watt Portable Generator

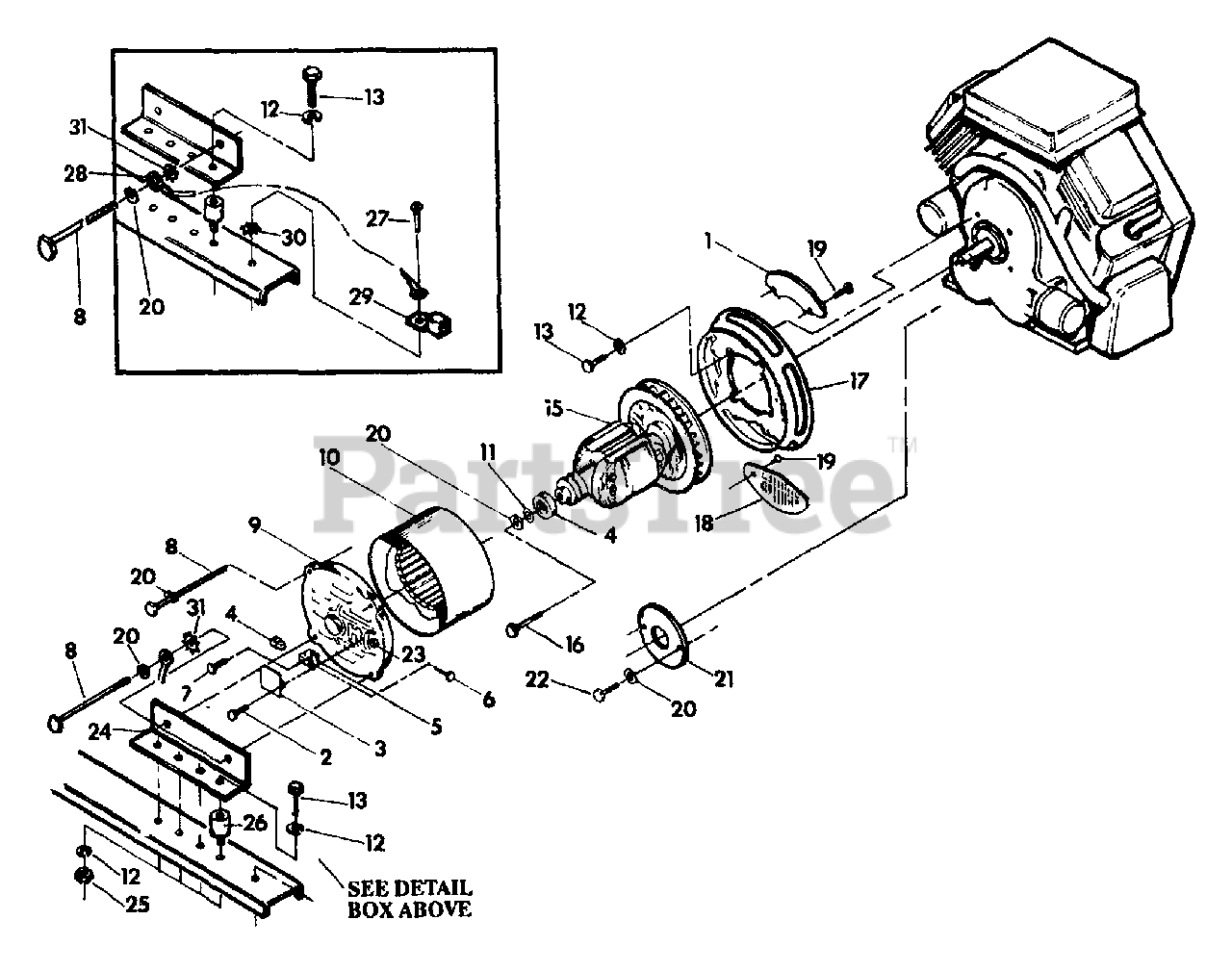

Alternator No. 80836 Parts Diagram

  • Title

1

Briggs & Stratton 71791

Cover Plate

$

$

Not available

2

Briggs & Stratton 26902

No. 8-32 x 1/4" Screw

$

$

Not available

3

Briggs & Stratton 43844

Inspection Cover
(Superseded to 7043844YP)

$34.99

$

In Stock, only 3 left!

0

4

Briggs & Stratton A24044A

Brush
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 23877D

Brush Holder
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 25105

No. 6-32 x 1/4" Screw
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 24488

No. 8-32 x 5/8" Screw

$

$

Currently unavailable

8

Briggs & Stratton 28128

5/16"-24 x 11-1/2" Capscrew

$

$

Currently unavailable

9

Briggs & Stratton 49410

Rear Bearing Carrier
(Superseded to 49410AGS)

$136.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 78367

Stator Assembly
(Superseded to 78367GS)

$2140.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 50190

5/16" Flat Washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 22237

3/8" Lock Washer

$

$

Not available

13

Briggs & Stratton 23152

3/8"-16 x 3/4" Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 24049

Bearing

$

$

Not available

15

Briggs & Stratton 78387

Rotor Assembly

$

$

Currently unavailable

16

Briggs & Stratton 28038

5/16"-24 x 10-1/8" Capscrew

$

$

Currently unavailable

17

Briggs & Stratton 78806

Adapter Casting
(Superseded to BB2700GS)

$182.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 55275

Fan Guard

$

$

Not available

19

Briggs & Stratton 46852

No. 10-32 x 1/4" Screw

$

$

Not available

20

Briggs & Stratton 22129

5/16" Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 55277

Center Guard

$

$

Not available

22

Briggs & Stratton 22336

5/16"-24 x 3/4" Capscrew

$

$

Not available

23

Briggs & Stratton 38057

Rubber Grommet
(Superseded to 38057GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 77303

Alternator Support

$

$

Currently unavailable

25

Briggs & Stratton 22241

3/8"-16 Hex Nut

$

$

Not available

26

Briggs & Stratton 35097

Vibration Mount
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 56892

No. 10-24 x 3/8" Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 11753621

Ground Wire (#0)

$

$

Currently unavailable

29

Briggs & Stratton 25433

Solderless Lug

$

$

Not available

30

Briggs & Stratton 22261

3/8" Shakeproof Washer
(Superseded to 22261GS)

$3.49

$

In Stock, only 2 left!

0

31

Briggs & Stratton 26204

5/16" Shakeproof Washer
(Superseded to 26204GS)

$1.99

$

Usually ships in 2-12 days

0
