Echo ECCS-58V (107174021) - Echo Chainsaw, 58V Battery, Revision 05 (2019-02) General Assembly Parts Lookup with Diagrams

1

Echo 678339003

Flange Nut (5/16-18, Hex Hd. for Guide Bar)

$0.99

$

In Stock, Qty 20+

2

Echo 940851267

Chain Brake Label

$1.49

$

Usually ships in 2-4 days

3

Echo 612376002

Driving Adjustment Gear

$1.99

$

In Stock, Qty 7

4

Echo 694251002

Driven Adjustment Gear

$3.49

$

In Stock, Qty 14

5

Echo 900777001

Oil Cap Filter

$1.49

$

In Stock, Qty 14

6

Echo 635349002

Guide Plate

$1.49

$

In Stock, Qty 11

7

Echo 660922001

Screw (M4 x 12 mm, T20 Torx Hd.)

$1.49

$

In Stock, Qty 7

8

Echo 120545001

Volute & Wire Cover Assembly

$3.99

$

Usually ships in 2-4 days

9

Echo 313971001

Bar w/Graphics (16 in.)

(Superseded to 16A4CD3756C) 

$49.99

$

Usually ships in 2-4 days

10

Echo 681946001

Chain (16 in.)

$

Currently unavailable 

11

Echo 307450001

Oil Tank Assembly

$6.99

$

In Stock, Qty 5

12

Echo 580146001

Scabbard (16 in.)

$4.49

$

In Stock, only 1 left!

13

Echo 635335003

Guide Plate Bar

$1.49

$

In Stock, Qty 10

14

Echo 662064001

Screw (10-14 x 13 mm, T25 Torx Ch. Hd. )

$1.49

$

Usually ships in 2-4 days

15

Echo 662083001

Screw (M4-18 x 12 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

16

Echo 678061001

SPRING

$1.49

$

Usually ships in 2-4 days

17

Echo 636159001

E-RING

$1.49

$

In Stock, Qty 6

18

Echo 635367001

Cap Washer

$1.49

$

In Stock, Qty 8

19

Echo 612309002

Sprocket w/Drum

$9.49

$

In Stock, only 1 left!

20

Echo 662052001

Screw (M5 x 15 mm, T25 Torx Flange Hd.)

$1.49

$

Usually ships in 2-4 days

21

Echo 660610001

Screw (M4 x 9.5 mm, T20 Torx Truss Hd.)

$1.49

$

Usually ships in 2-4 days

22

Echo 309514001

Oil Pump Assembly

$16.99

$

Usually ships in 2-4 days

23

Echo 563438001

Outlet Tube

$1.99

$

In Stock, only 2 left!

24

Echo 941768034

Icon Label

$1.49

$

Usually ships in 2-4 days

25

Echo 120539002

Housing Assembly (Inc. Key Nos. 24 and 49)

$53.99

$

Usually ships in 2-4 days

26

Echo 307448001

Brake Bend Assembly

$2.99

$

Usually ships in 2-4 days

27

Echo 694415001

Chain Brake Spring

$1.49

$

Usually ships in 2-4 days

28

Echo 662113001

Screw (M5 x 10 mm, T25 Torx Hd. T.F.)

$1.49

$

Usually ships in 2-4 days

29

Echo 120559002

Front Handle Guard (Inc. Key No. 2)

$9.49

$

Usually ships in 2-4 days

30

Echo 660608001

Screw (M8 x 12 mm, T20 Torx Truss Hd.)

$1.49

$

Usually ships in 2-4 days

31

Echo 662199001

Screw (M4-18 x 10 mm, T20 Torx Washer Hd.)

$1.49

$

Usually ships in 2-4 days

32

Echo 900876003

TERMINAL

$1.49

$

Usually ships in 2-4 days

33

Echo 120542003

Battery Carriage and Circuit Board Assembly

$110.99

$

Usually ships in 2-4 days

34

Echo 694071001

Oil Pump Spring

$1.49

$

Usually ships in 2-4 days

35

Echo 635321001

C-Ring

$1.49

$

Usually ships in 2-4 days

36

Echo 307415002

Motor Assembly (Inc. Key Nos. 34-35)

$

Currently unavailable 

37

Echo 678602002

Guard Bushing

$1.49

$

Usually ships in 2-4 days

38

Echo 678587001

Washer (ID6.8 x OD16 x 1.5t)

$1.49

$

Usually ships in 2-4 days

39

Echo 671075001

E-RING

$0.99

$

In Stock, Qty 6

40

Echo 760579002

Switch

$9.49

$

Usually ships in 2-4 days

41

Echo 662053002

Screw (M5 x 25.5 mm, T25 Torx Rd. Hd.)

$1.49

$

Usually ships in 2-4 days

42

Echo 528378001

Front Handle

$8.99

$

In Stock, only 2 left!

43

Echo 307447001

Brake bend Connector Assembly

$2.99

$

Usually ships in 2-4 days

44

Echo 563594001

Oil Tank Gasket

$1.49

$

In Stock, Qty 10

45

Echo 307451001

Oil Cap Assembly

$2.49

$

In Stock, Qty 19

46

Echo 662051002

Screw (M5 x 17.5 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, Qty 8

47

Echo 563623001

Wrench Spring Plate

$1.49

$

Usually ships in 2-4 days

48

Echo 612574001

WRENCH

$2.99

$

Usually ships in 2-4 days

49

Echo 941588254

Data Label

$1.49

$

Usually ships in 2-4 days

50

Echo 120543001

Side Cover Assembly

(Superseded to 528370001) 

$6.99

$

Usually ships in 2-4 days

51

Echo 120544001

Chain Brake Assembly

$2.49

$

In Stock, only 2 left!

52

Echo 120546001

Trigger Assembly

$2.49

$

Usually ships in 2-4 days

53

Echo 694143003

Compression Spring

$0.99

$

Usually ships in 2-4 days

Echo 130345021DG9

EU, ECHO Battery Pack (ECBP-58V40, Not Included)

$

Currently unavailable 

Echo 140330009

Charger 220~240V-AC 50V-DC 5A (ECHO ECBC-58VEU, Not Included)

$

Currently unavailable 

Echo 140330010

Charger 220~240V-AC 50V-DC 5A (ECHO ECBC-58VUK, Not Included)

$

Currently unavailable 

Echo 961193013

Operator's Manual

$14.99

$

Usually ships in 2-4 days

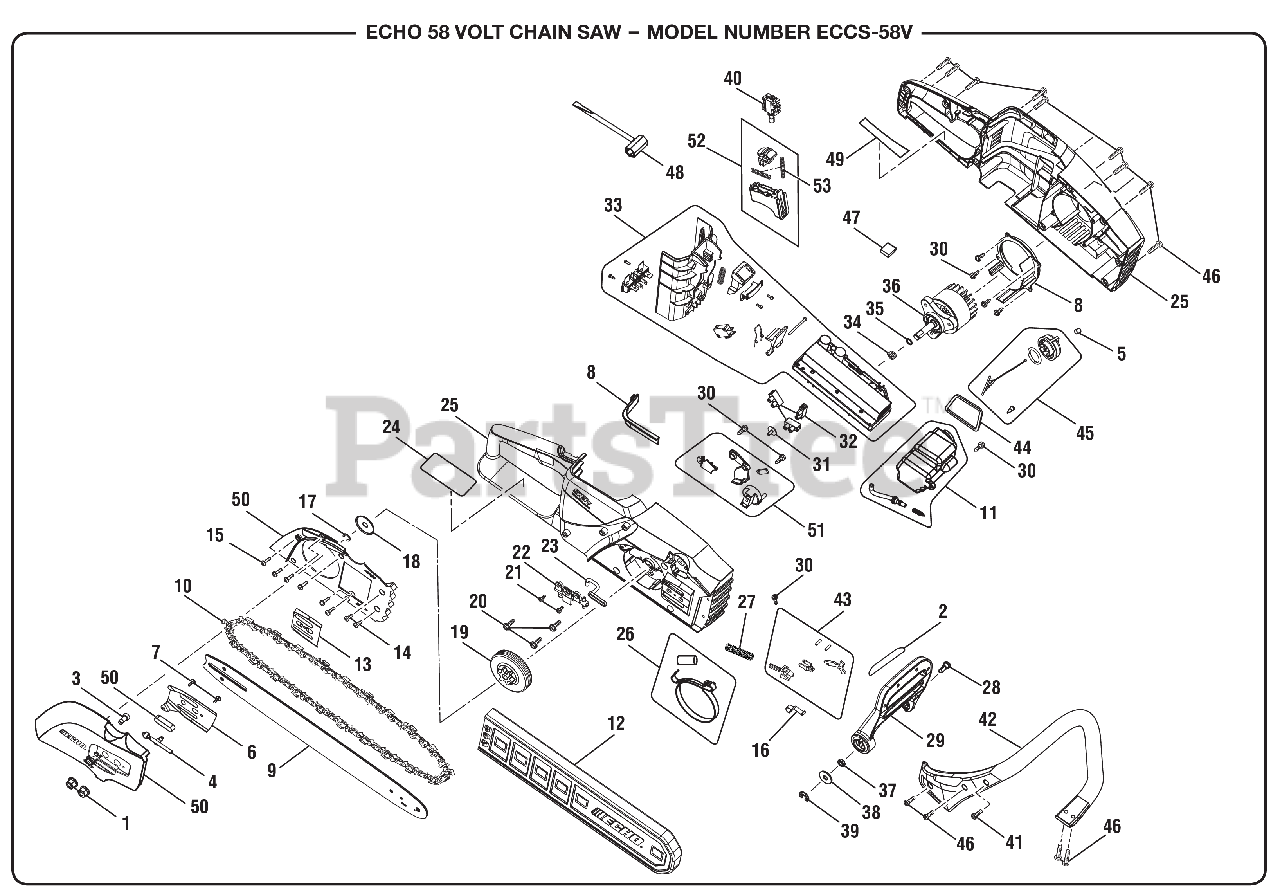

ECCS-58V (107174021) - Echo Chainsaw, 58V Battery, Revision 05 (2019-02) General Assembly Parts Diagram

General Assembly Parts Diagram
