ECKA30 - Exmark 30" Commercial Walk-Behind Mower, Kawasaki (SN: 313000000 - 313999999) (2013) Spindle and Blade Assembly Parts Diagram

30" Commercial Walk-Behind Mower, Kawasaki

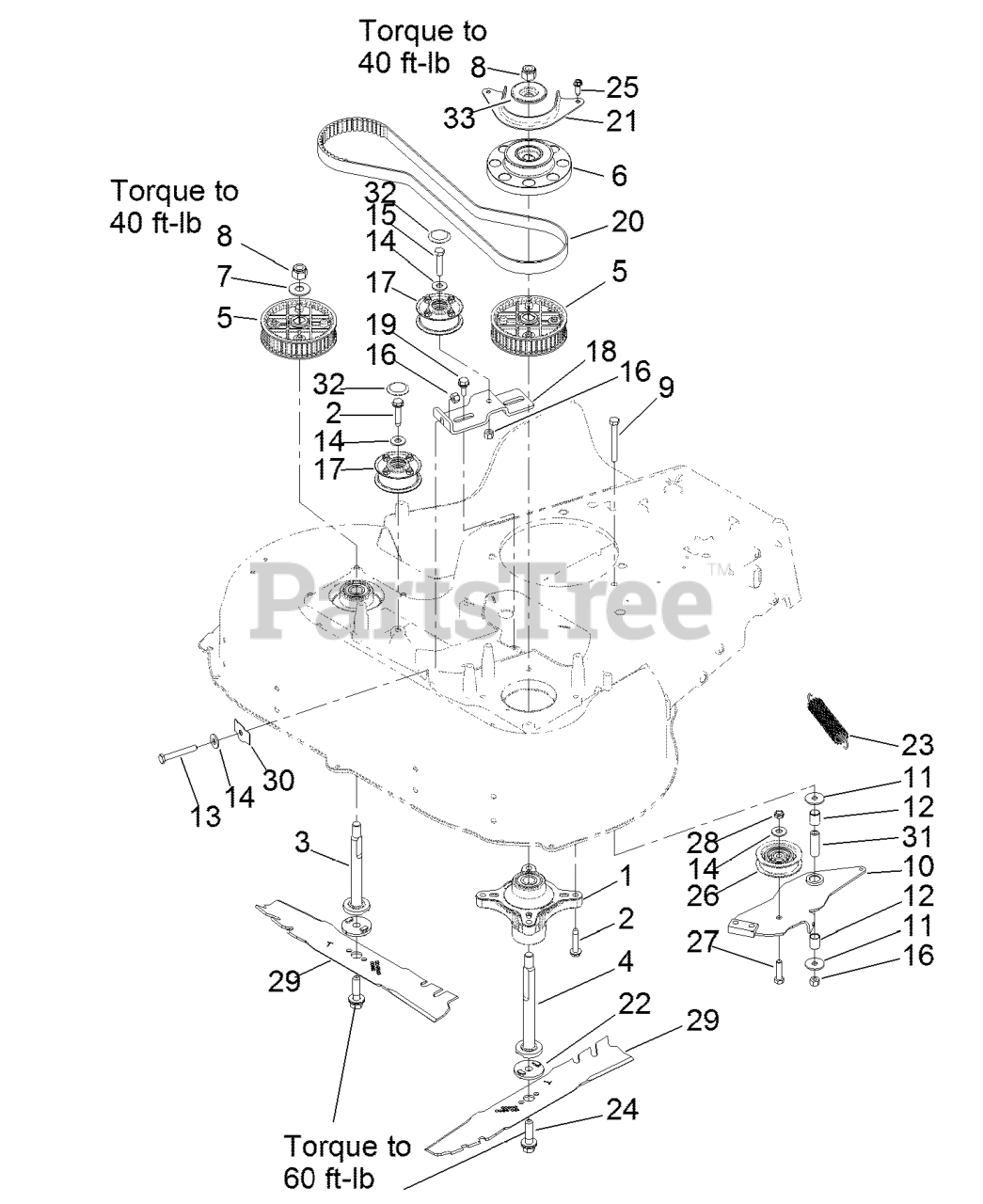

Spindle and Blade Assembly Parts Diagram

  • Title

1

Exmark 121-9107

SPINDLE ASM

$74.99

$

In Stock, Qty 20+

0

2

Exmark 32144-57

SCREW

$2.49

$

In Stock, Qty 20+

0

3

Exmark 120-5234

SHAFT-SPINDLE
(Superseded to 139-6612)

$28.99

$

In Stock, Qty 14

0

4

Exmark 120-5235

SHAFT-SPINDLE
(Superseded to 139-6613)

$29.99

$

In Stock, Qty 20+

0

5

Exmark 121-9100

SPROCKET

$52.99

$

In Stock, Qty 20+

0

6

Exmark 120-3334

PULLEY-BRAKE, SPINDLE

$47.99

$

In Stock, Qty 18

0

7

Exmark 109-9505

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

8

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

9

Exmark 322-13

SCREW-HH

$3.49

$

In Stock, Qty 19

0

10

Exmark 121-5796

133-2610
(Superseded to 133-2610)

$67.99

$

In Stock, Qty 20+

0

11

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

12

Exmark 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 20+

0

13

Exmark 9114524

BOLT-TAP, HH
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Exmark 125-2532

126-7890
(Superseded to 131-4529)

$29.99

$

In Stock, Qty 20+

0

18

Exmark 120-3348

BRACKET-IDLER
(Superseded to 145-4016)

$9.49

$

In Stock, Qty 10

0

19

Exmark 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

20

Exmark 120-3335

BELT-SYNCHRONOUS
(Superseded to 120-3335-SL)

$82.99

$

Usually ships in 3-6 days

0

21

Exmark 120-5245-03

GUIDE-BELT, SPINDLE

$7.99

$

In Stock, Qty 20+

0

22

Exmark 120-5236

ADAPTER-BLADE

$7.99

$

In Stock, Qty 20+

0

23

Exmark 121-5808

SPRING-EXTENSION, BRAKE

$17.99

$

In Stock, Qty 14

0

24

Exmark 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

26

Exmark 120-7082

PULLEY-IDLER

$23.99

$

In Stock, Qty 20+

0

27

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

28

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

29

Exmark 116-6358-03

BLADE-ROTARY

$25.99

$

In Stock, Qty 20+

0

30

Exmark 121-2336

SPRING-FLAT

$7.99

$

In Stock, Qty 20+

0

31

Exmark 121-5812

131-0823
(Superseded to 131-0823)

$13.99

$

In Stock, Qty 20+

0

32

Exmark 125-2533

PLUG-CAP

$2.99

$

In Stock, only 1 left!

0

33

Exmark 125-2544

DISCONTINUED -SEE SERVICE

$

$

Not available
