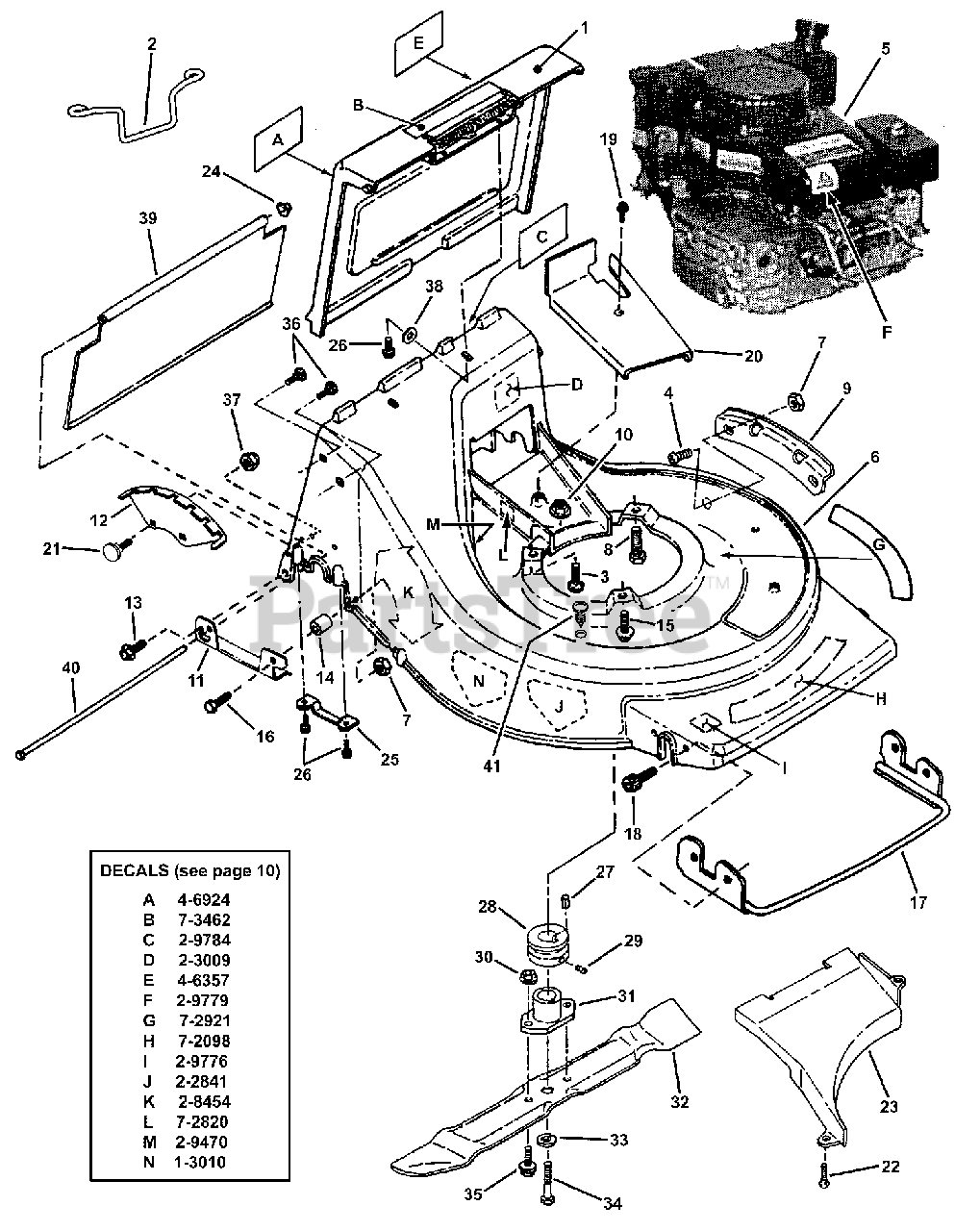

ECLP 21601RV (84718) - Snapper 21" Walk-Behind Mower, 6hp ENGINE, CUTTING DECK & BLADE Parts Diagram

21" Walk-Behind Mower, 6hp

ENGINE, CUTTING DECK & BLADE Parts Diagram

  • Title

1

Snapper 7052881

ASSEMBLY, Discharge Door (Commercial)
(Superseded to 7052881YP)

$75.99

$

In Stock, only 1 left!

0

2

Snapper 7072143

GUIDE, Belt
(Superseded to 7072143YP)

$28.99

$

Usually ships in 2-12 days

0

3

Snapper 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock GR5
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

4

Snapper 7091696

SCREW, 1/4-20 x 5/8" Phillips Truss Head Machine
(Superseded to 7091696YP)

$3.49

$

Usually ships in 2-12 days

0

5

ENGINE, Robin 6 HP Mod EH18V

$

$

Not available

ENGINE, Honda 5.5 HP Comm. Mod GXV160 Type K1A1ASE

$

$

Not available

6

Snapper 7061962

DECK, 21" Cast Aluminum Short (Red)
(Superseded to 7061962YP)

$1025.99

$

Usually ships in 2-12 days

0

7

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Face Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

9

Snapper 7034734

GUARD, Wear
(Superseded to 7034734YP)

$26.99

$

Usually ships in 2-12 days

0

10

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock GR5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7042999

BRACKET, R.H. Stiffener w/tab
(Superseded to 7042999YP)

$64.99

$

Usually ships in 2-12 days

0

Snapper 7043790

BRACKET, L.H.Stiffener (not shown)
(Superseded to 7043790YP)

$63.99

$

Usually ships in 2-12 days

0

12

Snapper 7034692

PLATE, Height Adjust
(Superseded to 7034692YP)

$22.99

$

Usually ships in 2-12 days

0

13

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Face Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7042988

SPACER, Stiffener
(Superseded to 7042988YP)

$28.99

$

Usually ships in 2-12 days

0

15

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 16

0

16

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap GR5
(Superseded to 703820)

$3.99

$

In Stock, Qty 5

0

17

Snapper 7041736

WELDMENT, Front Bumper
(Superseded to 7041736YP)

$79.99

$

Usually ships in 2-12 days

0

18

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7091201

SCREW, #10-24 x 1-1/2" Slotted Hex Washer Head Self-Tap
(Superseded to 7091201YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7046506

COVER, Ground Speed Drive Belt

$

$

Not available

21

Snapper 7091711

BOLT, #10-24 x 5/8" Flat Head Carriage
(Superseded to 7091283YP)

$4.49

$

In Stock, only 4 left!

0

22

Snapper 7091075

SCREW, #10-24 x 5/8" Slotted Hex Washer Head Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 9

0

23

Snapper 7041750

WELDMENT, Baffle
(Superseded to 7041750YP)

$106.99

$

Usually ships in 2-12 days

0

24

Snapper 7091892

PUSHNUT, 1/4 Black
(Superseded to 7091892YP)

$3.99

$

In Stock, only 1 left!

0

25

Snapper 7033732

SUPPORT, Rear Axle
(Superseded to 7033732YP)

$9.99

$

Usually ships in 2-12 days

0

26

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Face Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, only 1 left!

0

27

Snapper 7016755

KEY, 1/4" Square x 3/4"
(Superseded to 7016755YP)

Note: for Robin engine

$4.99

$

Usually ships in 2-12 days

0

Snapper 7010783

KEY, #505 Hi-Pro
(Superseded to 7010783YP)

Note: for Honda engine

$3.99

$

In Stock, only 2 left!

0

28

Snapper 7022106

PULLEY, Traction Drive
(Superseded to 7022106YP)

Note: for Robin engine

$52.99

$

Usually ships in 2-12 days

0

Snapper 7021822

PULLEY, Traction Drive
(Superseded to 7021822YP)

Note: for Honda engine

$34.99

$

Usually ships in 2-12 days

0

29

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Head
(Superseded to 7090201SM)

$

$

Not available

30

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7026631

HUB, Blade Drive, 25mm Internal Dia.

Note: for Robin engine

$

$

Not available

Snapper 7026630

HUB, Blade Drive, 7/8" Internal Dia.
(Superseded to 7026630YP)

Note: for Honda engine

$13.99

$

Usually ships in 2-12 days

0

32

Snapper 7026428

BLADE, 21" Bagging
(Superseded to 7026428BZYP)

$29.99

$

In Stock, only 1 left!

0

33

Snapper 7079268

WASHER, 3/8" Split Lock (Heavy)
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

34

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap GR5
(Superseded to 703866)

$4.49

$

In Stock, Qty 8

0

35

Snapper 7091328

BOLT, 3/8-16 x 1-1/4" Hex Flange Lock
(Superseded to 703871)

Note: Was 90143

$4.99

$

In Stock, only 2 left!

0

36

Snapper 7091714

BOLT, 5/16-18 x 1" Round Head Carriage GR5
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

37

Snapper 7091267

NUT, #10-24 Hex Center Lock
(Superseded to 7091267SM)

$3.99

$

In Stock, Qty 6

0

38

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 12

0

39

Snapper 7043870

SHIELD, Trailing, Commercial Cast
(Superseded to 7043870YP)

$28.99

$

Usually ships in 2-12 days

0

40

Snapper 7043808

ROD, Trailing Shield Pivot (1/4" Dia.)
(Superseded to 7043808YP)

$56.99

$

Usually ships in 2-12 days

0

41

Snapper 7073293

PLUG, Hole (Polyethylene)
(Superseded to 7073293YP)

$2.99

$

Usually ships in 2-12 days

0
