ECLP 21602KWV (85904) - Snapper 21" Walk-Behind Mower, 6.5hp HANDLES & CONTROLS Parts Diagram

21" Walk-Behind Mower, 6.5hp

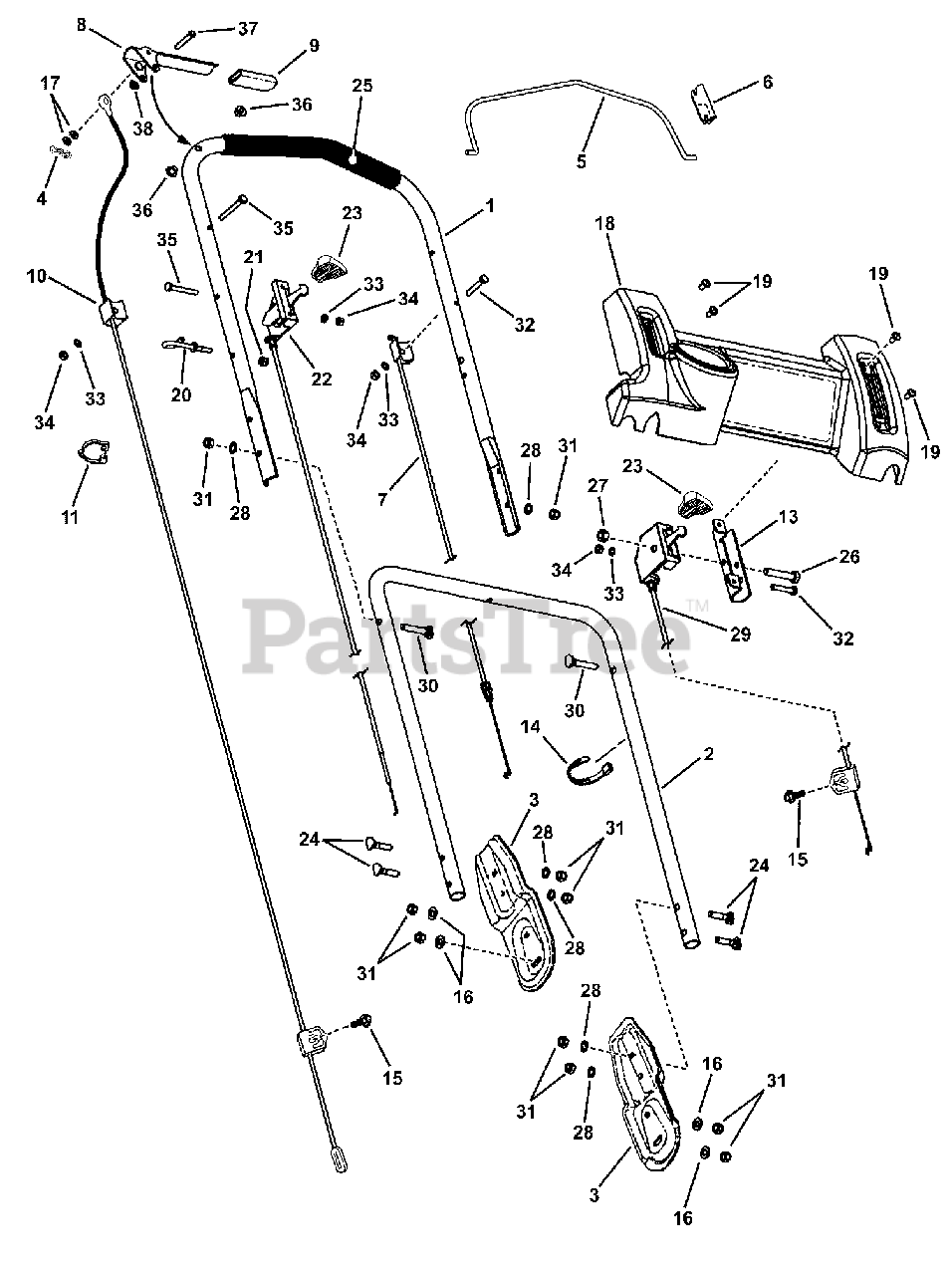

HANDLES & CONTROLS Parts Diagram

  • Title

1

Snapper 7074411

HANDLE, Upper
(Superseded to 7106258AYP)

$

$

Not available

2

Snapper 7074156

HANDLE, Middle
(Superseded to 7106232AYP)

$

$

Not available

3

Snapper 7034864

BRACKET, Handle

$

$

Not available

4

Snapper 7073821

COTTER PIN, Bow Tie Locking
(Superseded to 7073821YP)

$3.49

$

In Stock, Qty 17

0

5

Snapper 7074418

BAIL, OPC Control
(Superseded to 7074418AYP)

$34.99

$

In Stock, only 1 left!

0

6

Snapper 7034872

CLIP, Zone Control
(Superseded to 7034872YP)

$5.99

$

In Stock, only 1 left!

0

7

Snapper 7074141

CABLE, Zone Control
(Superseded to 7074141YP)

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 7046520

ASSEMBLY, Handle Clutch
(Superseded to 7046520YP)

$32.99

$

Usually ships in 2-12 days

0

9

Snapper 7028407

GRIP, International Symbol
(Superseded to 7028407YP)

$5.49

$

In Stock, Qty 9

0

10

Snapper 7046518

CABLE, Clutch (Adjustable)
(Superseded to 7046518YP)

$36.99

$

Usually ships in 2-12 days

0

11

Snapper 7026219

CLAMP, 7/8" Double Cable
(Superseded to 7026219YP)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

Note: not shown

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 7073064

BRACKET, Shift
(Superseded to 7073064YP)

$24.99

$

Usually ships in 2-12 days

0

14

Snapper 7024641

WIRE TIE, 1.29" Long Black
(Superseded to 7024641YP)

$5.99

$

In Stock, only 1 left!

0

15

Snapper 7091075

SCREW, #10-24 x 5/8" Slotted Hex Washer Head Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 9

0

16

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7091552

WASHER, 7/32" Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 5

0

18

Snapper 7074140

CONTROL PANEL (w/o El. Switch Hole)
(Superseded to 7074140YP)

$70.99

$

Usually ships in 2-12 days

0

19

Snapper 7091200

SCREW, 1/4-20 x 1/2" Pan Head Self-Tap (Torx)
(Superseded to 7900067YP)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7028488

ROPE GUIDE (1/4-20 threads)
(Superseded to 7028488MA)

$6.49

$

Usually ships in 2-12 days

0

21

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7074138

THROTTLE CONTROL, 6.0 KWV (53.25" Long)
(Superseded to 7074138YP)

$54.99

$

In Stock, only 1 left!

0

23

Snapper 7075308

THROTTLE KNOB
(Superseded to 7075308YP)

$11.99

$

In Stock, only 1 left!

0

24

Snapper 7091190

BOLT, 5/16-18 x 1-1/2" Curved Head Carriage
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

25

Snapper 7023810

FOAM GRIP, 18.75"
(Superseded to 7023810YP)

$8.49

$

Usually ships in 2-12 days

0

26

Snapper 7091088

SCREW, 3/8-16 x 2" Hex Head Self-Tap
(Superseded to 7091088YP)

$6.49

$

Usually ships in 2-12 days

0

27

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, Qty 18

0

28

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7029369

CONTROL, Speed Select
(Superseded to 7029369YP)

$136.99

$

Usually ships in 2-12 days

0

30

Snapper 7091740

SCREW, 5/16-18 x 2" Square Neck Curved Head
(Superseded to 7091740SM)

Note: Was 7091189

$3.49

$

In Stock, Qty 11

0

31

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

32

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap GR 5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

33

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 7091023

$4.49

$

In Stock, Qty 13

0

34

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 7091100

$3.49

$

In Stock, only 4 left!

0

35

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 7014343

BUSHING, .27 x .35 x .4 Flange
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7023792

PIN, 1/4 x 1-1/2"
(Superseded to 704031)

$3.99

$

In Stock, Qty 15

0

38

Snapper 7091020

PUSHNUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0
