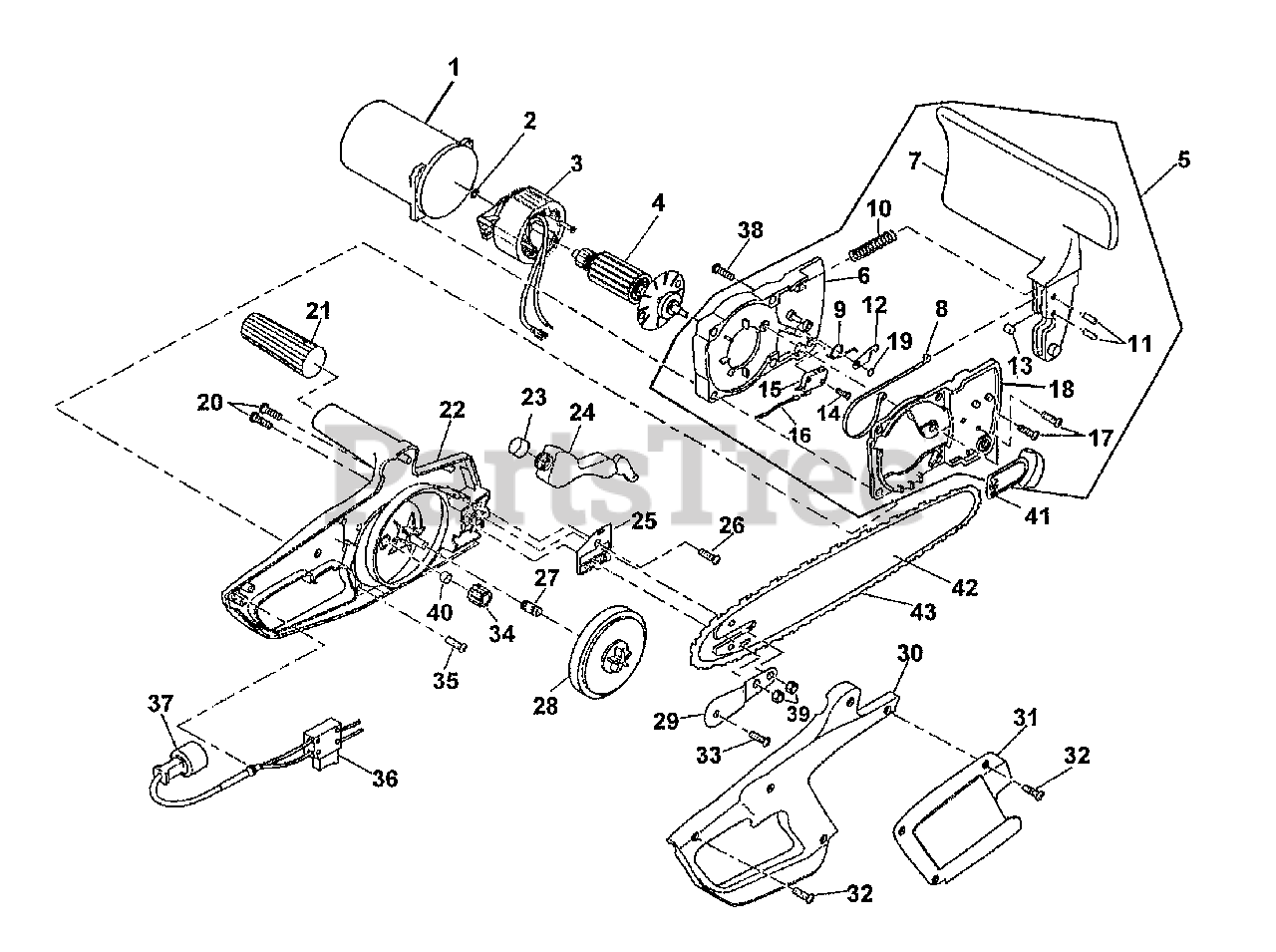

ECS-3000 - Echo Electric Chainsaw (SN: 300 & Above) Unit Complete Parts Diagram

Electric Chainsaw

Unit Complete Parts Diagram

  • Title

1

Echo 107605304

CASE, MOTOR
(Superseded to Discontinued)

$

$

Not available

2

Echo 100058059

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

3

Echo 110055101

FIELD
(Superseded to Discontinued)

$

$

Not available

4

Echo 110055002

ARMATURE

Note: (ECS-3000)

$91.99

$

Usually ships in 2-4 days

0

4

Echo 110055001

ARMATURE
(Superseded to Discontinued)

Note: (ECS-2000)

$

$

Not available

5

Echo 110025902

CHAIN BRAKE ASSY
(Superseded to Discontinued)

$

$

Not available

6

Echo 110021801

HOUSING, CHAIN BRAKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 110021701

GUARD, HAND

$12.99

$

Usually ships in 2-4 days

0

8

Echo 110025501

BAND, BRAKE
(Superseded to Discontinued)

$

$

Not available

9

Echo 110026101

SPRING
(Superseded to Discontinued)

$

$

Not available

10

Echo 110045501

SPRING
(Superseded to Discontinued)

$

$

Not available

11

Echo 110025601

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

12

Echo 110025301

LATCH, BRAKE
(Superseded to Discontinued)

$

$

Not available

13

Echo 110025401

BUSHING
(Superseded to Discontinued)

$

$

Not available

14

Echo 110016001

SCREW - 4-17 X 5/8"
(Superseded to Discontinued)

$

$

Not available

15

Echo 110026201

SWITCH

$13.99

$

Usually ships in 2-4 days

0

16

Echo 110026302

WIRE ASSY
(Superseded to Discontinued)

$

$

Not available

17

Echo 110015901

SCREW - 10-32 X 7/8"
(Superseded to Discontinued)

$

$

Not available

18

Echo 110021901

COVER, CHAIN BRAKE
(Superseded to Discontinued)

$

$

Not available

19

Echo 110045401

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

20

Echo 110027901

BOLT - 1/4-20 X 1-3/8
(Superseded to Discontinued)

$

$

Not available

21

Echo 110251501

GRIP, FOAM
(Superseded to Discontinued)

$

$

Not available

22

Echo 109703411

GEAR CASE ASSY

$23.99

$

Usually ships in 2-4 days

0

23

Echo 107908401

CAP, OIL
(Superseded to 107908402)

$

$

Not available

24

Echo 107908601

TANK, OIL
(Superseded to 107908602)

$

$

Not available

25

Echo 100077115

ADJUSTING PLATE ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo 100076906

SCREW

$1.49

$

Usually ships in 2-4 days

0

27

Echo 100075676

BEARING, SPROCKET
(Superseded to Discontinued)

$

$

Not available

28

Echo 100075752

GEAR - SPROCKET
(Superseded to Discontinued)

$

$

Not available

29

Echo 100077143

SUPPORT, SPROCKET
(Superseded to Discontinued)

$

$

Not available

30

Echo 107739912

COVER, SIDE
(Superseded to Discontinued)

$

$

Not available

31

Echo 110251001

COVER, SPROCKET

$14.99

$

Usually ships in 2-4 days

0

32

Echo 100059046

SCREW

$1.49

$

Usually ships in 2-4 days

0

33

Echo 100076905

SCREW
(Superseded to Discontinued)

$

$

Not available

34

Echo 100059608

GEAR - DRIVE

$7.49

$

Usually ships in 2-4 days

0

35

Echo 110016101

SCREW - 10-16 X 1-7/8"

$1.49

$

Usually ships in 2-4 days

0

36

Echo 100642004630

SWITCH, LOCK OFF
(Superseded to Discontinued)

$

$

Not available

37

Echo 100059604

CORD
(Superseded to Discontinued)

$

$

Not available

38

Echo 110016201

SCREW - 6-20 X 1-1/2"
(Superseded to Discontinued)

$

$

Not available

39

Echo 101416343

LOCKNUT - 1/4-20
(Superseded to Discontinued)

$

$

Not available

40

Echo 100075499

BEARING, NEEDLE

$3.99

$

Usually ships in 2-4 days

0

41

Echo 99988800016

KICK GUARD KIT

$

$

Currently unavailable

42

Echo 91VG45CQ

SAW CHAIN - 12" (30cm)
(Superseded to 91PX45CQ)

Note: For Model ECS-2000 Only

$27.99

$

Usually ships in 2-4 days

0

42

Echo 917056

SAW CHAIN - 91VG

Note: For Model ECS-3000 Only

$

$

Currently unavailable

43

Echo 120374001

GUIDE BAR - 12" (30cm)

Note: For Model ECS-2000 Only

$

$

Not available

43

Echo 160375001

GUIDE BAR - 16" (40cm)

Note: For Model ECS-3000 Only

$

$

Not available

44

Echo 109820701

BRUSH HOLDER ASSY

Note: NOT SHOWN

$34.99

$

Usually ships in 2-4 days

0

45

Echo 109997101

LABEL - WARNING
(Superseded to Discontinued)

Note: NOT SHOWN

$

$

Not available
