ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Side Discharge Chute Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

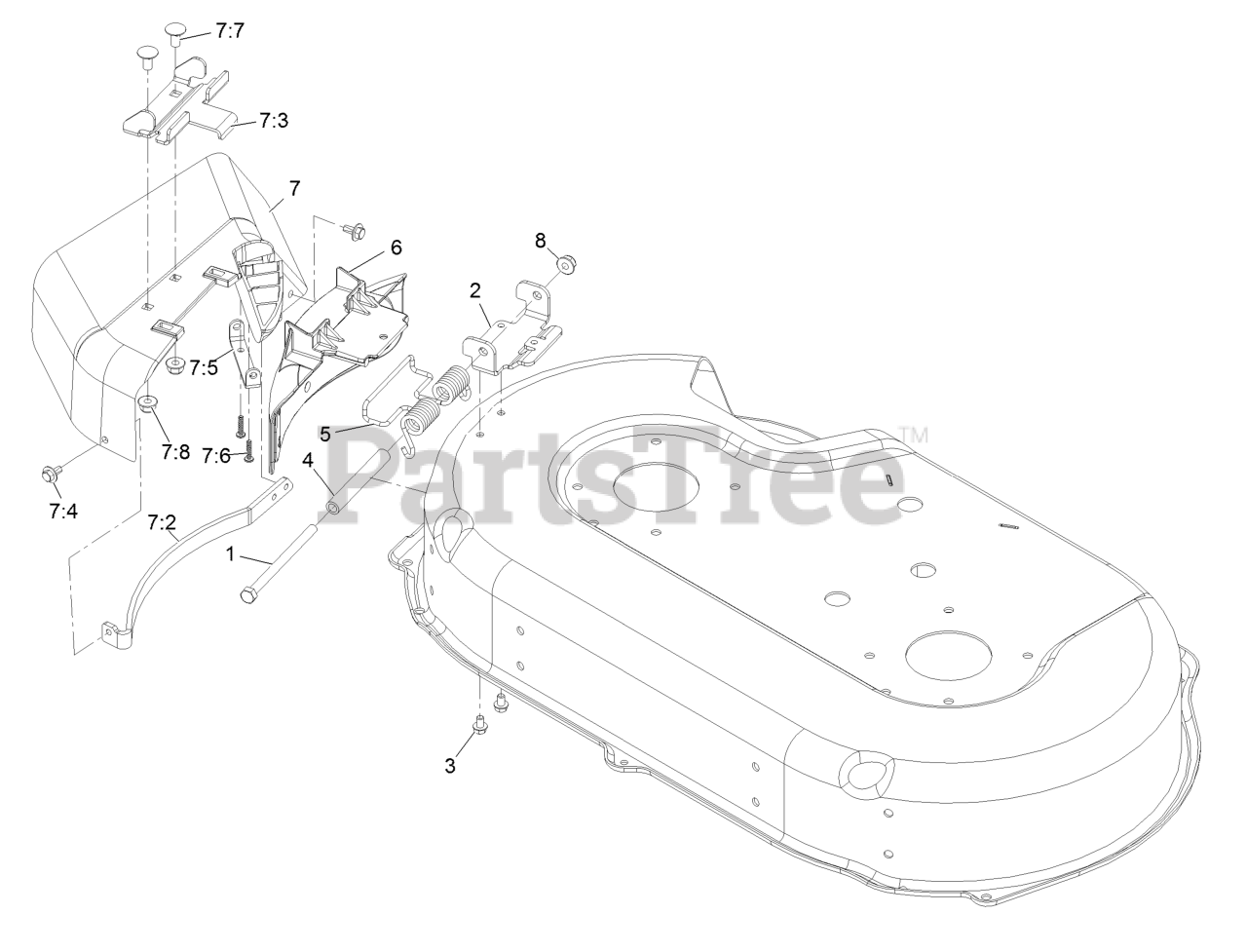

Side Discharge Chute Assembly Parts Diagram

  • Title

1

Exmark 322-38

Screw-HH 5/16-18 X 4 1/2

$6.49

$

Usually ships in 3-6 days

0

2

Exmark 121-9195

Hinge

$17.99

$

Usually ships in 3-6 days

0

3

Exmark 99-8445

Screw-HWH 1/4-20 X 3/8 Taptite
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

4

Exmark 125-2478

Spacer

$9.49

$

Usually ships in 3-6 days

0

5

Exmark 121-9193

Spring-Torsion

$27.99

$

Usually ships in 3-6 days

0

6

Exmark 125-5093-01

Cover-Discharge

$35.99

$

In Stock, Qty 9

0

7

Exmark 116-9754

Side Discharge Chute ASM

$61.99

$

In Stock, Qty 11

0

7:2

Exmark 116-9752-03

Guard-Chute

$21.99

$

Usually ships in 3-6 days

0

7:3

Exmark 121-9196

Bracket-Chute

$22.99

$

Usually ships in 3-6 days

0

7:4

Exmark 46-8560

Screw-HHF 1/4-20 X 1/2

$1.99

$

In Stock, Qty 20+

0

7:5

Exmark 112-6416

Bracket-Cover

$2.99

$

In Stock, Qty 11

0

7:6

Exmark 94-4496

Screw-PPH

$1.49

$

In Stock, Qty 20+

0

7:7

Exmark 3230-18

Bolt-Carriage 5/16-18 X 5/8

$5.49

$

In Stock, Qty 13

0

7:8

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0
