ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Spindle and Blade Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

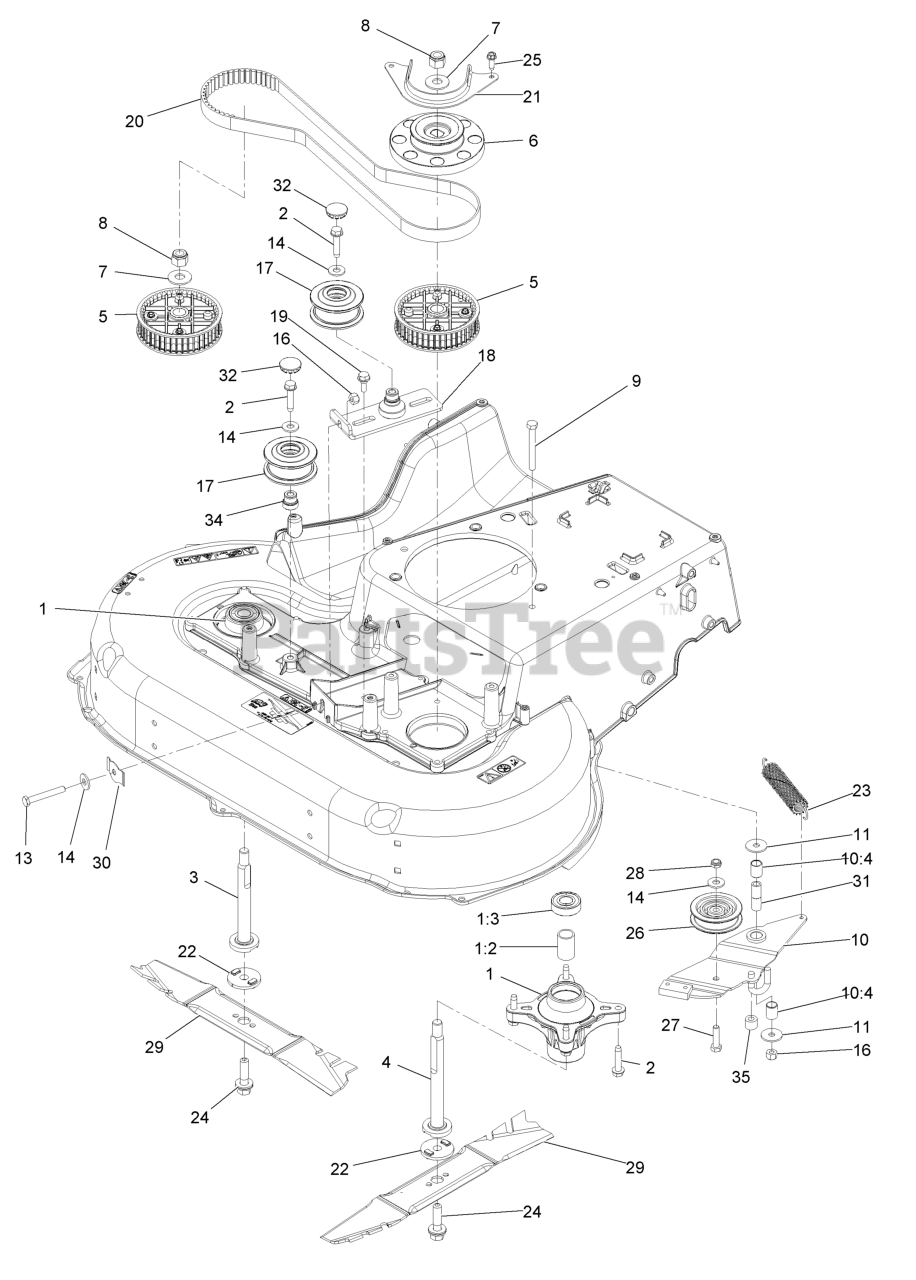

Spindle and Blade Assembly Parts Diagram

  • Title

1

Exmark 121-9107

Spindle ASM

$74.99

$

In Stock, Qty 20+

0

1:2

Exmark 120-7935

Spacer

$2.99

$

In Stock, Qty 20+

0

1:3

Exmark 136-5441

Bearing-Ball

$7.99

$

In Stock, Qty 20+

0

2

Exmark 132-4498

Screw-HWH
(Superseded to 139-1731)

$1.49

$

In Stock, Qty 20+

0

3

Exmark 120-5234

Shaft-Spindle
(Superseded to 139-6612)

$28.99

$

In Stock, Qty 14

0

4

Exmark 120-5235

Shaft-Spindle
(Superseded to 139-6613)

$29.99

$

In Stock, Qty 20+

0

5

Exmark 121-9100

Sprocket

$52.99

$

In Stock, Qty 20+

0

6

Exmark 130-6664

Pulley-Brake, Spindle

$47.99

$

In Stock, Qty 20+

0

7

Exmark 109-9505

Washer, Spring Disc 1/2

$5.49

$

In Stock, Qty 20+

0

8

Exmark 3296-19

Nut-Nyloc 1/2-20

$1.49

$

In Stock, Qty 20+

0

9

Exmark 322-13

Screw-HH 5/16-18 X 2 3/4

$3.49

$

In Stock, Qty 17

0

10

Exmark 136-5903

Brake Arm ASM

$66.99

$

In Stock, Qty 18

0

10:4

Exmark 131-0819

Bushing-Sleeve

$2.99

$

In Stock, Qty 20+

0

11

Exmark 5-4460

Washer-Pivot

$7.99

$

In Stock, Qty 20+

0

13

Exmark 9114524

Bolt-HH 5/16-18 X 2 1/4 Tap
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 20+

0

16

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

17

Exmark 126-7890

Pulleys And Idler Kit

$180.99

$

In Stock, only 1 left!

0

18

Exmark 126-6453

Bracket-Idler

$60.99

$

In Stock, only 1 left!

0

19

Exmark 120-7024

Screw-HH Flg 1/4-20 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

20

Exmark 120-3335

Belt-Synchronous
(Superseded to 120-3335-SL)

$82.99

$

Usually ships in 3-6 days

0

21

Exmark 120-5245-03

Guide-Belt, Spindle

$7.99

$

In Stock, Qty 20+

0

22

Exmark 120-5236

Adapter-Blade

$7.99

$

In Stock, Qty 20+

0

23

Exmark 121-5808

Spring-Extension, Brake

$17.99

$

In Stock, Qty 11

0

24

Exmark 125-2466

Bolt-Blade

$3.49

$

In Stock, Qty 20+

0

25

Exmark 49-2040

Screw-HWH 1/4-20 X 3/4 Tf

$2.49

$

In Stock, Qty 20+

0

26

Exmark 120-7082

Pulley-Idler

$23.99

$

In Stock, Qty 20+

0

27

Exmark 322-6

Screw-HH 5/16-18 X 1 1/4

$3.99

$

In Stock, Qty 20+

0

28

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 20+

0

29

Exmark 116-6358-03

Blade-Rotary

$25.99

$

In Stock, Qty 20+

0

30

Exmark 121-2336

Spring-Flat

$7.99

$

In Stock, Qty 20+

0

31

Exmark 131-0823

Spacer-Brake

$13.99

$

In Stock, Qty 20+

0

32

Exmark 126-7151

Plug-Button

$5.49

$

In Stock, Qty 9

0

34

Exmark 131-4504

Adapter-Bore

$5.49

$

In Stock, Qty 20+

0

35

Exmark 133-1964

Hose-Coolant

$2.99

$

In Stock, Qty 20+

0
