ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 406294345 - 408644345) (Rev A) (2020) Engine and Fuel Tank Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

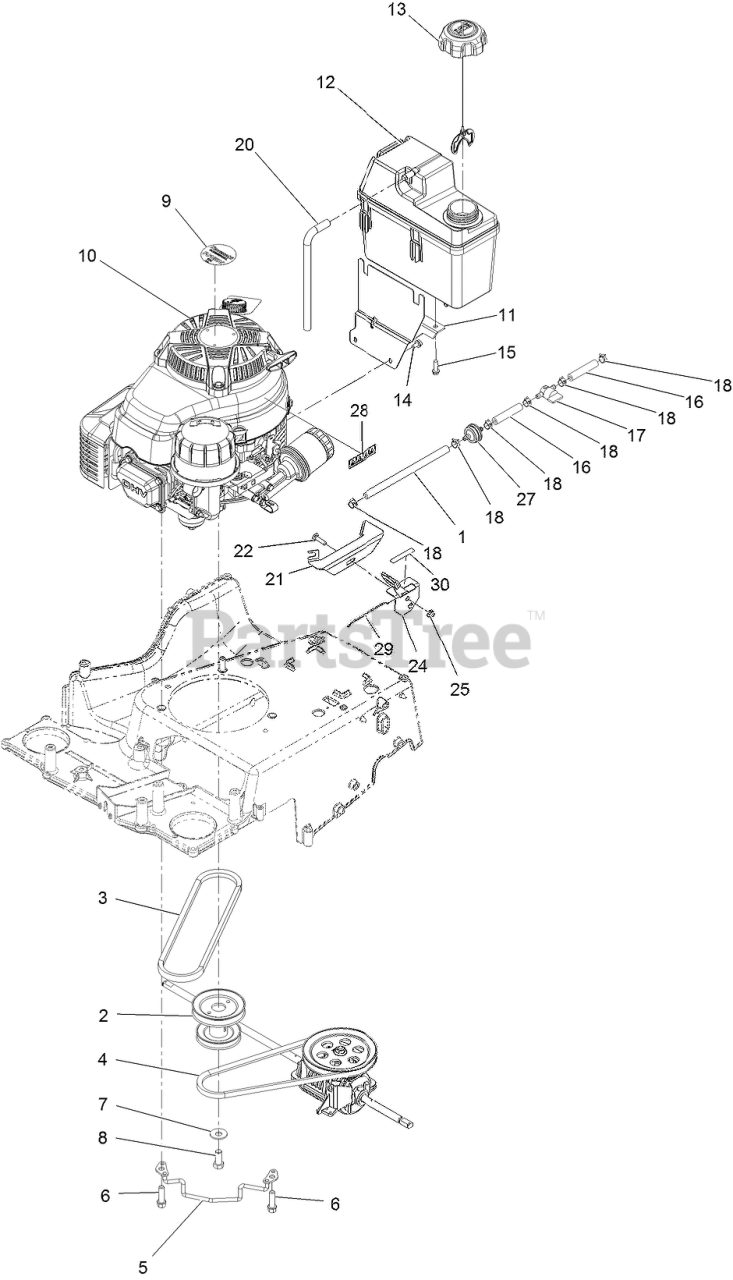

Engine and Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 119-1892

HOSE-FUEL

$11.99

$

In Stock, only 1 left!

0

2

Exmark 137-9177

PULLEY-ENGINE

$53.99

$

In Stock, Qty 20+

0

3

Exmark 121-5765

V-BELT

$19.99

$

In Stock, Qty 20+

0

4

Exmark 116-7116

BELT
(Superseded to 116-7116-SL)

$30.99

$

Usually ships in 3-6 days

0

5

Exmark 139-1734

GUIDE-BELT, WA

$23.99

$

In Stock, Qty 20+

0

6

Exmark 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 13

0

9

Exmark 109-6528

DECAL

$6.49

$

In Stock, Qty 13

0

10

Engine-Kawasaki Fj180V

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

11

Exmark 115-0954-03

MOUNT-TANK

$42.99

$

In Stock, only 3 left!

0

12

Exmark 114-0280

TANK-FUEL

$140.99

$

In Stock, only 1 left!

0

13

Exmark 137-4127

CAP-FUEL

$22.99

$

In Stock, only 2 left!

0

14

Exmark 116-8929

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

15

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

16

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 16

0

17

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 18

0

18

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

20

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 1 left!

0

21

Exmark 130-6440-03

BRACKET-MOUNT, THROTTLE

$31.99

$

In Stock, Qty 11

0

22

Exmark 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 15

0

24

Exmark 130-9655

CONTROL-THROTTLE

$41.99

$

In Stock, Qty 12

0

25

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Exmark 139-5916

Filter-Fuel

$9.49

$

In Stock, Qty 20+

0

28

Exmark 116-9313

DECAL-WARNING, ENGINE

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 130-9654

WIRE-CONTROL

$2.99

$

In Stock, Qty 20+

0

30

Exmark 130-9656

DECAL-THROTTLE, CHOKE

$2.99

$

In Stock, only 2 left!

0
