Exmark ECS180GKA21000 - Exmark 21" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 406294345 - 408644345) (Rev A) (2020) Deck and Wheel Assembly Parts Lookup with Diagrams

2

Exmark 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

3

Exmark 109-7258

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 20+

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

5

Exmark 109-7694

SPRING-COMPRESSION

$6.99

$

In Stock, only 2 left!

6

Exmark 108-5059

SPACER-BUSHING

$8.49

$

In Stock, Qty 20+

7

Exmark 109-7692

SPRING-EXTENSION

$6.99

$

In Stock, only 3 left!

8

Exmark 116-6172

HOUSING ASM

$20.99

$

In Stock, Qty 20+

8:1

Exmark 116-6171

HOUSING-BEARING

$19.99

$

In Stock, Qty 20+

8:2

Exmark 116-4279

BEARING-FLANGE

$4.49

$

In Stock, Qty 20+

9

Exmark 126-7347

WHEEL ASM, 9" W/BEARINGS

$93.99

$

In Stock, Qty 20+

9:1

Exmark 126-7345

WHEEL ASM, 9"

$75.99

$

In Stock, only 3 left!

9:2

Exmark 133-2603

BEARING-BALL

$27.99

$

In Stock, Qty 20+

10

Exmark 133-2603

BEARING-BALL

$27.99

$

In Stock, Qty 20+

11

Exmark 109-8025

ROD,SHIELD

$13.99

$

In Stock, only 4 left!

12

Exmark 126-7758

WHEEL ASM, 9 W/GEAR

$97.99

$

In Stock, Qty 20+

12:1

Exmark 126-7345

WHEEL ASM, 9"

$75.99

$

In Stock, only 3 left!

12:2

Exmark 133-2603

BEARING-BALL

$27.99

$

In Stock, Qty 20+

12:3

Exmark 133-2625

GEAR-WHEEL, 52T

$19.99

$

In Stock, only 2 left!

12:4

Exmark 130-6426

STUD-DRIVE

$1.49

$

In Stock, Qty 10

13

Exmark 109-8441

BRACKET,MOUNT

$6.49

$

In Stock, Qty 12

15

Exmark 126-8259

COVER,GEAR

$6.99

$

In Stock, Qty 19

16

Exmark 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

17

Exmark 135-7789

DECK-ASM, COM21 BOXED

(Superseded to 142-8690) 

$386.99

$

Usually ships in 3-6 days

17:1

DECK W/DECALS

Note: Not serviced separately

$

Not available 

17:1:2

Exmark 116-1922

DECAL-HEIGHT OF CUT

$8.49

$

In Stock, Qty 7

17:1:3

Exmark 130-9670

DECAL-WARNING, BLADE

$3.49

$

In Stock, Qty 13

17:1:4

Exmark 94-8072

DECAL-DANGER

$6.99

$

In Stock, only 1 left!

17:1:5

Exmark 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

18

Exmark 109-9302

BLOCK,FRONT QUADRANT

$26.99

$

In Stock, Qty 6

19

Exmark 116-0994

AXLE-WHEEL

$13.99

$

In Stock, Qty 20+

20

Exmark 116-9646-01

BRACKET-TRANSMISSION AND

$58.99

$

In Stock, only 3 left!

21

Exmark 109-9312

WLD,REAR AXLE P21

$136.99

$

In Stock, only 3 left!

22

Exmark 109-9324

COVER,BELT

$18.99

$

In Stock, only 4 left!

23

Exmark 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

24

Exmark 116-9906

TRANSMISSION-HD, 4.5/1

$183.99

$

In Stock, Qty 20+

25

Exmark 126-6885

DECAL-COMM 21 S-SERIES

$9.99

$

Usually ships in 3-6 days

26

Exmark 116-0252

SHIELD-TRAILING P21

$37.99

$

In Stock, only 4 left!

27

Exmark 116-0329

ROD-HEIGHT ADJ P21

$10.99

$

In Stock, only 2 left!

29

Exmark 109-9292

PLATE, FRONT HEIGHT

$18.99

$

In Stock, Qty 9

32

Exmark 109-8449

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

33

Exmark 32144-49

SCREW-HWHTF

$5.49

$

In Stock, only 1 left!

34

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

37

Exmark 74-1810

WASHER

$0.99

$

In Stock, Qty 20+

39

Exmark 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 20+

40

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

41

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

42

Exmark 116-2221

PLATE,WEAR

$8.99

$

In Stock, only 2 left!

43

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

44

Exmark 126-2335

COVER-SHAFT-DRIVE

$6.99

$

Usually ships in 3-6 days

47

Exmark 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 4 left!

48

Exmark 116-3539-03

TRANSMISSION PLATE ASM

$64.99

$

Usually ships in 3-6 days

49

Exmark 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

50

Exmark 39-6740

PULLEY

$56.99

$

In Stock, only 2 left!

51

Exmark 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

52

Exmark 36-4792

WASHER-THRUST

$1.49

$

In Stock, Qty 16

53

Exmark 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

54

Exmark 116-1438

SPRING,COMPRESSION

$3.49

$

In Stock, only 2 left!

55

Exmark 138-3233

MOUNT-BEARING

$5.49

$

In Stock, Qty 20+

56

Exmark 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

57

Exmark 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

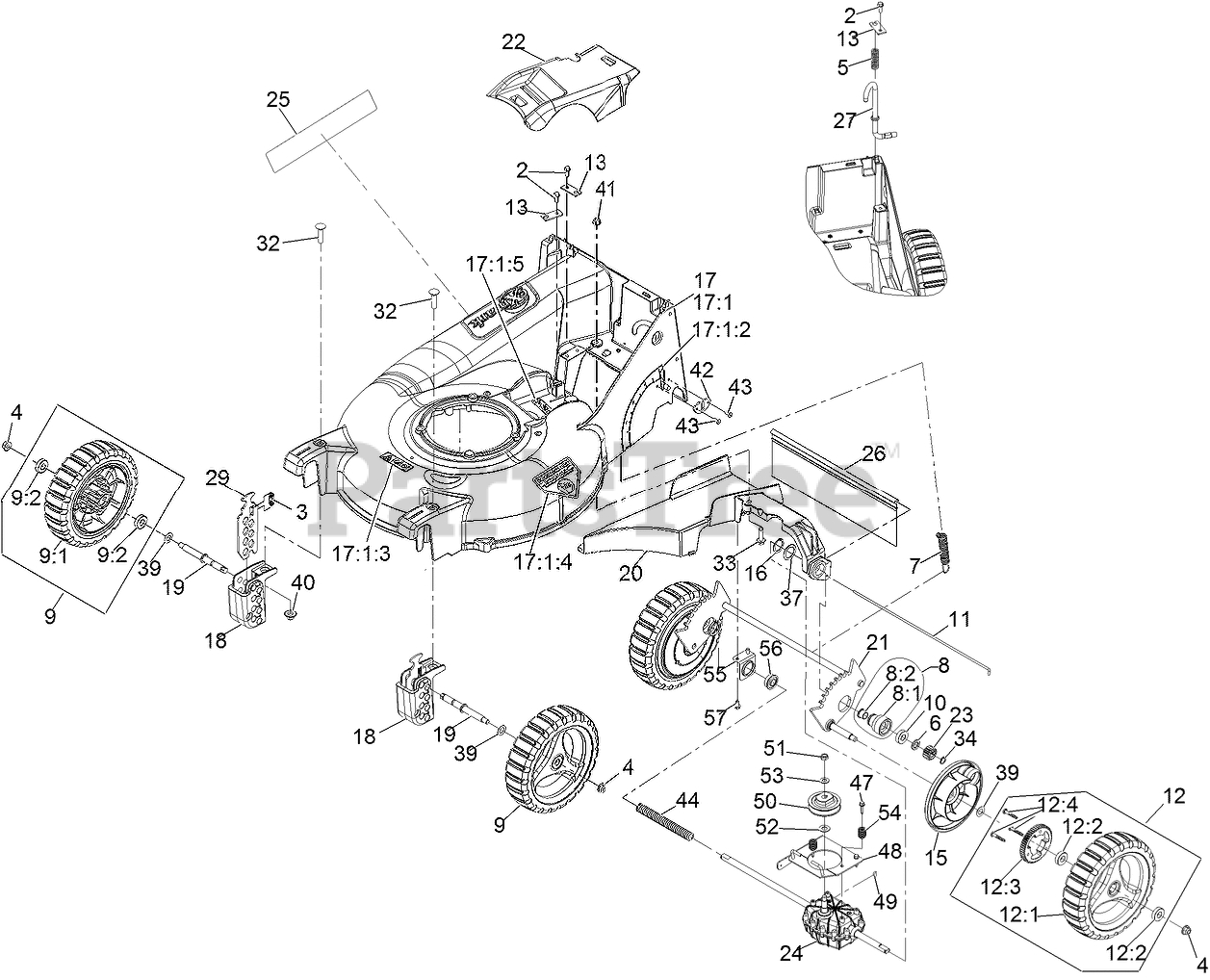

ECS180GKA21000 - Exmark 21" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 406294345 - 408644345) (Rev A) (2020) Deck and Wheel Assembly Parts Diagram

Deck and Wheel Assembly Parts Diagram
