ECV060B0230010 - Exmark 30" V-Series Walk-Behind Mower, Electric (SN: 416150475 - 417930745) (Rev A) (2024) Deck Assembly Parts Diagram

30" V-Series Walk-Behind Mower, Electric

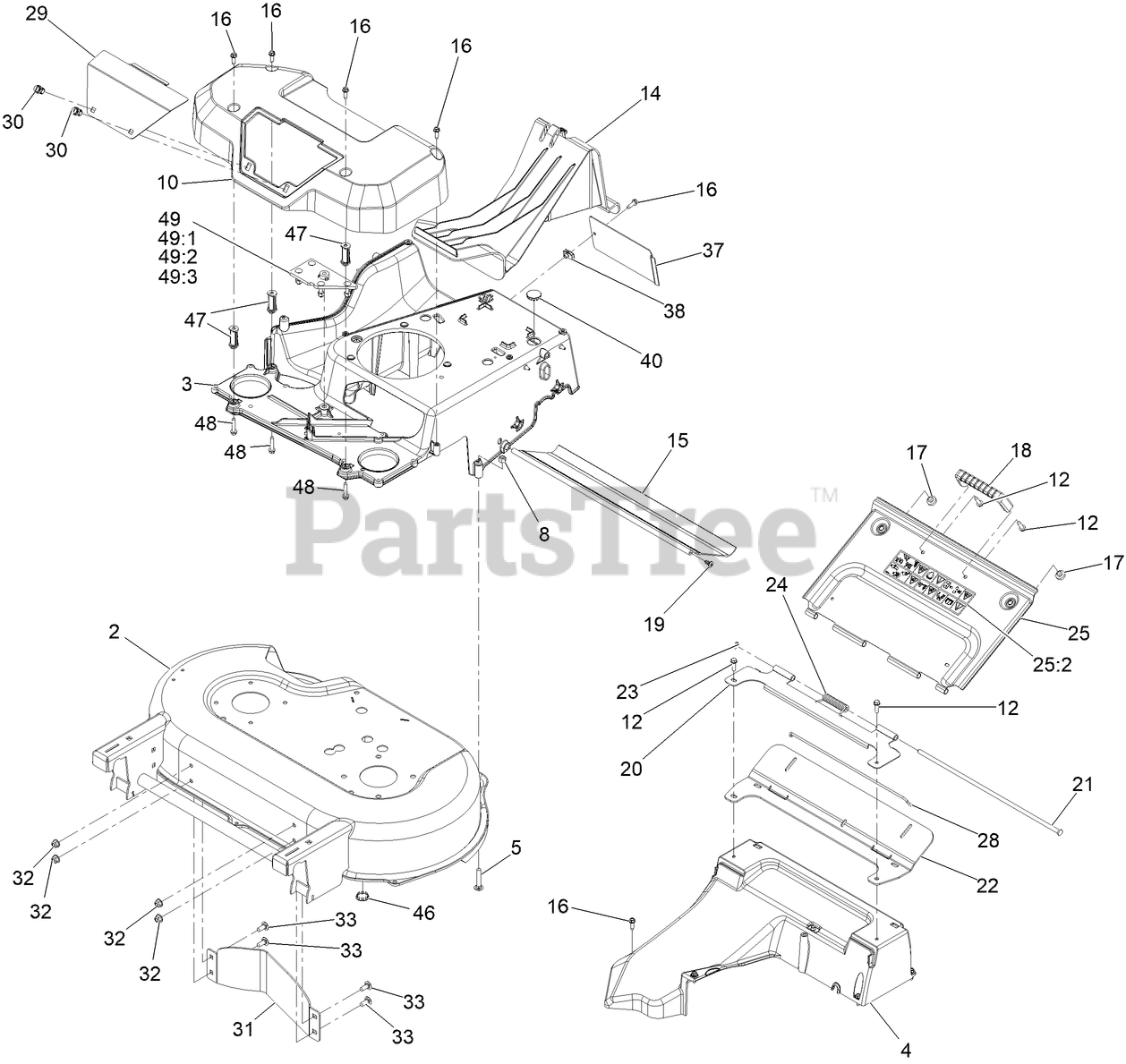

Deck Assembly Parts Diagram

  • Title

2

Exmark 161-3119

HOUSING ASM

$524.99

$

Usually ships in 0 days

0

3

Exmark 145-4047-01

FRAME-30

$289.99

$

Usually ships in 0 days

0

4

Exmark 133-8177

CHUTE

$63.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0

8

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 145-5898

COVER-BELT

$39.99

$

Usually ships in 0 days

0

12

Exmark 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

14

Exmark 120-5225

PLUG-MULCH

$33.99

$

In Stock, Qty 19

0

15

Exmark 121-5841

SHIELD-TRAILING

$25.99

$

In Stock, Qty 11

0

16

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

18

Exmark 65-5100

HANDLE-DOOR

$10.99

$

In Stock, only 2 left!

0

19

Exmark 117-1092

SCREW-PTH
(Superseded to 139-1692)

$0.99

$

In Stock, Qty 20+

0

20

Exmark 116-6351-03

BRACKET-HINGE

$42.99

$

In Stock, Qty 5

0

21

Exmark 116-6933

PIN-HINGE

$9.49

$

In Stock, Qty 5

0

22

Exmark 116-6229

SEAL-DOOR

$26.99

$

In Stock, Qty 11

0

23

Exmark 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

24

Exmark 116-7573

SPRING-TORSION, COVER

$5.99

$

In Stock, Qty 11

0

25

Exmark 116-8355

REAR DOOR ASM

$79.99

$

In Stock, only 4 left!

0

25:2

Exmark 116-7583

DECAL-WARNING

$20.99

$

In Stock, Qty 9

0

28

Exmark 116-6966

CLIP-SEAL

$7.49

$

In Stock, Qty 16

0

29

Exmark 145-5899-03

PANEL-ACCESS

$23.99

$

Usually ships in 0 days

0

30

Exmark 121-5840

FASTENER

$6.99

$

In Stock, Qty 20+

0

31

Exmark 130-2352-01

BAFFLE-CONTROL

$29.99

$

Usually ships in 3-6 days

0

32

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 11

0

33

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

0

37

Exmark 138-5332-01

Cover-Frame

$9.49

$

In Stock, only 2 left!

0

38

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

40

Exmark 126-7151

PLUG-BUTTON

$5.99

$

In Stock, Qty 17

0

46

Exmark 147-0471

PLUG-BUTTON

$

$

Currently unavailable

47

Exmark 140-3901

SPACER-FRAME, 30 IN.

$5.99

$

Usually ships in 3-6 days

0

48

Exmark 108-4862

SCREW-HWH THD ROLL

$3.99

$

In Stock, only 3 left!

0

49

Exmark 161-3140

FRAME-PLATE KIT

$

$

Currently unavailable

49:1

Exmark 161-3141

PLATE-FRAME, ASM

$

$

Currently unavailable

49:2

Exmark 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

49:3

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
