ECV060B02300BT - Exmark 30" V-Series Walk-Behind Mower, Electric (SN: 413950474 - 416150474) (Rev A) (2023) Handle Assembly Parts Diagram

30" V-Series Walk-Behind Mower, Electric

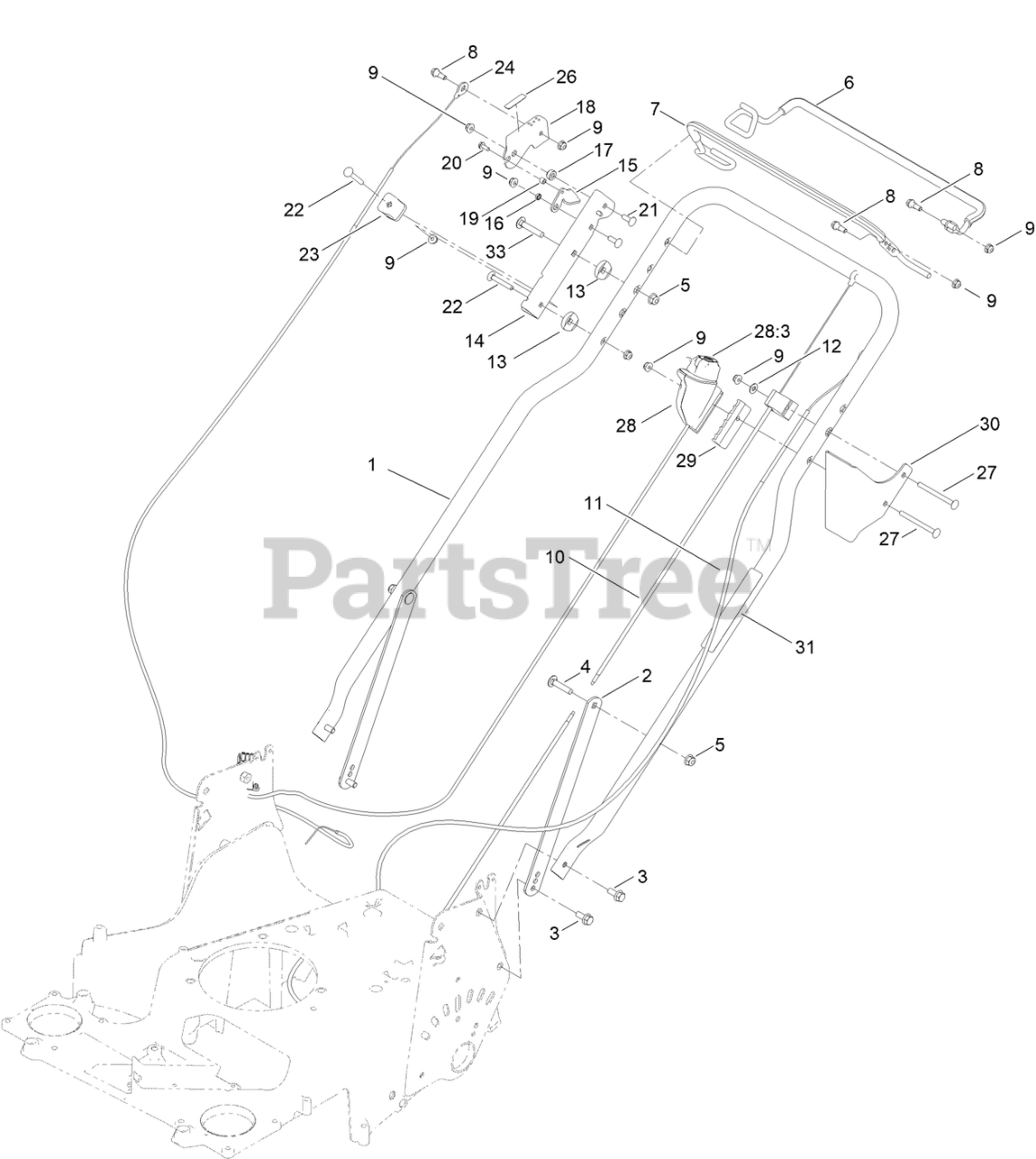

Handle Assembly Parts Diagram

  • Title

1

Exmark 147-0540-03

HANDLE

$114.99

$

In Stock, only 1 left!

0

2

Exmark 116-8208-03

SUPPORT-HANDLE

$7.49

$

In Stock, Qty 12

0

3

Exmark 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, only 2 left!

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

6

Exmark 139-1815

BAIL-TRACTION, COATED

$42.99

$

In Stock, Qty 9

0

7

Exmark 137-4810

BAIL-BBC, COATED

$43.99

$

In Stock, Qty 9

0

8

Exmark 42-3560

BOLT-SHOULDER

$6.49

$

In Stock, only 2 left!

0

9

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 147-0488

CABLE-BRAKE

$39.99

$

Usually ships in 0 days

0

11

Exmark 147-0489

CABLE-TRACTION

$39.99

$

Usually ships in 0 days

0

12

Exmark 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 13

0

13

Exmark 106-7260

Washer-Curved

$9.99

$

In Stock, only 1 left!

0

14

Exmark 139-1818-03

Mount-Lever, Brake

$25.99

$

In Stock, only 2 left!

0

15

Exmark 139-1813

Link-Actuation, Brake

$2.99

$

In Stock, Qty 5

0

16

Exmark 138-5368

Spacer

$1.49

$

In Stock, Qty 11

0

17

Exmark 139-1817

Washer-Stepped

$1.99

$

In Stock, Qty 7

0

18

Exmark 139-1819

Lever-Brake

$8.49

$

In Stock, Qty 6

0

19

Exmark 117-9965

Spacer

$9.49

$

In Stock, only 4 left!

0

20

Exmark 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

21

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

22

Exmark 3229-5

SCREW-CARR

$1.49

$

In Stock, only 3 left!

0

23

Exmark 106-6801

Anchor-Cable

$8.49

$

In Stock, Qty 9

0

24

Exmark 138-5399

CABLE-BRAKE, PARKING

$38.99

$

In Stock, Qty 13

0

26

Exmark 139-5405

DECAL-BRAKE, PARKING

$2.99

$

In Stock, only 1 left!

0

27

Exmark 144-6387

SCREW-CARR,SPCL

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 145-4008

SWITCH-STARTER ASM

$46.99

$

Usually ships in 0 days

0

28:3

Exmark 147-0576

Starter Button Service ASM

$4.49

$

Usually ships in 0 days

0

29

Exmark 140-4148

SPACER-HOUSING, SWITCH

$5.99

$

Usually ships in 3-6 days

0

30

Exmark 147-0487-03

GUARD-SWITCH

$18.99

$

Usually ships in 0 days

0

31

Exmark 144-3175

DECAL-CONTROLS (60V START)

$7.49

$

Usually ships in 3-6 days

0

33

Exmark 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0
