ECV060B02300BT - Exmark 30" V-Series Walk-Behind Mower, Electric (SN: 413950474 - 416150474) (Rev A) (2023) Spindle Assembly Parts Diagram

30" V-Series Walk-Behind Mower, Electric

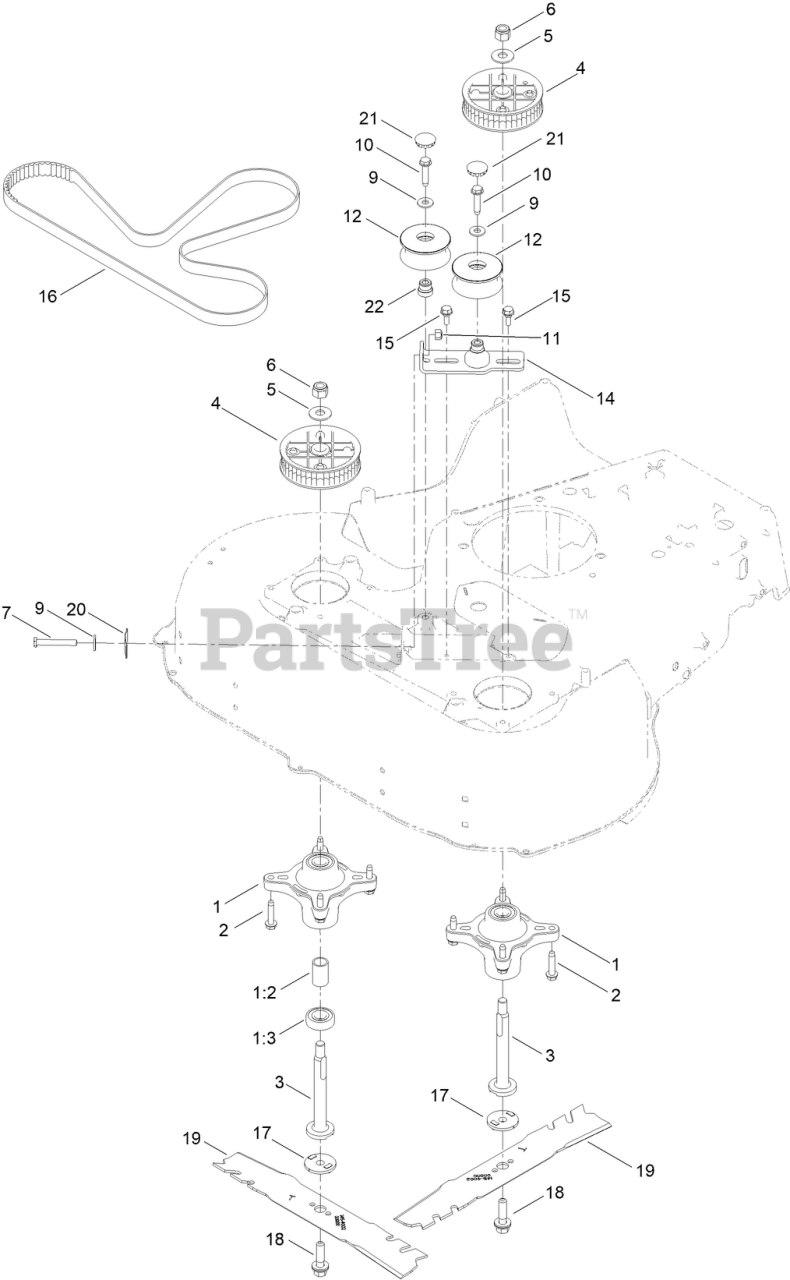

Spindle Assembly Parts Diagram

  • Title

1

Exmark 121-9107

SPINDLE ASM

$79.99

$

In Stock, Qty 10

0

1:2

Exmark 120-7935

SPACER

$2.49

$

In Stock, Qty 18

0

1:3

Exmark 138-9770

BEARING-BALL

$8.49

$

In Stock, Qty 6

0

2

Exmark 139-1731

SCREW-THD ROLL, HWH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 139-6612

SHAFT-SPINDLE

$33.99

$

In Stock, only 2 left!

0

4

Exmark 121-9100

SPROCKET

$58.99

$

In Stock, Qty 20+

0

5

Exmark 109-9505

WASHER-SPRING

$5.99

$

In Stock, Qty 13

0

6

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

7

Exmark 9114524

BOLT-TAP, HH
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

10

Exmark 32144-57

SCREW

$2.99

$

In Stock, Qty 6

0

11

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Exmark 126-5880

PULLEY-IDLER, FLAT

$61.99

$

In Stock, Qty 10

0

12

Exmark 126-7890

PULLEYS AND IDLER KIT

$186.99

$

In Stock, only 1 left!

0

14

Exmark 147-0470

BRACKET-IDLER

$

$

Currently unavailable

15

Exmark 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 145-4001

BELT-SYNCHRONOUS

$86.99

$

Usually ships in 3-6 days

0

17

Exmark 120-5236

ADAPTER-BLADE

$7.49

$

In Stock, Qty 20+

0

18

Exmark 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

19

Exmark 145-4002-03

BLADE-ROTARY

$26.99

$

Usually ships in 3-6 days

0

20

Exmark 121-2336

SPRING-FLAT

$8.49

$

In Stock, Qty 20+

0

21

Exmark 126-7151

PLUG-BUTTON

$5.99

$

In Stock, Qty 17

0

22

Exmark 131-4504

ADAPTER-BORE

$5.99

$

In Stock, Qty 18

0
