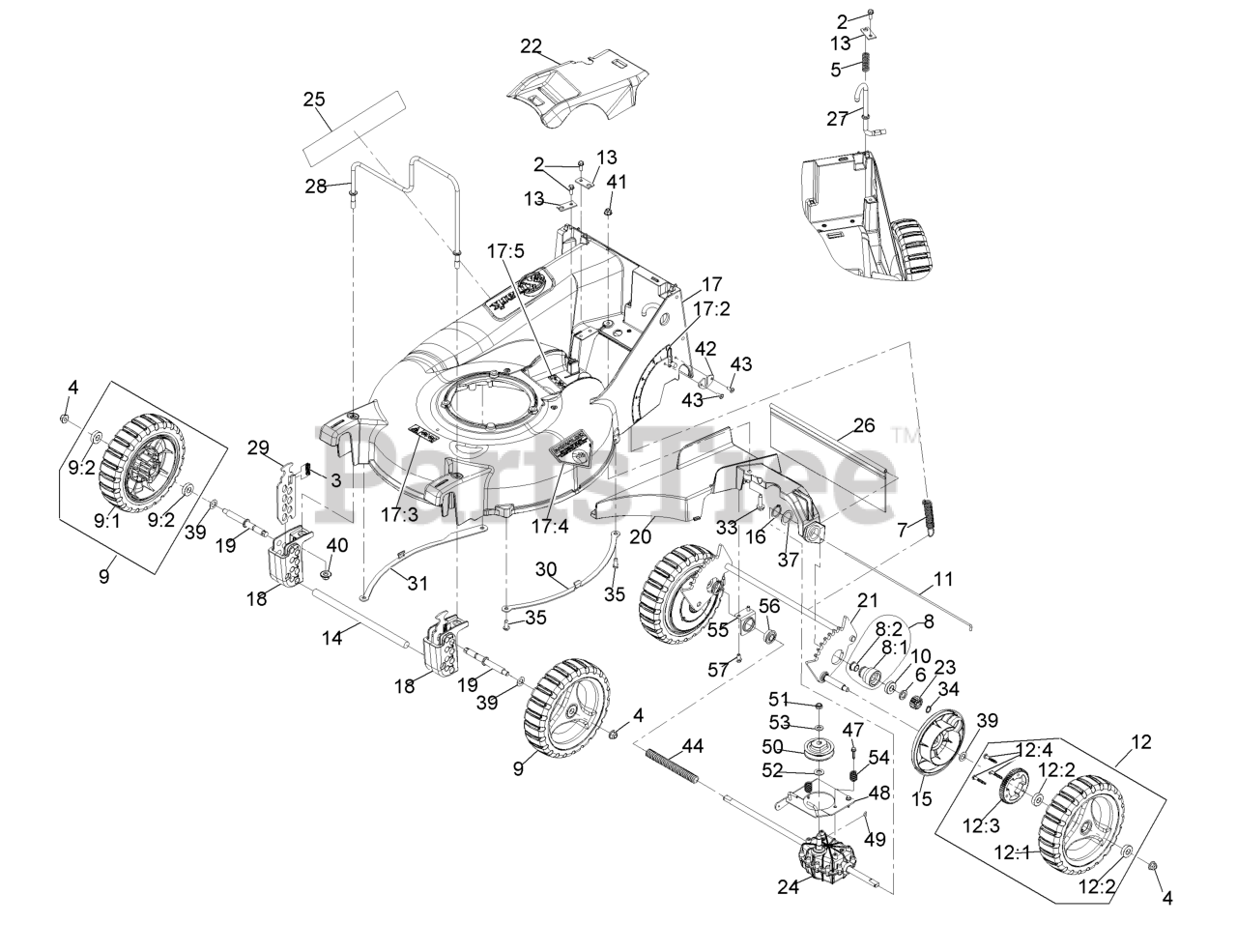

ECX180CKA21000 - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 400000000 - 402082299) (2017) > Parts Diagrams (5) > Drive and Wheel Assembly

  • Title
32144-85

2

Screw-HWH 1/4-20 X .62

Part# 32144-85

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.14

109-7258

3

Spring-Compression

Part# 109-7258

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

104-8301

4

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89

109-7694

5

Spring-Compression

Part# 109-7694

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

108-5059

6

Spacer-Bushing

Part# 108-5059

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

109-7692

7

Spring-Extension

Part# 109-7692

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

116-6172

8

Housing ASM

Part# 116-6172

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

116-6171

8:1

Housing-Bearing

Part# 116-6171

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

116-4279

8:2

Bearing-Flange

Part# 116-4279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

126-7347

9

Wheel ASM, 9" W/Bearings

Part# 126-7347

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $60.36

126-7345

9:1

Wheel ASM, 9"

Part# 126-7345

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.95

133-2603

9:2

Bearing-Ball

Part# 133-2603

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

109-8020

10

Bearing-Ball

Part# 109-8020 (Superseded to 52-2450)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

109-8025

11

Rod,Shield

Part# 109-8025

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

126-7758

12

Wheel ASM, 9 W/Gear

Part# 126-7758

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $62.60

126-7345

12:1

Wheel ASM, 9"

Part# 126-7345

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.95

133-2603

12:2

Bearing-Ball

Part# 133-2603

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

133-2625

12:3

Gear-Wheel, 52T

Part# 133-2625

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.40

130-6426

12:4

Stud-Drive

Part# 130-6426

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

109-8441

13

Bracket,Mount

Part# 109-8441

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

109-8454

14

Rod,Bumper

Part# 109-8454

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.76

126-8259

15

Cover,Gear

Part# 126-8259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

32151-36

16

Ring-Retaining

Part# 32151-36

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.53

116-2006

17

Deck W/Decals

Part# 116-2006

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $498.03

116-1922

17:2

Decal-Height Of Cut

Part# 116-1922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

130-9670

17:3

Decal-Warning, Blade

Part# 130-9670

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

94-8072

17:4

Decal-Danger

Part# 94-8072

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

119-0217

17:5

Decal-Danger

Part# 119-0217

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.52

109-9302

18

Block,Front Quadrant

Part# 109-9302

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.79

116-0994

19

Axle-Wheel

Part# 116-0994

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

116-9646-01

20

Bracket-Transmission And Chute

Part# 116-9646-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.22

109-9312

21

Wld,Rear Axle P21

Part# 109-9312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $80.48

109-9324

22

Cover,Belt

Part# 109-9324

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.58

131-5399

23

Gear-Pinion, 15T

Part# 131-5399

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

116-9906

24

Transmission-HD, 4.5/1

Part# 116-9906

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $115.37

126-6886

25

Decal-Comm 21 X-Series

Part# 126-6886

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.87

116-0252

26

Shield-Trailing P21

Part# 116-0252

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.18

116-0329

27

Rod-Height Adj P21

Part# 116-0329

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

116-0522

28

Guard,Engine

Part# 116-0522

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.71

109-9292

29

Plate, Front Height

Part# 109-9292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.58

116-0995-03

30

Skid,LH

Part# 116-0995-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.42

116-0996-03

31

Skid,RH

Part# 116-0996-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.42

32144-49

33

Screw-HWH 5/16-18 1 1/4 Tf

Part# 32144-49

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

32151-61

34

Ring-Retaining

Part# 32151-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

613381

35

Screw-Button Head 5/16-18 X .725 Tf

Part# 613381

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.41

74-1810

37

Washer

Part# 74-1810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.16

36-4780

39

Washer

Part# 36-4780

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

109-6658

40

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

104-8300

41

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

116-2221

42

Plate,Wear

Part# 116-2221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

114439

43

Rivet

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

126-2335

44

Cover-Shaft-Drive

Part# 126-2335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.52

27-0220

47

Screw-Special

Part# 27-0220

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

116-3539-03

48

Transmission Plate ASM

Part# 116-3539-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.48

3257-1

49

Key-Woodruff 1/8 X 1/2

Part# 3257-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

39-6740

50

Pulley

Part# 39-6740

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.00

3296-5

51

Nut-Nyloc 3/8-24 Thin

Part# 3296-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.62

36-4792

52

Washer-Thrust

Part# 36-4792

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3256-45

53

Washer-Flat

Part# 3256-45

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.42

116-1438

54

Spring,Compression

Part# 116-1438

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

120-7008

55

Mount-Bearing

Part# 120-7008 (Superseded to 138-3233)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

104-8699

56

Bearing-Ball

Part# 104-8699

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

9266714

57

Screw-HWH 1/4-20 X .50

Part# 9266714

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11
