ECX180CKA210BC - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC (SN: 402082300 - 404314158) (2018) Blade Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC

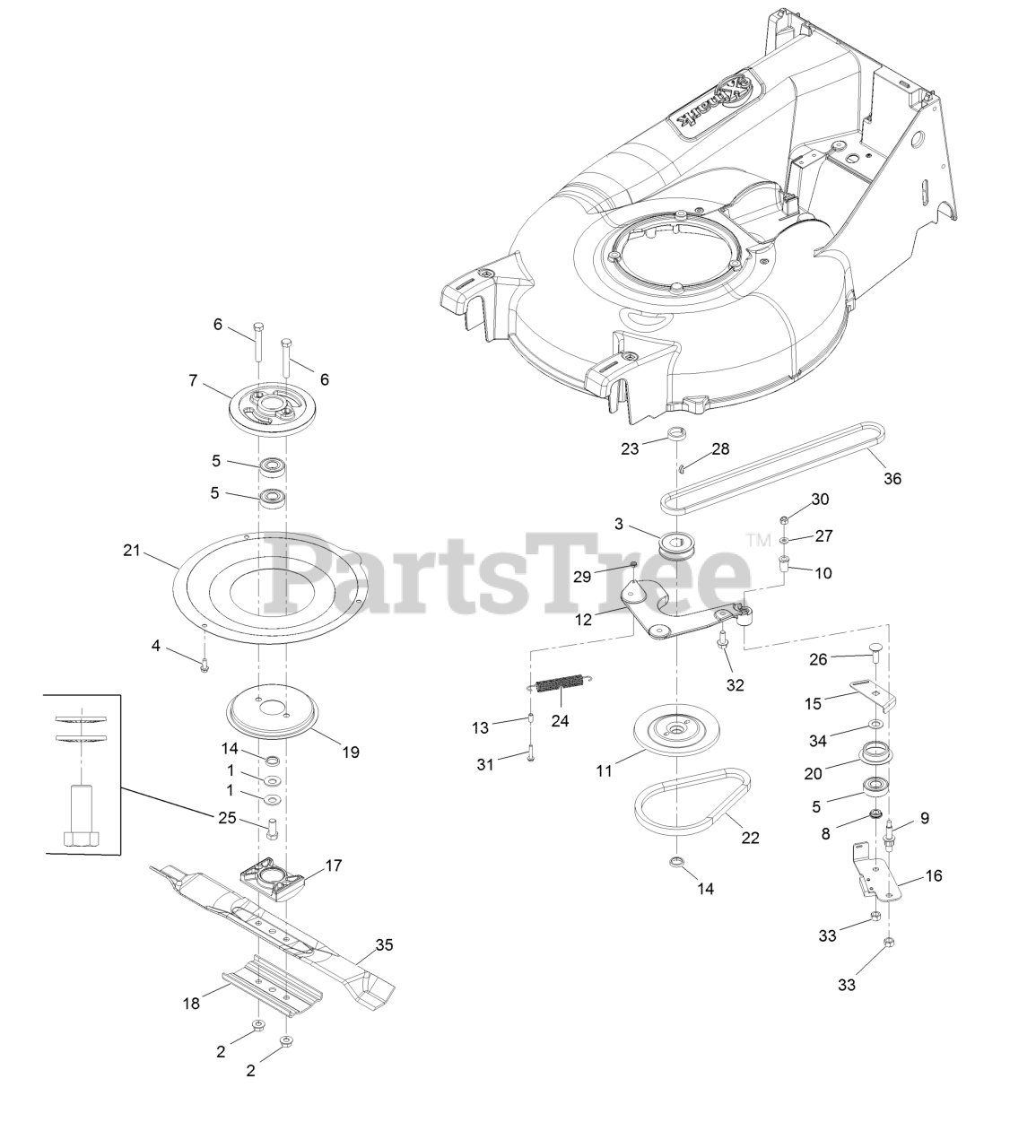

Blade Assembly Parts Diagram

  • Title

1

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

0

2

Exmark 127-6852

Nut-Flange, Lock

$2.99

$

In Stock, Qty 20+

0

3

Exmark 56-6180

Pulley-Driver

$51.99

$

In Stock, Qty 18

0

4

Exmark 32144-85

Screw-HWH 1/4-20 X .62

$1.99

$

In Stock, Qty 20+

0

5

Exmark 38-7820

Bearing-Ball

$13.99

$

In Stock, Qty 20+

0

6

Exmark 3211-42

Screw-HH 3/8-24 X 2 1/2

$4.99

$

In Stock, Qty 20+

0

7

Exmark 126-8108

Drum

$54.99

$

In Stock, only 1 left!

0

8

Exmark 107-0758

Spacer-Bearing

$3.49

$

In Stock, Qty 15

0

9

Exmark 107-0759

Bolt-Shoulder

$10.99

$

In Stock, Qty 20+

0

10

Exmark 107-0797

Bushing

$6.49

$

In Stock, Qty 20+

0

11

Exmark 107-4277-03

Pulley-Driver, Upper

$149.99

$

In Stock, only 1 left!

0

12

Exmark 116-3572

Plate-Mounting, BBC

$47.99

$

In Stock, Qty 10

0

13

Exmark 107-4292

Spacer-BBC

$7.99

$

In Stock, only 1 left!

0

14

Exmark 107-4293

Spacer-Plate, BBC

$12.99

$

In Stock, only 2 left!

0

15

Exmark 107-7471

Plate-Guide
(Superseded to 138-3222)

$3.49

$

In Stock, only 3 left!

0

16

Exmark 125-1063

Plate-Brake

$23.99

$

In Stock, Qty 20+

0

17

Exmark 107-7487

Support-Blade

$21.99

$

In Stock, only 2 left!

0

18

Exmark 108-3766-03

Support-Blade

$10.99

$

In Stock, Qty 20+

0

19

Exmark 108-3787

Disc
(Superseded to 138-3225)

$12.99

$

In Stock, only 1 left!

0

20

Exmark 108-3790

Retainer-Belt
(Superseded to 138-3217)

$2.99

$

In Stock, Qty 20+

0

21

Exmark 116-3360-03

Cover-BBC

$62.99

$

In Stock, only 4 left!

0

22

Exmark 110-1790

Belt
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

23

Exmark 110-2142

Spacer-Pulley

$22.99

$

Usually ships in 3-6 days

0

24

Exmark 115-4471

Spring-Extension

$20.99

$

In Stock, Qty 7

0

25

Exmark 3212-4

Screw-HH 7/16-20 X 1

$3.49

$

In Stock, Qty 13

0

26

Exmark 3231-38

Bolt-Carriage 3/8-16 X 1 1/4

$7.99

$

In Stock, only 1 left!

0

27

Exmark 3256-16

Washer-#12 Std

$0.99

$

In Stock, Qty 20+

0

28

Exmark 3257-3

Key-Woodruff

$1.49

$

In Stock, Qty 10

0

29

Exmark 3296-27

Nut-Lock #10-32

$1.49

$

In Stock, only 3 left!

0

30

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

31

Exmark 32144-9

Screw-HWH #10-32 X 1 Taptite

$5.49

$

In Stock, only 2 left!

0

32

Exmark 33104-020

Screw-HH M8-1.25 X 20Mm

$3.49

$

In Stock, only 4 left!

0

33

Exmark 125-5069

Nut-Hex
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

34

Exmark 605256

Spacer

$2.99

$

In Stock, Qty 9

0

35

Exmark 135-0413

Blade - Medium Lift, 20.5

$

$

Currently unavailable

36

Exmark 109-7299

Belt,3L P21 Drive
(Superseded to 109-7299-SL)

$28.99

$

In Stock, Qty 18

0
