ECX180CKA210BC - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC (SN: 413950474 - 416150474) (Rev A) (2023) Blade Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC

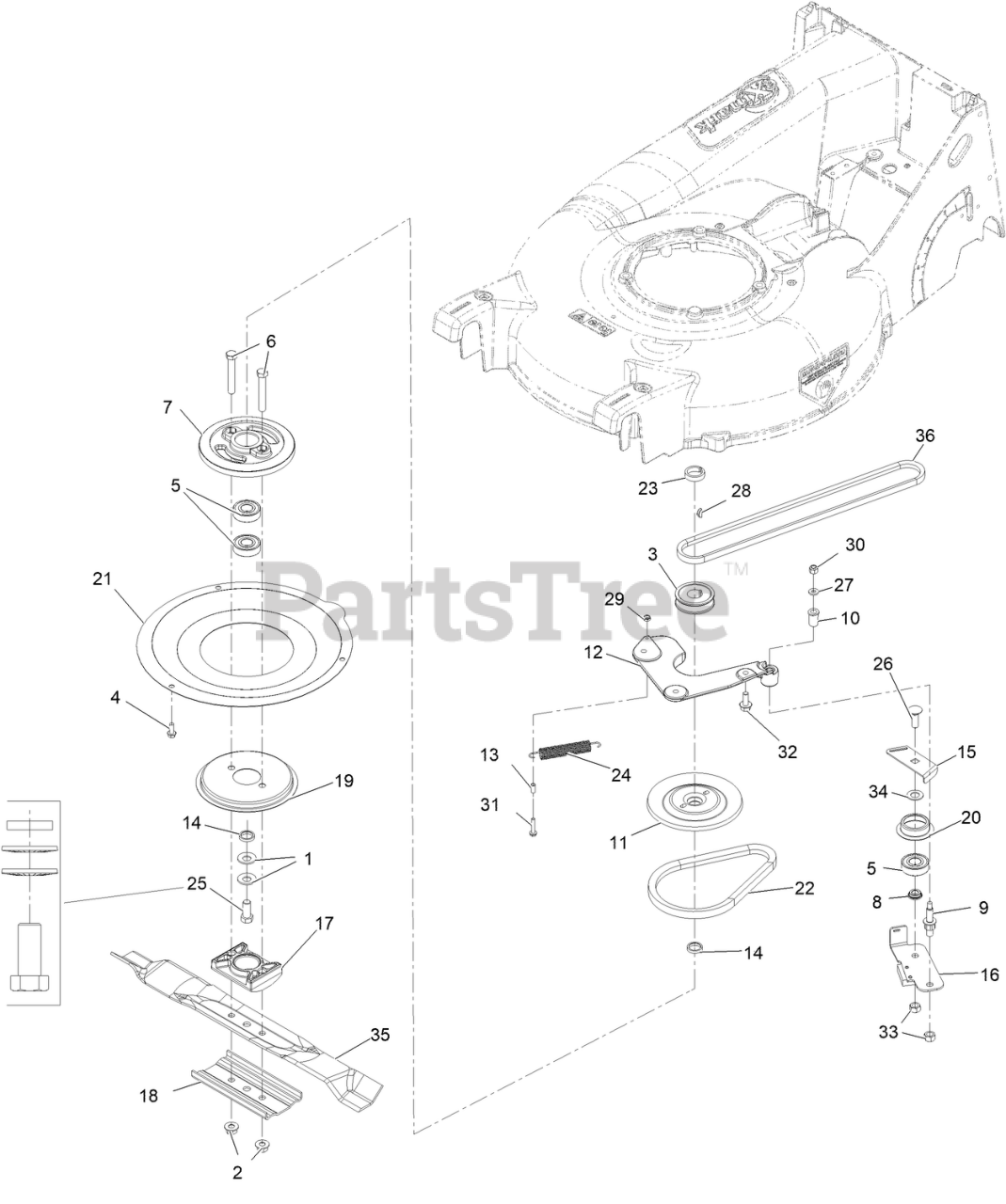

Blade Assembly Parts Diagram

  • Title

1

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 7

0

2

Exmark 127-6852

NUT-FLANGE, LOCK

$2.99

$

In Stock, Qty 20+

0

3

Exmark 56-6180

PULLEY-DRIVER

$52.99

$

In Stock, only 4 left!

0

4

Exmark 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

5

Exmark 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

6

Exmark 3211-42

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

7

Exmark 126-8108

DRUM

$60.99

$

In Stock, only 1 left!

0

8

Exmark 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 19

0

9

Exmark 107-0759

BOLT-SHOULDER

$11.99

$

In Stock, Qty 6

0

10

Exmark 107-0797

BUSHING

$6.99

$

In Stock, Qty 13

0

11

Exmark 107-4277-03

PULLEY-DRIVER, UPPER

$158.99

$

In Stock, only 2 left!

0

12

Exmark 116-3572

PLATE-MOUNTING, BBC

$53.99

$

In Stock, only 1 left!

0

13

Exmark 107-4292

SPACER-BBC

$8.49

$

In Stock, only 1 left!

0

14

Exmark 107-4293

SPACER-PLATE, BBC

$13.99

$

In Stock, only 2 left!

0

15

Exmark 138-3222

Plate-Guide

$4.49

$

In Stock, Qty 13

0

16

Exmark 125-1063

PLATE-BRAKE

$25.99

$

In Stock, Qty 11

0

17

Exmark 107-7487

SUPPORT-BLADE

$25.99

$

In Stock, only 2 left!

0

18

Exmark 108-3766-03

SUPPORT-BLADE

$11.99

$

In Stock, only 1 left!

0

19

Exmark 138-3225

Disk

$13.99

$

In Stock, only 1 left!

0

20

Exmark 138-3217

RETAINER-BELT

$3.49

$

In Stock, Qty 20+

0

21

Exmark 116-3360-03

COVER-BBC

$74.99

$

In Stock, only 4 left!

0

22

Exmark 110-1790

BELT
(Superseded to 110-1790-SL)

$33.99

$

Usually ships in 3-6 days

0

23

Exmark 110-2142

SPACER-PULLEY

$23.99

$

In Stock, only 2 left!

0

24

Exmark 115-4471

SPRING-EXTENSION

$23.99

$

In Stock, only 1 left!

0

25

Exmark 3212-4

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.99

$

In Stock, Qty 20+

0

26

Exmark 3231-38

Bolt-Carriage 3/8-16 X 1 1/4

$8.49

$

In Stock, only 4 left!

0

27

Exmark 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

28

Exmark 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 5

0

29

Exmark 3296-27

NUT-LOCK, NI

$1.99

$

In Stock, Qty 8

0

30

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Exmark 32144-9

SCREW-TAP

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 33104-020

SCREW-HHF

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.99

$

In Stock, only 3 left!

0

33

Exmark 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 19

0

34

Exmark 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

35

Exmark 116-5005

Blade-Mulch, 20.5

Note: Optional Equipment

$

$

Currently unavailable

35

Exmark 133-8182

Blade-21In

Note: Optional Equipment

$

$

Currently unavailable

35

Exmark 133-8183

USE 133-8183-S
(Superseded to 133-8183-S)

Note: Optional Equipment

$31.99

$

In Stock, Qty 20+

0

35

Exmark 135-0413

Blade - Medium Lift, 20.5

$

$

Currently unavailable

36

Exmark 109-7299

BELT,3L P21 DRIVE
(Superseded to 109-7299-SL)

$29.99

$

In Stock, Qty 20+

0
