ECX180CKA210BC - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC (SN: 413950474 - 416150474) (Rev A) (2023) Handle Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC

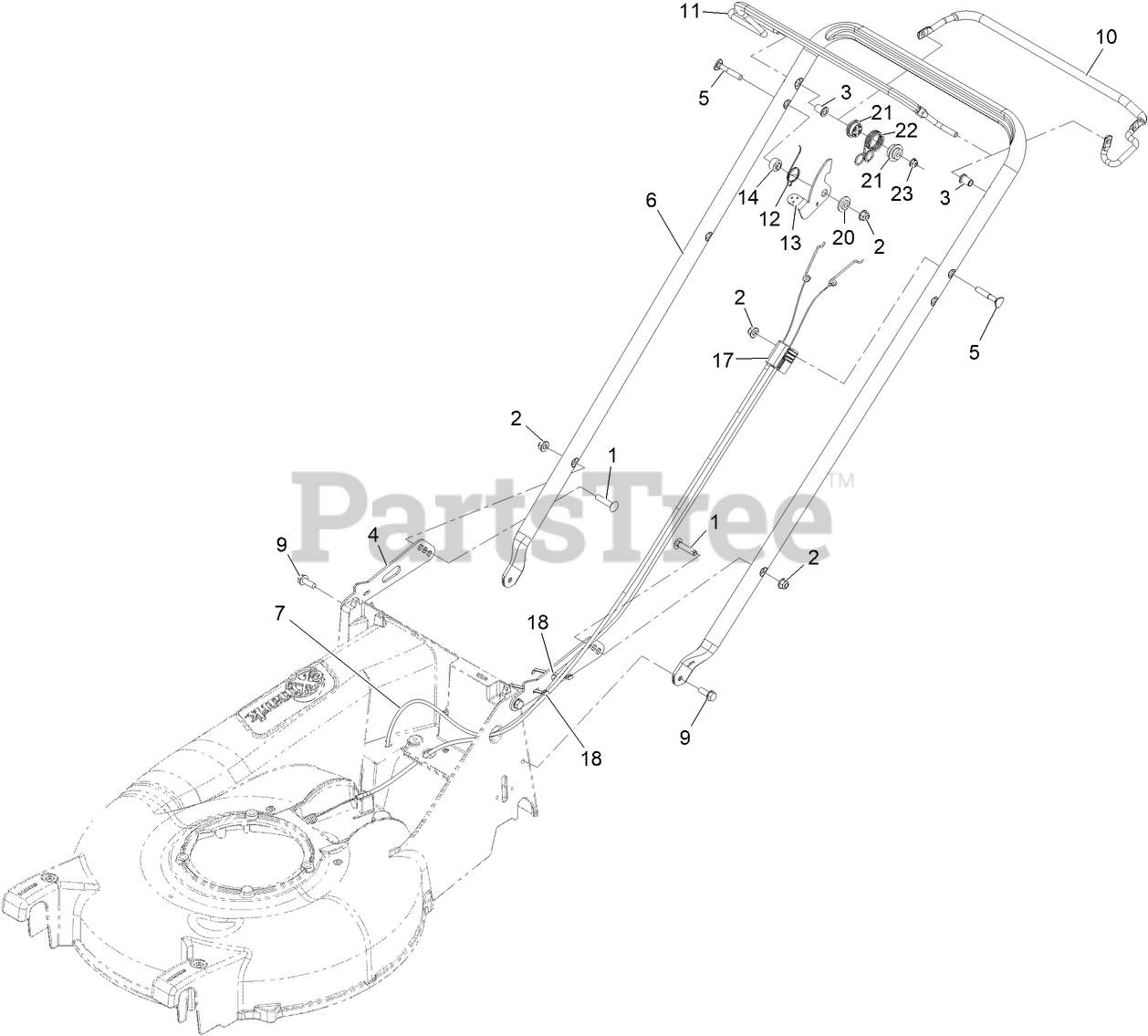

Handle Assembly Parts Diagram

  • Title

1

Exmark 33-5790

BOLT-CARR

$5.49

$

In Stock, only 2 left!

0

2

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

3

Exmark 116-1478

BUSHING-HANDLEBAR

$6.99

$

In Stock, Qty 6

0

4

Exmark 109-9323-03

BRACKET,HANDLEBAR

$9.49

$

In Stock, only 2 left!

0

5

Exmark 112-8876

92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

6

Exmark 142-8709-03

HANDLEBAR-EC21

$167.99

$

Usually ships in 3-6 days

0

7

Exmark 126-7397

CABLE, DRIVE EC21

$47.99

$

In Stock, Qty 15

0

9

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Exmark 116-7907

BAIL-DRIVE COATED

$54.99

$

In Stock, Qty 5

0

11

Exmark 109-8442

BAIL

$55.99

$

In Stock, only 2 left!

0

12

Exmark 109-9318

SPRING-LEVER, BBC

$6.99

$

In Stock, Qty 5

0

13

Exmark 116-2998

LEVER-BBC

$19.99

$

In Stock, only 2 left!

0

14

Exmark 116-2690

BUSHING-STEPPED

$14.99

$

In Stock, only 4 left!

0

17

Exmark 116-0901

CABLE-BBC

$39.99

$

In Stock, Qty 11

0

18

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 18

0

20

Exmark 105-3006

WASHER-STEPPED

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 109-8457

BUSHING-SPRING, PIVOT

$6.99

$

In Stock, Qty 8

0

22

Exmark 109-9293

SPRING,BBC RETURN

$13.99

$

Usually ships in 3-6 days

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
