ECX180GKA30000 - Exmark 30" X-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 417930746 & Above) (Rev B) (2025) Spindle and Blade Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kawasaki FJ180V

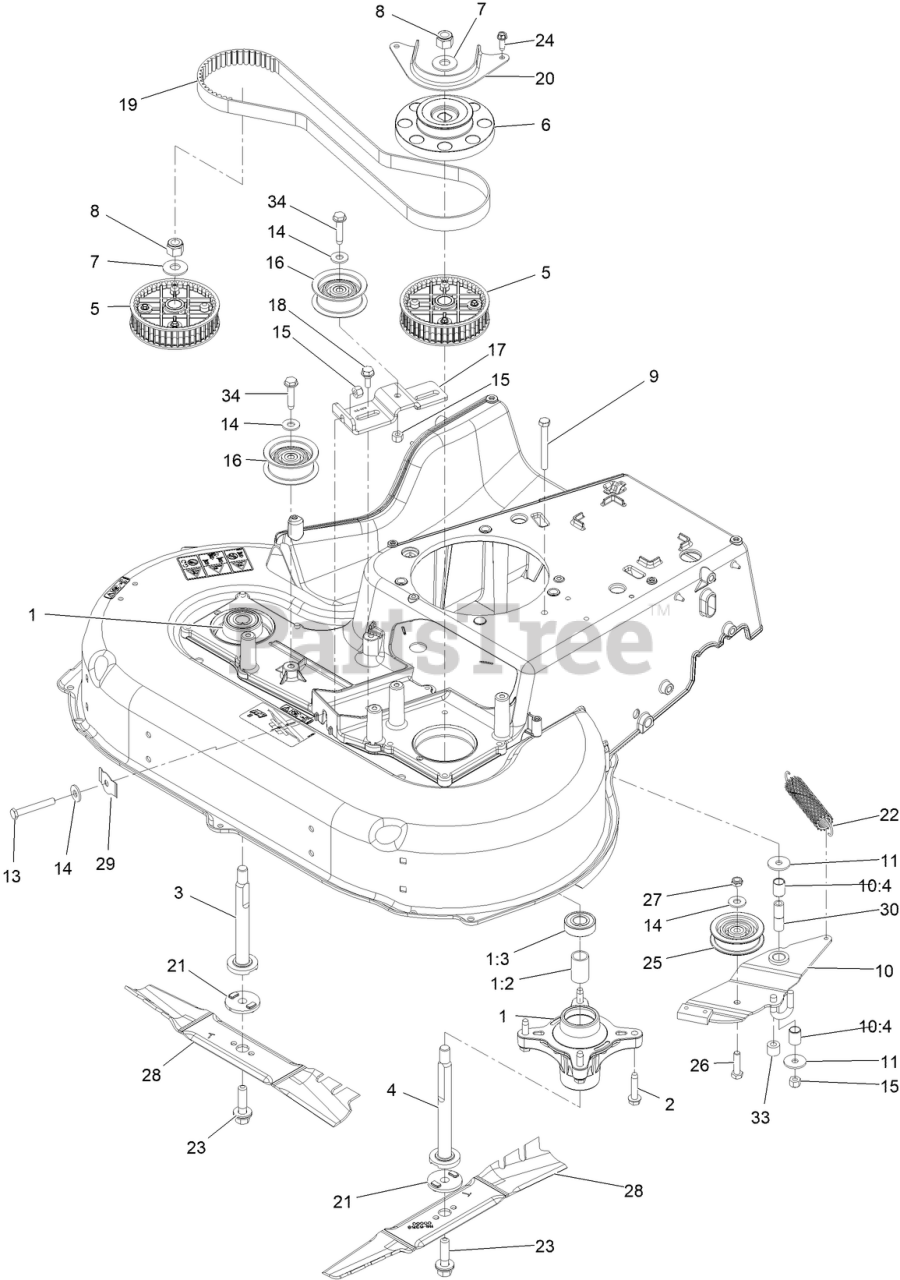

Spindle and Blade Assembly Parts Diagram

  • Title

1

Exmark 121-9107

SPINDLE ASM

$79.99

$

In Stock, Qty 10

0

1:2

Exmark 120-7935

SPACER

$2.49

$

In Stock, Qty 18

0

1:3

Exmark 138-9770

BEARING-BALL

$8.49

$

In Stock, Qty 6

0

2

Exmark 139-1731

SCREW-THD ROLL, HWH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 139-6612

SHAFT-SPINDLE

$33.99

$

In Stock, only 2 left!

0

4

Exmark 139-6613

SHAFT-SPINDLE

$33.99

$

In Stock, Qty 10

0

5

Exmark 121-9100

SPROCKET

$58.99

$

In Stock, Qty 20+

0

6

Exmark 130-6664

PULLEY-BRAKE, SPINDLE

$51.99

$

Usually ships in 3-6 days

0

7

Exmark 109-9505

WASHER-SPRING

$5.99

$

In Stock, Qty 13

0

8

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

9

Exmark 322-13

SCREW-HH

$3.99

$

In Stock, Qty 13

0

10

Exmark 136-5903

BRAKE ARM ASM

$71.99

$

In Stock, Qty 11

0

10:4

Exmark 131-0819

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 9

0

11

Exmark 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 7

0

13

Exmark 9114524

BOLT-TAP, HH
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

15

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 161-4815

IDLER-PULLEY

$17.99

$

In Stock, Qty 20+

0

17

Exmark 145-4016

BRACKET-IDLER

$9.49

$

In Stock, only 2 left!

0

18

Exmark 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

19

Exmark 120-3335

BELT-SYNCHRONOUS

$60.99

$

In Stock, Qty 20+

0

20

Exmark 120-5245-03

GUIDE-BELT, SPINDLE

$12.99

$

In Stock, only 2 left!

0

21

Exmark 120-5236

ADAPTER-BLADE

$7.49

$

In Stock, Qty 20+

0

22

Exmark 121-5808

SPRING-EXTENSION, BRAKE

$18.99

$

In Stock, only 2 left!

0

23

Exmark 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

24

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

25

Exmark 120-7082

PULLEY-IDLER

$25.99

$

In Stock, Qty 20+

0

26

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

27

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

28

Exmark 116-6358-03

BLADE-ROTARY

$23.99

$

In Stock, Qty 20+

0

29

Exmark 121-2336

SPRING-FLAT

$8.49

$

In Stock, Qty 20+

0

30

Exmark 131-0823

SPACER-BRAKE

$14.99

$

In Stock, Qty 6

0

33

Exmark 133-1964

HOSE-COOLANT

$2.99

$

In Stock, Qty 20+

0

34

Exmark 32144-57

SCREW

$2.99

$

In Stock, Qty 6

0
