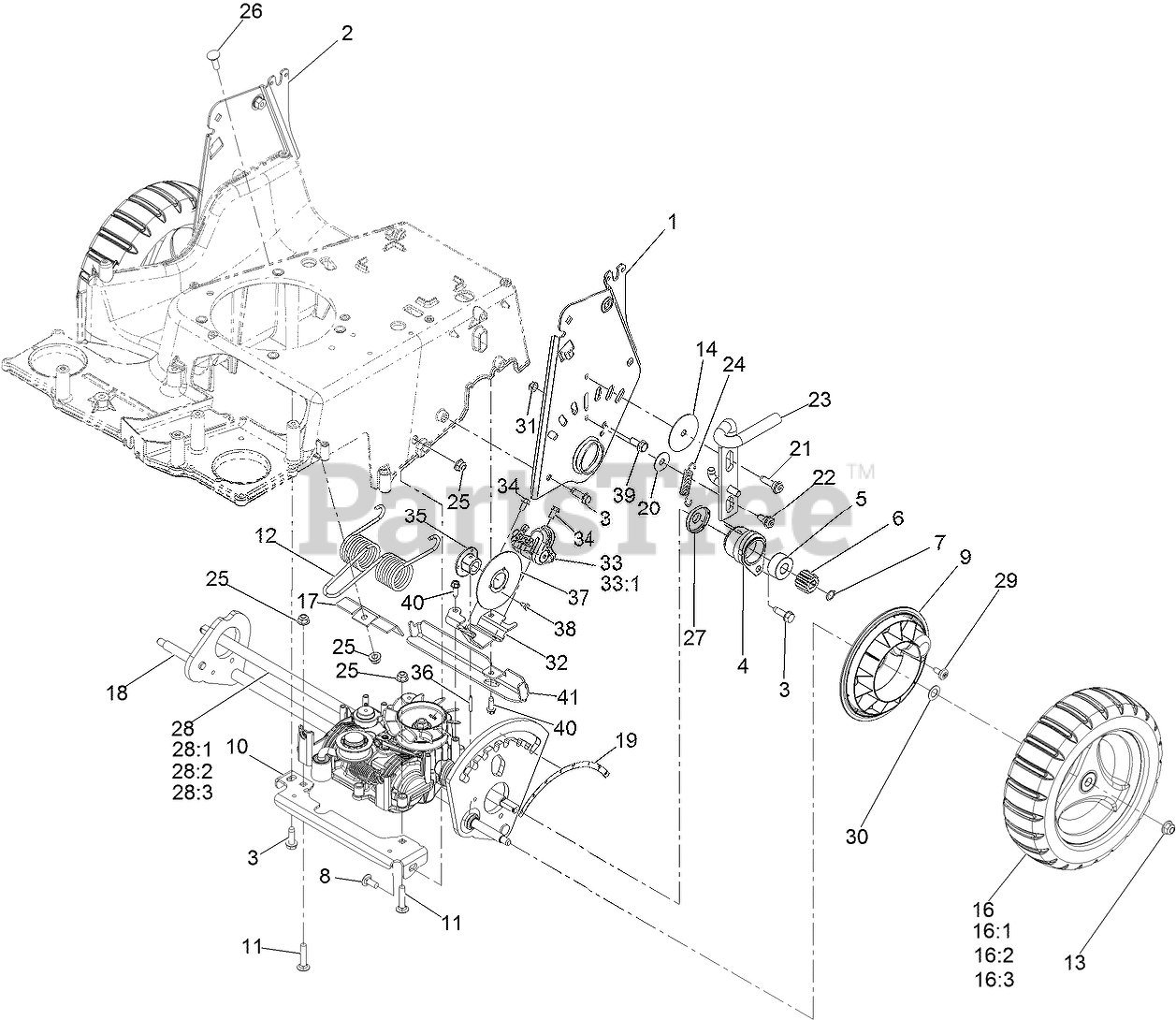

ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 406294345 - 408644345) (Rev B) (2020) Deck and Wheel Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kohler

Deck and Wheel Assembly Parts Diagram

  • Title

1

Exmark 137-9172-03

HOC Plate Assembly

$37.99

$

Usually ships in 3-6 days

0

2

Exmark 137-9173-03

HOC Plate Assembly

$37.99

$

Usually ships in 3-6 days

0

3

Exmark 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

4

Exmark 137-9183

Bearing Retainer ASM

$62.99

$

In Stock, Qty 20+

0

5

Exmark 137-4779

BEARING-BALL, CUSTOM

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 136-9111

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

7

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Exmark 136-7095

Cover-Wheel

$13.99

$

In Stock, Qty 5

0

10

Exmark 133-8104-03

Bracket-Transmission, Front

$18.99

$

Usually ships in 3-6 days

0

11

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, only 1 left!

0

12

Exmark 121-2368

SPRING-TORSION

$29.99

$

In Stock, only 2 left!

0

13

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 125-2540

WASHER-PLAIN

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 138-3213

WHEEL ASM, 10.5 W/GEAR

$130.99

$

Usually ships in 3-6 days

0

16:1

Exmark 138-3214

WHEEL ASM, 10.5

$95.99

$

Usually ships in 3-6 days

0

16:2

Exmark 136-7084

Gear-Wheel, 52T

$

$

Currently unavailable

16:3

Exmark 130-6426

STUD-DRIVE

$1.49

$

In Stock, Qty 10

0

17

Exmark 121-2397

BRACKET

$15.99

$

In Stock, only 1 left!

0

18

Exmark 139-8967

REAR AXLE ASM

$123.99

$

In Stock, only 3 left!

0

19

Exmark 116-7127

DECAL-HOC, REAR

$7.49

$

In Stock, only 2 left!

0

20

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

21

Exmark 119-2267

SCREW-SHOULDER, BHTF

$5.49

$

In Stock, Qty 7

0

22

Exmark 120-9471

BOLT-SHOULDER

$5.49

$

In Stock, Qty 12

0

23

Exmark 139-1737

LOCK-HEIGHT, ADJ

$27.99

$

Usually ships in 3-6 days

0

24

Exmark 138-5393

Wheel ASM, 10.5 W/Gear

$5.49

$

In Stock, Qty 10

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

27

Exmark 137-9185

COVER-BEARING

$1.49

$

In Stock, Qty 5

0

28

Exmark 133-2670

TRANSMISSION-MV702

$557.99

$

Usually ships in 3-6 days

0

28:1

Exmark 139-1837

Pulley & Fan Repair Kit

Note: Not illustrated

$47.99

$

In Stock, only 2 left!

0

28:2

Exmark 139-1842

Idler Pulley Repair Kit

Note: Not illustrated

$110.99

$

In Stock, Qty 6

0

28:3

Exmark 139-8974

Clutch Lever Repair Kit

Note: Not illustrated

$30.99

$

Usually ships in 3-6 days

0

29

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

30

Exmark 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 20+

0

31

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

32

Exmark 138-5394-03

Bracket-Mount, Brake

$18.99

$

Usually ships in 3-6 days

0

33

Exmark 138-5398

CALIPER-BRAKE, DISC

$81.99

$

In Stock, only 2 left!

0

33:1

Exmark 139-8999

Pad-Brake, Disc

Note: Not illustrated

$50.99

$

Usually ships in 3-6 days

0

34

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

35

Exmark 139-8990

Hub-Rotor

$6.99

$

In Stock, Qty 8

0

36

Exmark 933156

Pin-Roll

$1.49

$

In Stock, Qty 10

0

37

Exmark 138-5396

Disc-Rotor

$17.99

$

In Stock, only 2 left!

0

38

Exmark 139-8960

SCREW-TORX PH THD ROLL

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 609471

Screw

$4.99

$

In Stock, Qty 7

0

40

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

41

Exmark 140-1262-01

Bracket-Support, Cable

$14.99

$

Usually ships in 3-6 days

0
