ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 406294345 - 408644345) (Rev B) (2020)

30" X-Series Walk-Behind Mower, Kohler CV200

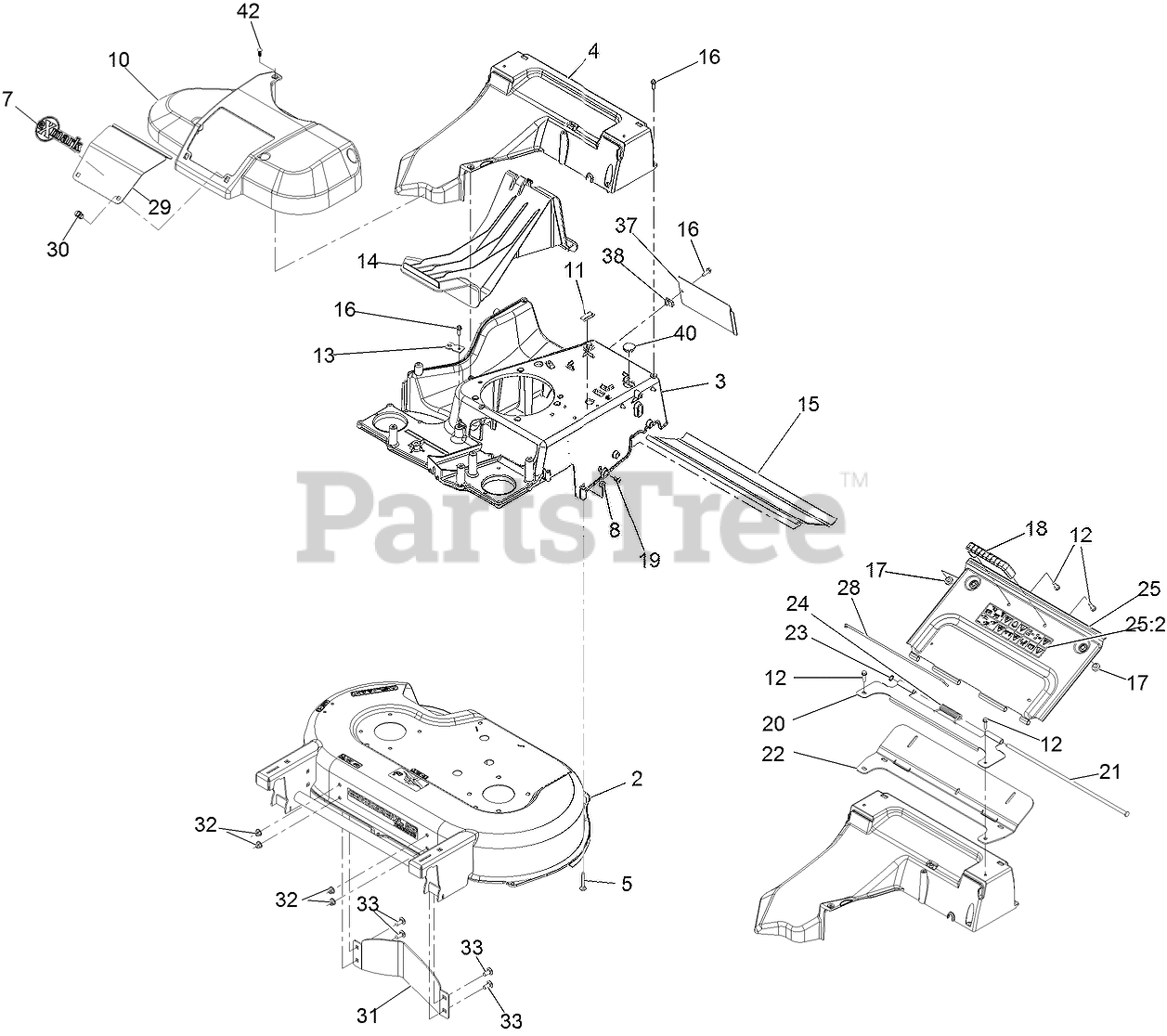

ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 406294345 - 408644345) (Rev B) (2020) > Parts Diagrams (14) > Deck, Frame, and Chute Assembly

  • Title
142-2491

2

DECK-30, X-SERIES W/DECALS

Part# 142-2491

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $320.24

133-8107-01

3

FRAME

Part# 133-8107-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $157.00

133-8177

4

CHUTE

Part# 133-8177

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.02

3230-5

5

BOLT-CAR

Part# 3230-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.76

126-6575

7

DECAL-EXMARK LOGO

Part# 126-6575

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.52

3296-29

8

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

139-5406

10

COVER-BELT

Part# 139-5406

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.71

126-4345

11

Decal-Patent Ttco.Com

Part# 126-4345

OEM Warranty Repair Part for Exmark

Currently unavailable

46-8091

12

SCREW-HWH

Part# 46-8091

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.64

138-3224

13

BRACKET-CABLE, TRACTION

Part# 138-3224

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

120-5225

14

PLUG-MULCH

Part# 120-5225

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.18

121-5841

15

SHIELD-TRAILING

Part# 121-5841

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.29

49-2040

16

SCREW-HWHTF

Part# 49-2040

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

1-513658

17

BUMPER

Part# 1-513658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

65-5100

18

HANDLE-DOOR

Part# 65-5100

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.63

117-1092

19

SCREW-PTH

Part# 117-1092

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

116-6351-03

20

BRACKET-HINGE

Part# 116-6351-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.06

116-6933

21

PIN-HINGE

Part# 116-6933

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.70

116-6229

22

SEAL-DOOR

Part# 116-6229

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.66

32151-72

23

RING-RETAINING

Part# 32151-72

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

116-7573

24

SPRING-TORSION, COVER

Part# 116-7573

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

116-8355

25

REAR DOOR ASM

Part# 116-8355

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.00

116-7583

25:2

DECAL-WARNING

Part# 116-7583

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.40

116-6966

28

CLIP-SEAL

Part# 116-6966

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.69

121-5793-03

29

DOOR-ACCESS

Part# 121-5793-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.76

121-5840

30

FASTENER

Part# 121-5840

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

130-2352-01

31

BAFFLE-CONTROL

Part# 130-2352-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.82

104-8300

32

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

3274-55

33

SCREW-HSBH

Part# 3274-55

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

138-5332-01

37

Cover-Frame

Part# 138-5332-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.87

107069

38

CLIP

Part# 107069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

126-7151

40

PLUG-BUTTON

Part# 126-7151

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

140-1341

42

Clip-Xmas Tree

Part# 140-1341

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.16

125-5072

99

FRAME PLATE KIT

Part# 125-5072

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $31.76

125-2542

99:1

PLATE-FRAME

Part# 125-2542

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.53

3229-3

99:2

SCREW-CARR

Part# 3229-3

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.35

3296-42

99:3

NUT-LOCK, NI

Part# 3296-42

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35
