ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 406294345 - 408644345) (Rev B) (2020) Handle Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kohler

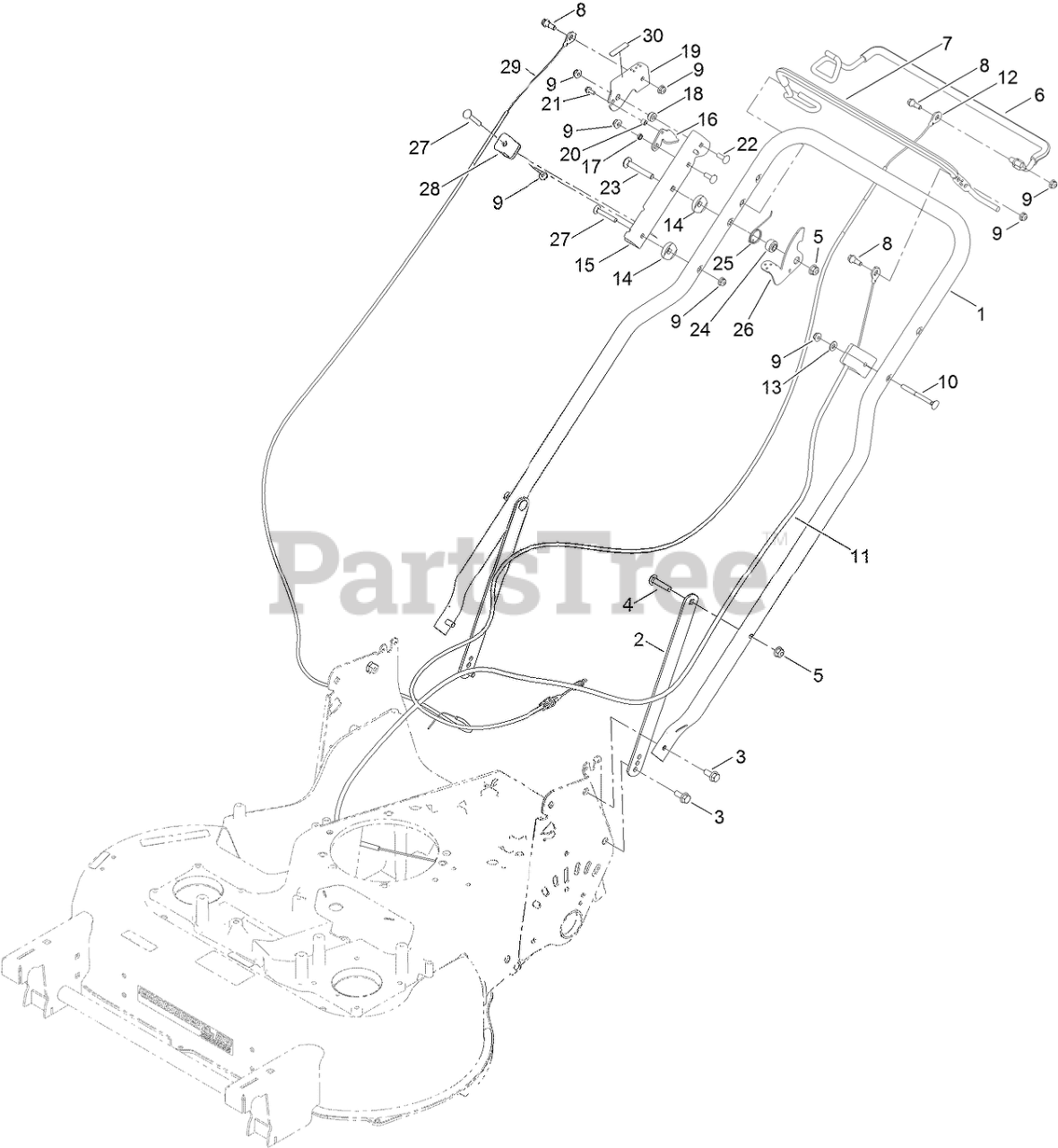

Handle Assembly Parts Diagram

  • Title

1

Exmark 137-4767-03

HANDLE

$

$

Not available

2

Exmark 116-8208-03

SUPPORT-HANDLE

$6.49

$

In Stock, only 3 left!

0

3

Exmark 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 9

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 139-1815

BAIL-TRACTION, COATED

$37.99

$

In Stock, Qty 8

0

7

Exmark 137-4810

BAIL-BBC, COATED

$38.99

$

In Stock, Qty 12

0

8

Exmark 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 18

0

9

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 92-2267

SCREW-HANDLE

$6.49

$

In Stock, only 4 left!

0

11

Exmark 137-4759

CABLE-BBC

$38.99

$

In Stock, Qty 20+

0

12

Exmark 137-4807

CABLE-TRACTION

$35.99

$

In Stock, Qty 16

0

13

Exmark 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

14

Exmark 106-7260

Washer-Curved

$9.49

$

Usually ships in 3-6 days

0

15

Exmark 139-1818-03

Mount-Lever, Brake

$23.99

$

Usually ships in 3-6 days

0

16

Exmark 139-1813

Link-Actuation, Brake

$2.99

$

In Stock, Qty 14

0

17

Exmark 138-5368

Spacer

$1.49

$

In Stock, only 4 left!

0

18

Exmark 139-1817

Washer-Stepped

$1.99

$

In Stock, only 4 left!

0

19

Exmark 139-1819

Lever-Brake

$7.99

$

In Stock, Qty 6

0

20

Exmark 117-9965

Spacer

$8.99

$

In Stock, only 1 left!

0

21

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

22

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

23

Exmark 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

24

Exmark 116-2690

BUSHING-STEPPED

$13.99

$

In Stock, only 1 left!

0

25

Exmark 109-9318

SPRING-LEVER, BBC

$6.49

$

In Stock, only 1 left!

0

26

Exmark 116-2998

LEVER-BBC

$18.99

$

In Stock, only 2 left!

0

27

Exmark 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 6

0

28

Exmark 106-6801

Anchor-Cable

$7.99

$

In Stock, Qty 13

0

29

Exmark 138-5399

CABLE-BRAKE, PARKING

$38.99

$

In Stock, Qty 6

0

30

Exmark 139-5405

DECAL-BRAKE, PARKING

$2.99

$

Usually ships in 3-6 days

0

99

Exmark 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0
