ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 406294345 - 408644345) (Rev B) (2020)

30" X-Series Walk-Behind Mower, Kohler CV200

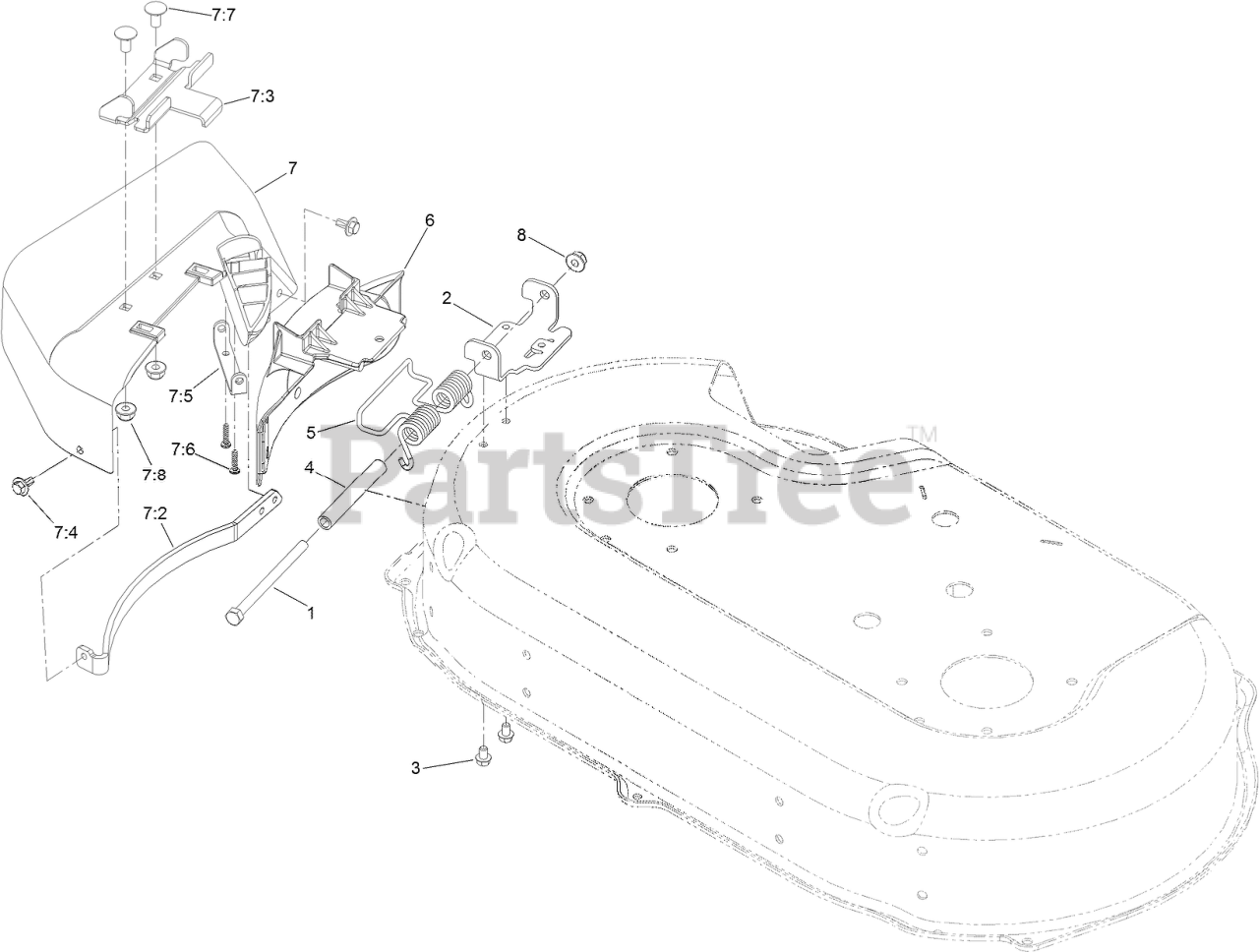

ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 406294345 - 408644345) (Rev B) (2020) > Parts Diagrams (14) > Side Discharge Chute Assembly

  • Title
322-38

1

SCREW-HH

Part# 322-38

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.84

121-9195

2

HINGE

Part# 121-9195

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.40

99-8445

3

SCREW-HWH

Part# 99-8445

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.58

125-2478

4

SPACER

Part# 125-2478

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

121-9193

5

SPRING-TORSION

Part# 121-9193

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.06

125-5093-01

6

COVER-DISCHARGE

Part# 125-5093-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.71

116-9754

7

SIDE DISCHARGE CHUTE ASM

Part# 116-9754

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $43.47

116-9752-03

7:2

GUARD-CHUTE

Part# 116-9752-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.47

121-9196

7:3

BRACKET-CHUTE

Part# 121-9196

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.79

46-8560

7:4

SCREW-HHFTF

Part# 46-8560

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

112-6416

7:5

BRACKET-COVER

Part# 112-6416

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

94-4496

7:6

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3230-18

7:7

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

104-8300

7:8

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

104-8300

8

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79
