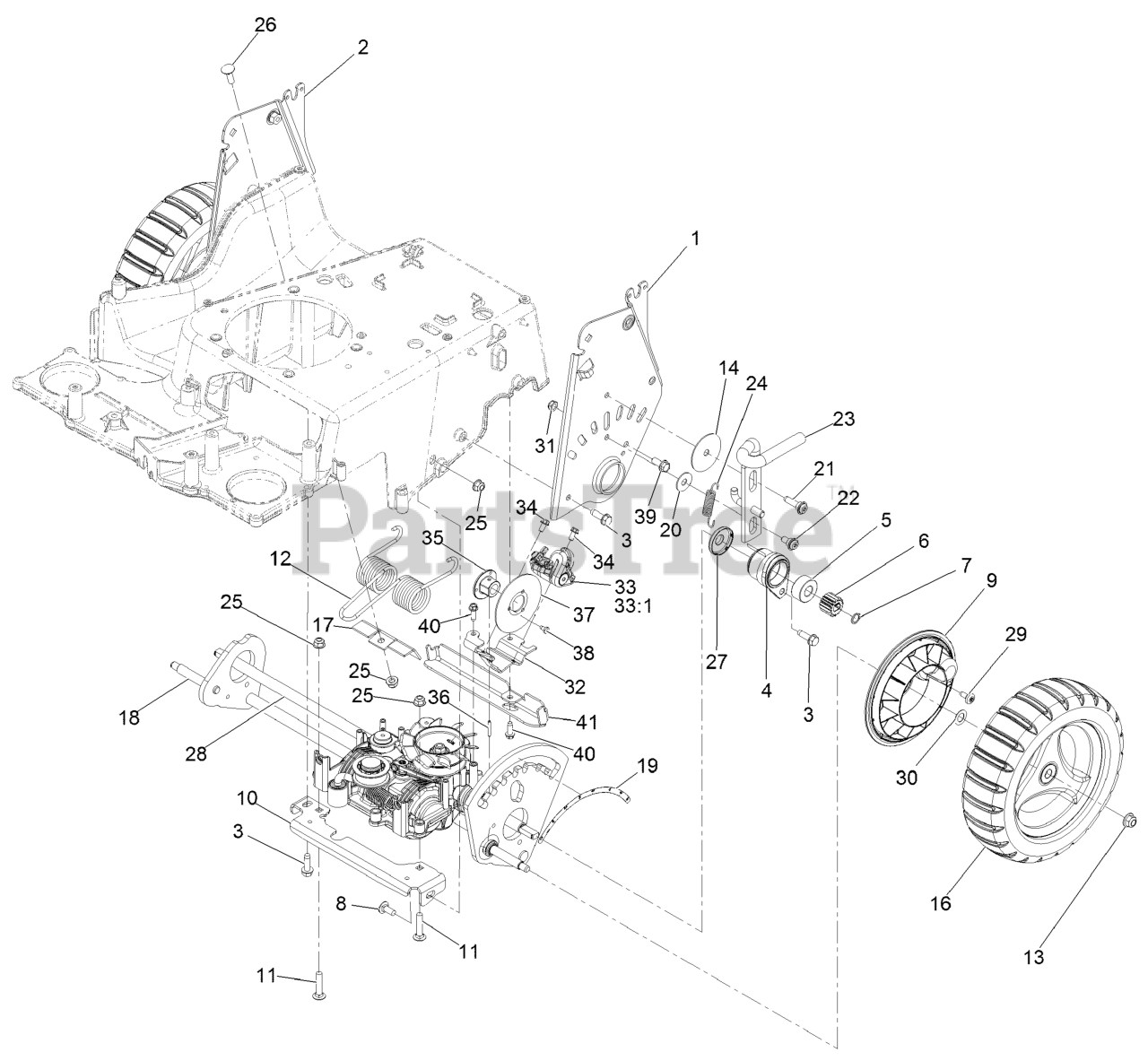

ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 406294345 - 408644345) (Rev B) (2020) > Parts Diagrams (14) > Transmission and Wheel Assembly

  • Title
137-9172-03

1

HOC Plate Assembly

Part# 137-9172-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.47

137-9173-03

2

HOC Plate Assembly

Part# 137-9173-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.47

701243

3

SCREW-THD ROLL, HWH

Part# 701243

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

137-9183

4

Bearing Retainer ASM

Part# 137-9183

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $37.97

137-4779

5

BEARING-BALL, CUSTOM

Part# 137-4779

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.05

136-9111

6

GEAR-PINION, 15T

Part# 136-9111

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.37

32151-61

7

RING-RETAINING

Part# 32151-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

3230-23

8

SCREW-CARR

Part# 3230-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

136-7095

9

Cover-Wheel

Part# 136-7095

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

133-8104-03

10

Bracket-Transmission, Front

Part# 133-8104-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.40

3230-4

11

BOLT-CARR

Part# 3230-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.93

121-2368

12

SPRING-TORSION

Part# 121-2368

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.06

104-8301

13

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89

125-2540

14

WASHER-PLAIN

Part# 125-2540

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

138-3213

16

Wheel ASM, 10.5 W/Gear

Part# 138-3213

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $83.84

121-2397

17

BRACKET

Part# 121-2397

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.24

139-8967

18

REAR AXLE ASM

Part# 139-8967

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $76.26

116-7127

19

DECAL-HOC, REAR

Part# 116-7127

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.69

52-2860

20

WASHER

Part# 52-2860

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

119-2267

21

SCREW-SHOULDER, BHTF

Part# 119-2267

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.34

120-9471

22

BOLT-SHOULDER

Part# 120-9471

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.34

139-1737

23

LOCK-HEIGHT, ADJ

Part# 139-1737

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.14

138-5393

24

Wheel ASM, 10.5 W/Gear

Part# 138-5393

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.34

104-8300

25

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

3230-2

26

BOLT-CARR

Part# 3230-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.05

137-9185

27

COVER-BEARING

Part# 137-9185

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.16

133-2670

28

TRANSMISSION-MV702

Part# 133-2670

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $381.27

120-7950

29

SCREW-SHOULDER

Part# 120-7950

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

36-4780

30

WASHER-PLAIN

Part# 36-4780

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

3296-47

31

NUT-LOCK, NI

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

138-5394-03

32

Bracket-Mount, Brake

Part# 138-5394-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.40

138-5398

33

CALIPER-BRAKE, DISC

Part# 138-5398

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $50.23

139-8999

33:1

Pad-Brake, Disc

Part# 139-8999

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.98

32144-4

34

SCREW-HWH

Part# 32144-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.35

139-8990

35

Hub-Rotor

Part# 139-8990

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.50

933156

36

Pin-Roll

Part# 933156

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

138-5396

37

Disc-Rotor

Part# 138-5396

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.27

139-8960

38

SCREW-TORX PH THD ROLL

Part# 139-8960

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

609471

39

Screw

Part# 609471

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.13

49-2040

40

SCREW-HWHTF

Part# 49-2040

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

140-1262-01

41

Bracket-Support, Cable

Part# 140-1262-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.02
