ECX200GKC300CS - Exmark 30" X-Series Walk-Behind Mower, Kohler ECV200 (SN: 417930746 & Above) (Rev A) (2025) Deck, Frame, and Chute Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kohler ECV200

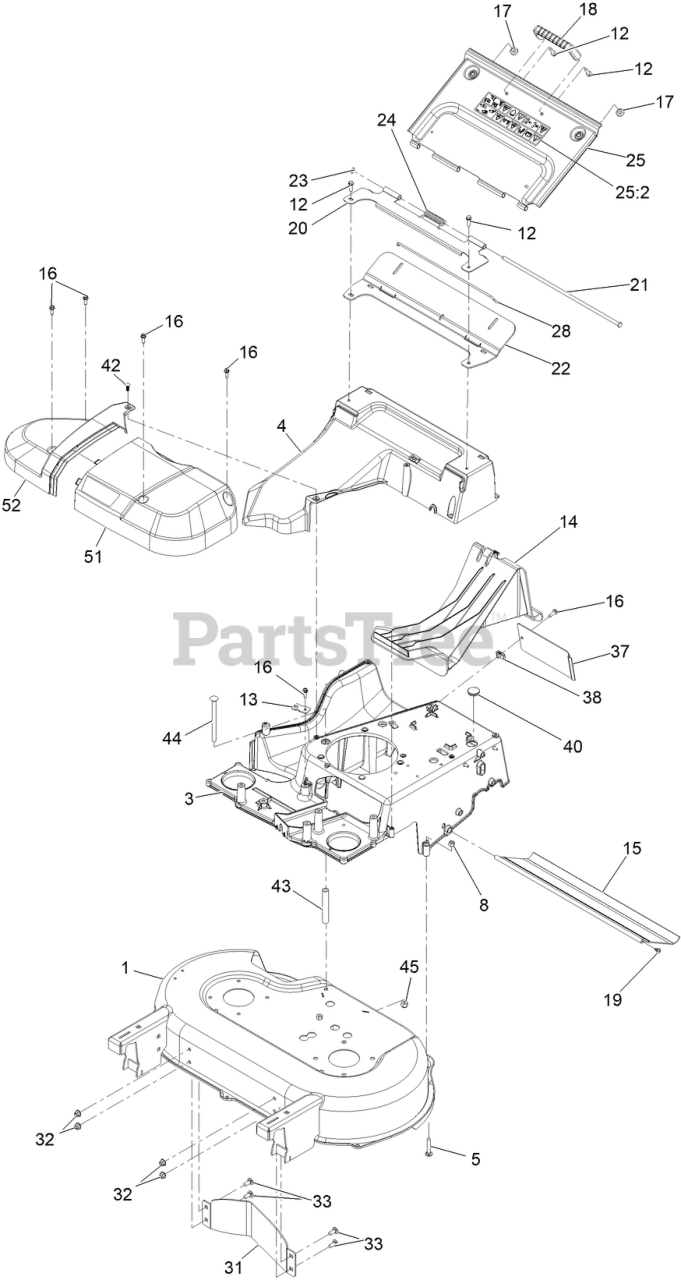

Deck, Frame, and Chute Assembly Parts Diagram

  • Title

1

Exmark 163-7227

Deck-30In

$

$

Currently unavailable

3

Exmark 145-3920-01

FRAME-30

$254.99

$

Usually ships in 3-6 days

0

4

Exmark 133-8177

CHUTE

$63.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0

8

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Exmark 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

13

Exmark 138-3224

BRACKET-CABLE, TRACTION

$2.99

$

In Stock, only 3 left!

0

14

Exmark 120-5225

PLUG-MULCH

$33.99

$

In Stock, Qty 19

0

15

Exmark 121-5841

SHIELD-TRAILING

$25.99

$

In Stock, Qty 11

0

16

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

18

Exmark 65-5100

HANDLE-DOOR

$10.99

$

In Stock, only 2 left!

0

19

Exmark 139-1692

SCREW-PTH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 142-8180-03

Weld-Tank Mount

$75.99

$

Usually ships in 0 days

0

21

Exmark 116-6933

PIN-HINGE

$9.49

$

In Stock, Qty 5

0

22

Exmark 116-6229

SEAL-DOOR

$26.99

$

In Stock, Qty 11

0

23

Exmark 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

24

Exmark 116-7573

SPRING-TORSION, COVER

$5.99

$

In Stock, Qty 11

0

25

Exmark 116-8355

REAR DOOR ASM

$79.99

$

In Stock, only 4 left!

0

25:2

Exmark 116-7583

DECAL-WARNING

$20.99

$

In Stock, Qty 9

0

28

Exmark 116-6966

CLIP-SEAL

$7.49

$

In Stock, Qty 16

0

31

Exmark 130-2352-01

BAFFLE-CONTROL

$29.99

$

Usually ships in 3-6 days

0

32

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 11

0

33

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

37

Exmark 138-5332-01

Cover-Frame

$9.49

$

In Stock, only 2 left!

0

38

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

40

Exmark 126-7151

PLUG-BUTTON

$5.99

$

In Stock, Qty 17

0

42

Exmark 140-1341

Clip-Xmas Tree

$1.49

$

In Stock, only 4 left!

0

43

Exmark 145-3921

SPACER

$16.99

$

Usually ships in 3-6 days

0

44

Exmark 109-6795

BOLT-CARR

$5.49

$

In Stock, only 4 left!

0

45

Exmark 137-3087

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

51

Exmark 161-6633

Cover-Belt, LH

$

$

Currently unavailable

52

Exmark 161-6632

Cover-Belt, RH

$

$

Currently unavailable
