ECX200GKC300CS - Exmark 30" X-Series Walk-Behind Mower, Kohler ECV200 (SN: 417930746 & Above) (Rev A) (2025) Handle Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kohler ECV200

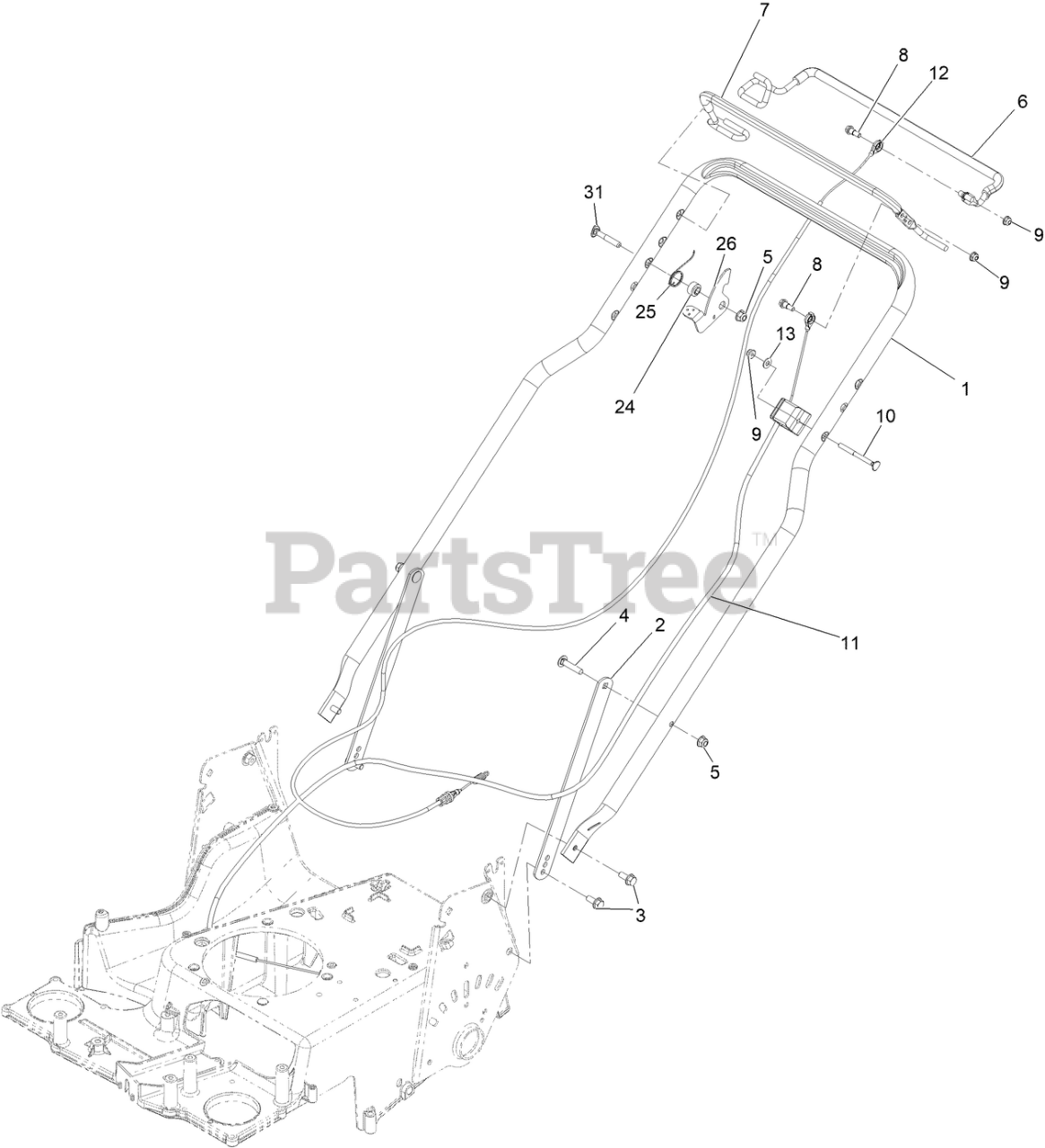

Handle Assembly Parts Diagram

  • Title

1

Exmark 147-0540-03

HANDLE

$114.99

$

In Stock, only 1 left!

0

2

Exmark 116-8208-03

SUPPORT-HANDLE

$7.49

$

In Stock, Qty 12

0

3

Exmark 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, only 2 left!

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

6

Exmark 139-1815

BAIL-TRACTION, COATED

$42.99

$

In Stock, Qty 9

0

7

Exmark 137-4810

BAIL-BBC, COATED

$43.99

$

In Stock, Qty 9

0

8

Exmark 42-3560

BOLT-SHOULDER

$6.49

$

In Stock, only 2 left!

0

9

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 140-3985

Screw-Handle

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 137-4759

CABLE-BBC

$38.99

$

In Stock, Qty 20+

0

12

Exmark 137-4807

CABLE-TRACTION

$39.99

$

In Stock, Qty 20+

0

13

Exmark 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 13

0

24

Exmark 116-2690

BUSHING-STEPPED

$14.99

$

In Stock, only 4 left!

0

25

Exmark 109-9318

SPRING-LEVER, BBC

$6.99

$

In Stock, Qty 5

0

26

Exmark 116-2998

LEVER-BBC

$19.99

$

In Stock, only 2 left!

0

31

Exmark 112-8876

92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

99

Exmark 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 18

0
