30" X-Series Walk-Behind Mower, Kohler ECV200

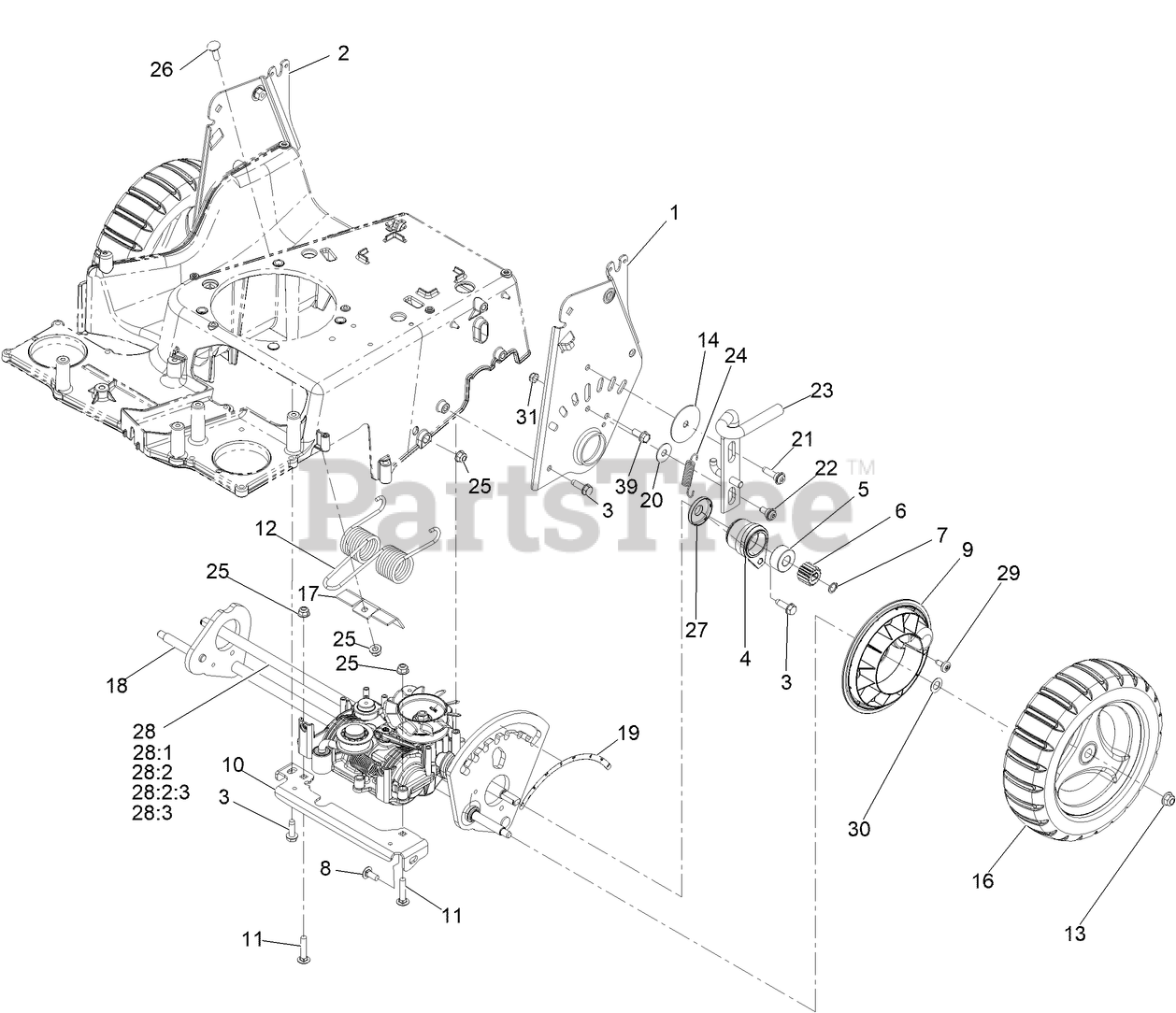

Transmission and Wheel Assembly Parts Diagram

  • Title

1

Exmark 137-9172-03

HOC Plate Assembly

$38.99

$

Usually ships in 3-6 days

0

2

Exmark 137-9173-03

HOC Plate Assembly

$38.99

$

Usually ships in 3-6 days

0

3

Exmark 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

4

Exmark 137-9183

Bearing Retainer ASM

$64.99

$

In Stock, Qty 20+

0

5

Exmark 137-4779

BEARING-BALL, CUSTOM

$17.99

$

In Stock, Qty 5

0

6

Exmark 136-9111

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

7

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Exmark 136-7095

Cover-Wheel

$13.99

$

In Stock, only 2 left!

0

10

Exmark 133-8104-03

Bracket-Transmission, Front

$18.99

$

Usually ships in 3-6 days

0

11

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, only 2 left!

0

12

Exmark 121-2368

SPRING-TORSION

$30.99

$

In Stock, only 2 left!

0

13

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 125-2540

WASHER-PLAIN

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 138-3213

WHEEL ASM, 10.5 W/GEAR

$130.99

$

In Stock, only 2 left!

0

17

Exmark 121-2397

BRACKET

$15.99

$

In Stock, only 2 left!

0

18

Exmark 139-8967

REAR AXLE ASM

$128.99

$

In Stock, only 2 left!

0

19

Exmark 116-7127

DECAL-HOC, REAR

$7.49

$

Usually ships in 3-6 days

0

20

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

21

Exmark 119-2267

SCREW-SHOULDER, BHTF

$5.49

$

In Stock, only 4 left!

0

22

Exmark 120-9471

BOLT-SHOULDER

$5.49

$

In Stock, Qty 11

0

23

Exmark 139-1737

LOCK-HEIGHT, ADJ

$28.99

$

In Stock, only 1 left!

0

24

Exmark 138-5393

Wheel ASM, 10.5 W/Gear

$5.99

$

In Stock, Qty 7

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

26

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, only 1 left!

0

27

Exmark 137-9185

COVER-BEARING

$1.49

$

In Stock, only 4 left!

0

28

Exmark 133-2670

TRANSMISSION-MV702

$560.99

$

Usually ships in 3-6 days

0

28:1

Exmark 139-1837

Pulley & Fan Repair Kit

$52.99

$

In Stock, only 2 left!

0

28:2

Exmark 139-1842

Idler Pulley Repair Kit

$123.99

$

In Stock, Qty 17

0

28:2:3

Exmark 139-1845

Spring-Tension, Belt

$5.99

$

In Stock, Qty 20+

0

28:3

Exmark 139-8974

Clutch Lever Repair Kit

$31.99

$

Usually ships in 3-6 days

0

29

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 14

0

31

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

39

Exmark 609471

Screw

$4.99

$

In Stock, only 2 left!
