ECXHN21 - Exmark 21" X-Series Walk-Behind Mower, Honda GXV (SN: 313000000 - 313999999) (2013) Handle Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Honda GXV

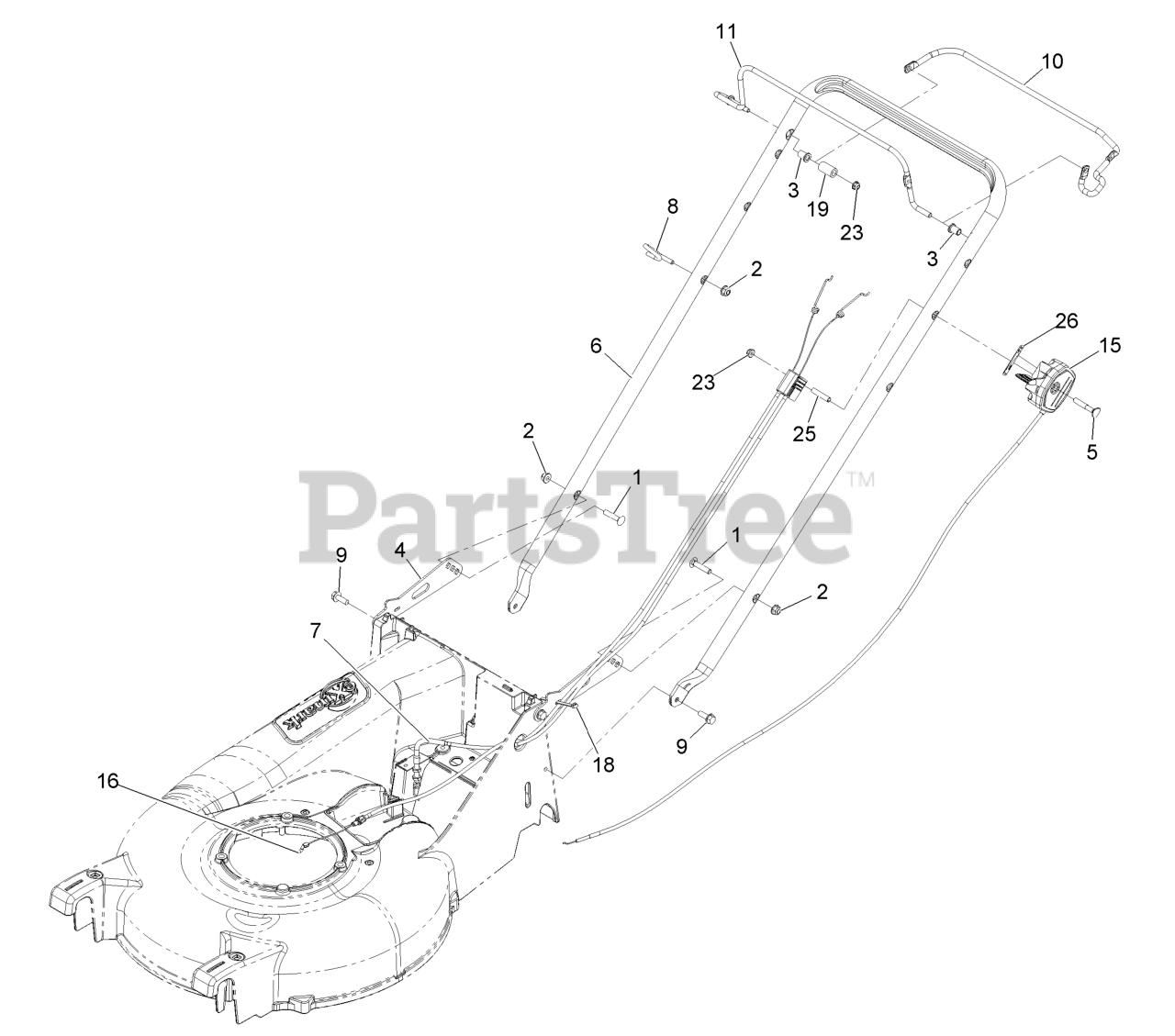

Handle Assembly Parts Diagram

  • Title

1

Exmark 33-5790

BOLT-CARR

$5.49

$

In Stock, only 2 left!

0

2

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-1478

BUSHING-HANDLEBAR

$6.49

$

In Stock, Qty 15

0

4

Exmark 109-9323-03

BRACKET,HANDLEBAR

$8.49

$

Usually ships in 3-6 days

0

5

Exmark 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

6

Exmark 116-0119-03

HANDLEBAR-P21

$138.99

$

In Stock, only 1 left!

0

7

Exmark 116-0904

126-7397
(Superseded to 126-7397)

$44.99

$

In Stock, Qty 11

0

8

Exmark 116-1056

GUIDE,ROPE

$6.49

$

In Stock, only 2 left!

0

9

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Exmark 116-7907

BAIL-DRIVE COATED

$49.99

$

In Stock, Qty 20+

0

11

Exmark 109-8442

BAIL

$58.99

$

In Stock, Qty 11

0

15

Exmark 116-4424

CABLE-THROTTLE/CHOKE

$70.99

$

In Stock, only 2 left!

0

16

Exmark 116-4443

CABLE-ZONE HONDA

$46.99

$

Usually ships in 3-6 days

0

18

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-603401

SPACER

$6.99

$

In Stock, Qty 19

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 116-3035

SPACER-THROTTLE

$6.99

$

Usually ships in 3-6 days

0

26

Exmark 103-6327

DECAL,THROTTLE/CHOKE

$6.49

$

Usually ships in 3-6 days

0
