ECXHNBBC21 - Exmark 21" X-Series Walk-Behind Mower, Honda GXV, BBC (SN: 000920000 - 000999999) (2011) Blade Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Honda GXV, BBC

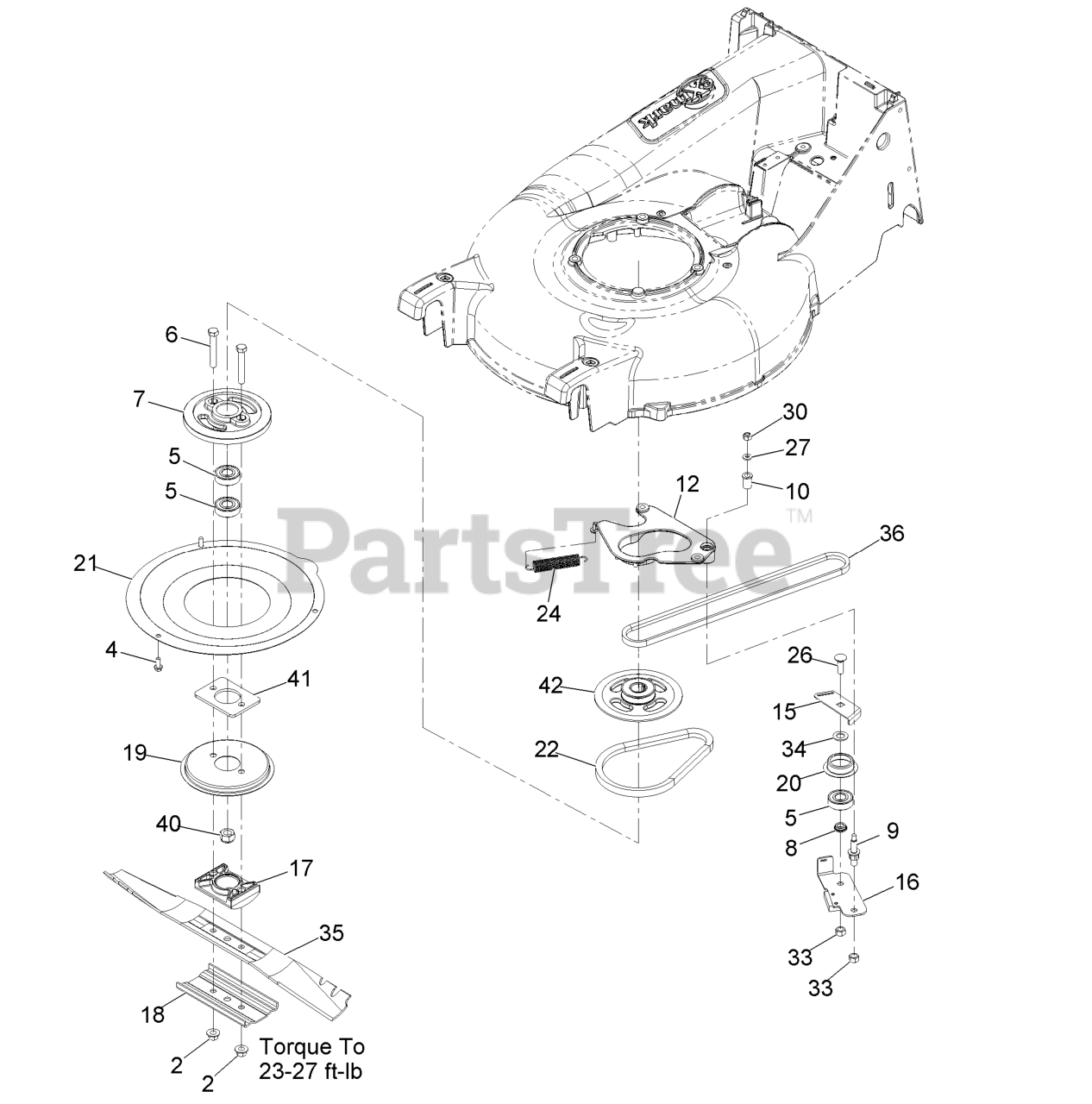

Blade Assembly Parts Diagram

  • Title

2

Exmark 54-9190

Nut-Hex 3/8-24 Lock
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

4

Exmark 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

5

Exmark 100-1048

38-7820
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

6

Exmark 104-5937

SCREW-HH

$4.49

$

In Stock, Qty 9

0

7

Exmark 107-0754

126-8108
(Superseded to 126-8108)

$54.99

$

In Stock, only 1 left!

0

8

Exmark 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 15

0

9

Exmark 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 20+

0

10

Exmark 107-0797

BUSHING

$6.49

$

In Stock, Qty 20+

0

12

Exmark 109-7243

PLATE,ANCHOR

$26.99

$

Usually ships in 3-6 days

0

15

Exmark 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.49

$

In Stock, only 3 left!

0

16

Exmark 107-7477

125-1063
(Superseded to 125-1063)

$23.99

$

In Stock, Qty 20+

0

17

Exmark 107-7487

SUPPORT-BLADE

$21.99

$

In Stock, only 2 left!

0

18

Exmark 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

19

Exmark 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, only 1 left!

0

20

Exmark 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$2.99

$

In Stock, Qty 20+

0

21

Exmark 116-3360-03

COVER-BBC

$62.99

$

In Stock, only 4 left!

0

22

Exmark 110-1790

BELT
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

24

Exmark 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 20+

0

26

Exmark 3231-38

SCREW-CARR

$7.99

$

In Stock, only 1 left!

0

27

Exmark 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Exmark 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0

34

Exmark 605256

SPACER

$2.99

$

In Stock, Qty 9

0

35

Exmark 108-0954-03

133-8182-S
(Superseded to 133-8182-S)

$20.99

$

In Stock, only 3 left!

0

36

Exmark 109-7299

BELT,3L P21 DRIVE
(Superseded to 109-7299-SL)

$28.99

$

In Stock, Qty 17

0

40

Exmark 108-9342

NUT-HEX

$5.49

$

In Stock, only 2 left!

0

41

Exmark 116-2666

SPACER

$14.99

$

Usually ships in 3-6 days

0

42

Exmark 110-7456

PULLEY

$56.99

$

Usually ships in 3-6 days

0
