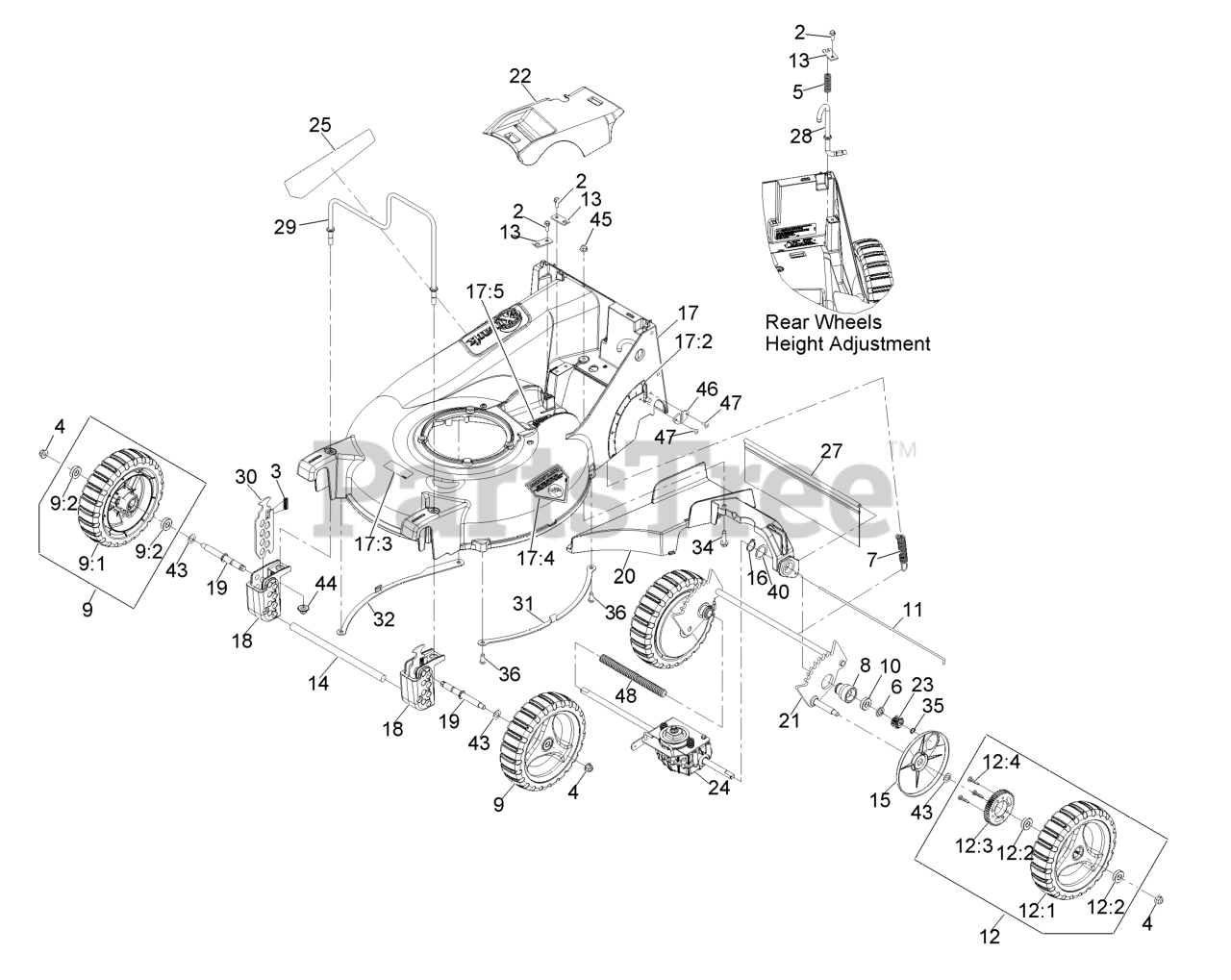

ECXHNBBC21 - Exmark 21" X-Series Walk-Behind Mower, Honda GXV, BBC (SN: 000920000 - 000999999) (2011) > Parts Diagrams (7) > Deck And Wheel Assembly

  • Title
32144-85

2

Screw-Hwh 1/4-20 X .62

Part# 32144-85

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

109-7258

3

Spring-Compression

Part# 109-7258

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

104-8301

4

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

109-7694

5

Spring-Compression

Part# 109-7694

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.82

108-5059

6

Spacer-Bushing

Part# 108-5059

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.21

109-7692

7

Spring-Extension

Part# 109-7692

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.79

109-7274

8

Housing,Bearing

Part# 109-7274 (Superseded to 116-6172)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.45

109-8016

9

Asm,Wheel And Tire With Bearing

Part# 109-8016 (Superseded to 126-7347)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $66.05

109-8033

9:1

Asm,Wheel 9"

Part# 109-8033 (Superseded to 126-7345)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.37

109-8020

9:2

Bearing-Ball

Part# 109-8020 (Superseded to 52-2450)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.67

109-8020

10

Bearing-Ball

Part# 109-8020 (Superseded to 52-2450)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.67

109-8025

11

Rod,Shield

Part# 109-8025

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.00

109-8032

12

Asm,Rear Wheel 9"

Part# 109-8032 (Superseded to 135-0203)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $72.18

109-8033

12:1

Asm,Wheel 9"

Part# 109-8033 (Superseded to 126-7345)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.37

109-8020

12:2

Bearing-Ball

Part# 109-8020 (Superseded to 52-2450)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.67

109-7264

12:3

Gear

Part# 109-7264

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.53

27-6260

12:4

Screw-Drive

Part# 27-6260

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

109-8441

13

Bracket,Mount

Part# 109-8441

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.71

109-8454

14

Rod,Bumper

Part# 109-8454

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.87

109-9287

15

Cover,Gear

Part# 109-9287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.00

32151-36

16

Ring-Retaining

Part# 32151-36

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.87

116-2006

17

Deck W/Decals

Part# 116-2006

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $545.08

116-1922

17:2

Decal-Height Of Cut

Part# 116-1922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.15

68-7410

17:3

Decal-Blade

Part# 68-7410

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.03

94-8072

17:4

Decal-Danger

Part# 94-8072

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.15

109-9317

17:5

Decal-Cover Missing

Part# 109-9317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.86

109-9302

18

Block,Front Quadrant

Part# 109-9302

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.29

116-0994

19

Axle,Wheel

Part# 116-0994

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

109-9310-01

20

Bkt,Trans Support/Chute

Part# 109-9310-01 (Superseded to 116-9646-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $39.14

109-9312

21

Wld,Rear Axle P21

Part# 109-9312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $85.24

109-9324

22

Cover,Belt

Part# 109-9324

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.58

110-9417

23

Gear-Pinion, 15t

Part# 110-9417 (Superseded to 131-5399)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

116-0103

24

Asm,Transmission W/Bracket

Part# 116-0103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $207.45

116-4385

25

Decal-Comm 21 X-Series

Part# 116-4385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.71

116-0252

27

Shield-Trailing P21

Part# 116-0252

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.18

116-0329

28

Rod-Height Adj P21

Part# 116-0329

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.44

116-0522

29

Guard,Engine

Part# 116-0522

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.05

109-9292

30

Plate, Front Height

Part# 109-9292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.58

116-0995-03

31

Skid,Lh

Part# 116-0995-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $32.21

116-0996-03

32

Skid,Rh

Part# 116-0996-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $32.21

32144-49

34

Screw-Hwh 5/16-18 1 1/4 Tf

Part# 32144-49

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.92

32151-61

35

Ring-Retaining

Part# 32151-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

613381

36

Screw-Button Head 5/16-18 X .725 Tf

Part# 613381

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

74-1810

40

Washer

Part# 74-1810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.36

36-4780

43

Washer

Part# 36-4780

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.28

109-6658

44

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

104-8300

45

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

116-2221

46

Plate,Wear

Part# 116-2221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.15

114439

47

Rivet

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.63

117-5260

48

Cover-Shaft, Drive

Part# 117-5260

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.79
