ECXHNBBC21 - Exmark 21" X-Series Walk-Behind Mower, Honda GXV, BBC (SN: 312000000 - 312999999) (2012)

21" X-Series Walk-Behind Mower, Honda GXV, BBC

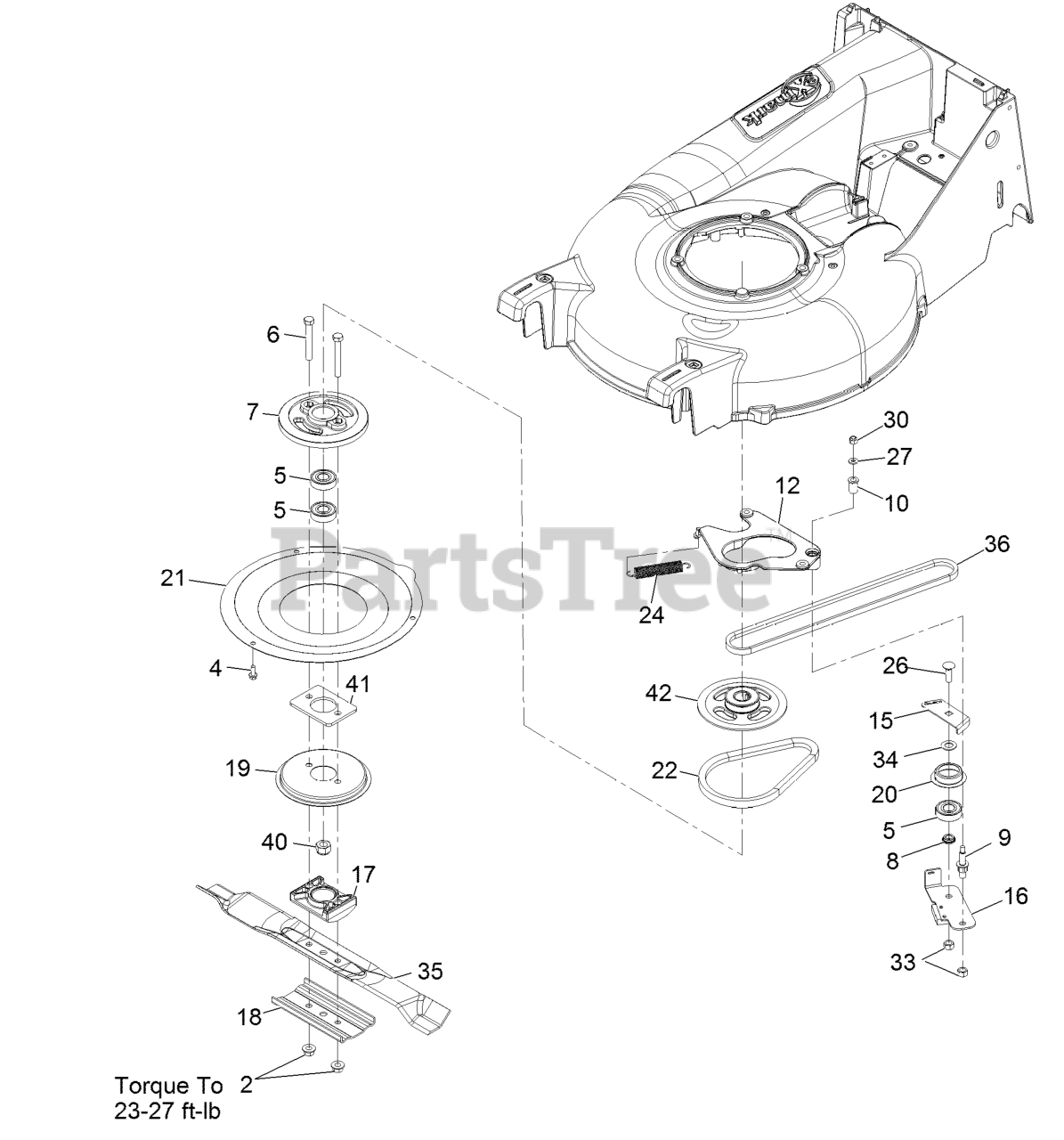

ECXHNBBC21 - Exmark 21" X-Series Walk-Behind Mower, Honda GXV, BBC (SN: 312000000 - 312999999) (2012) > Parts Diagrams (6) > Blade Assembly

  • Title
54-9190

2

Nut-Hex 3/8-24 Lock

Part# 54-9190 (Superseded to 127-6852)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

32144-85

4

Screw-Hwh 1/4-20 X .62

Part# 32144-85

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.14

100-1048

5

Bearing-Ball

Part# 100-1048 (Superseded to 38-7820)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

104-5937

6

Screw-Hh 3/8-24 X 2 3/4

Part# 104-5937

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.16

107-0754

7

Drum

Part# 107-0754 (Superseded to 126-8108)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $37.24

107-0758

8

Spacer-Bearing

Part# 107-0758

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

107-0759

9

Bolt-Shoulder

Part# 107-0759

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

107-0797

10

Bushing

Part# 107-0797

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

109-7243

12

Plate,Anchor

Part# 109-7243

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.65

107-7471

15

Plate-Guide

Part# 107-7471

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.79

120-9514

16

Plate-Brake, Asm

Part# 120-9514 (Superseded to 125-1063)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.76

107-7487

17

Support-Blade

Part# 107-7487

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.47

108-3766-03

18

Support-Blade

Part# 108-3766-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

108-3787

19

Disc

Part# 108-3787

OEM Warranty Repair Part for Exmark

Not available

108-3790

20

Retainer-Belt

Part# 108-3790 (Superseded to 138-3217)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

116-3360-03

21

Cover-Bbc

Part# 116-3360-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.37

110-1790

22

Belt-Bbc

Part# 110-1790

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.82

108-3792

24

Spring-Tension, Brake

Part# 108-3792

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

3231-38

26

Bolt-Carriage 3/8-16 X 1 1/4

Part# 3231-38

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

3256-16

27

Washer-#12 Std

Part# 3256-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

3296-42

30

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

603773

33

Nut-Hex 3/8-16 Side Lock

Part# 603773

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

605256

34

Washer-Plain

Part# 605256

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

116-4500

35

Blade-Medium Lift, 20.5

Part# 116-4500 (Superseded to 135-0413-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.11

109-7299

36

Belt,3l P21 Drive

Part# 109-7299

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.66

108-9342

40

Nut-Hex M14-1.5 Lock

Part# 108-9342

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

116-2666

41

Spacer

Part# 116-2666

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

110-7456

42

Pulley

Part# 110-7456

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $39.12
