ECXHNBBC21 - Exmark 21" X-Series Walk-Behind Mower, Honda GXV, BBC (SN: 312000000 - 312999999) (2012)

21" X-Series Walk-Behind Mower, Honda GXV, BBC

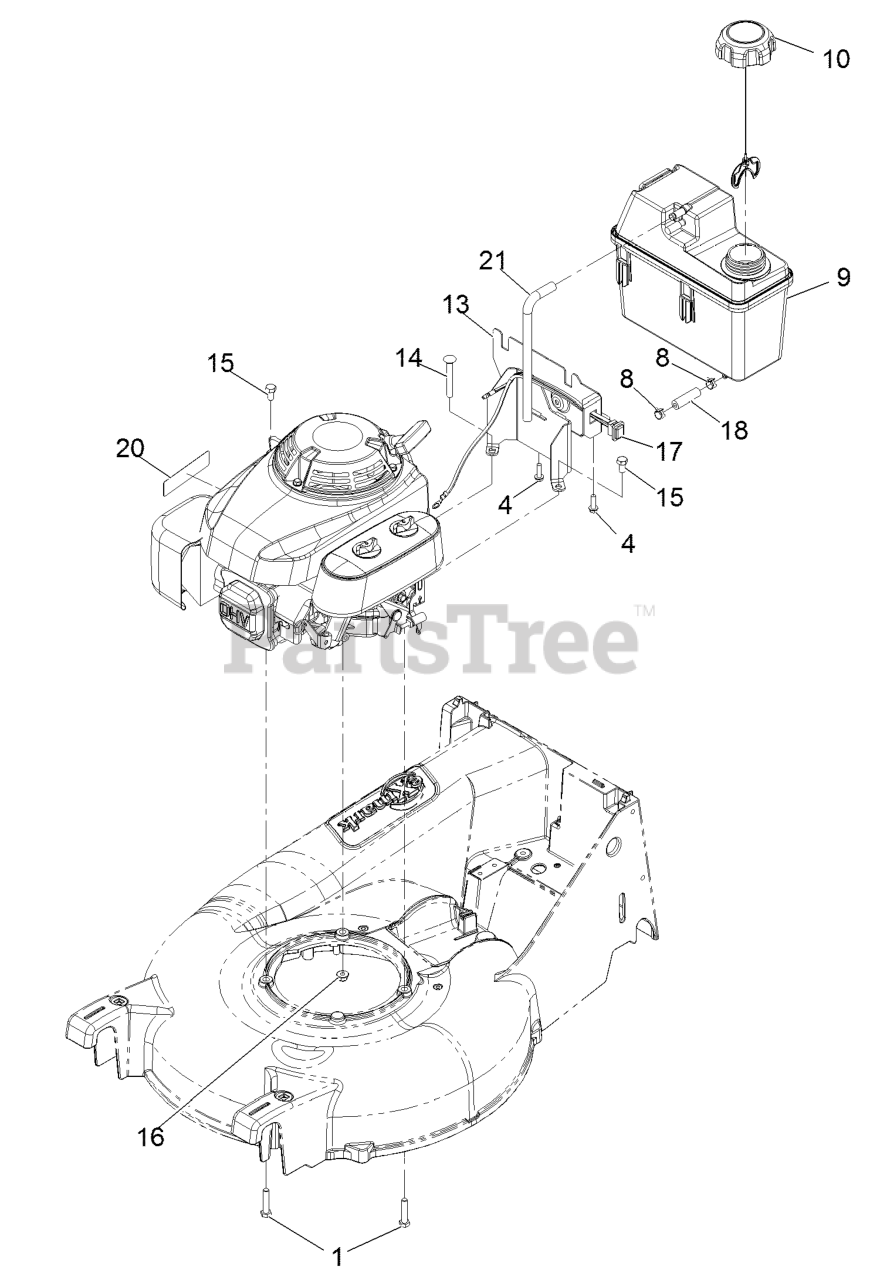

ECXHNBBC21 - Exmark 21" X-Series Walk-Behind Mower, Honda GXV, BBC (SN: 312000000 - 312999999) (2012) > Parts Diagrams (6) > Engine Assembly

  • Title
3210-8

1

Screw-Hh 5/16-24 X 1 1/2

Part# 3210-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.01

46-8091

4

Screw-Hwh 1/4-10 X .82 Plastite

Part# 46-8091

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.64

2412-98

8

Clamp-Hose

Part# 2412-98

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.95

114-0280

9

Tank-Fuel

Part# 114-0280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $96.53

109-6776

10

Cap-Ratchet, Tethered

Part# 109-6776 (Superseded to 137-4127)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.48

116-5361-03

13

Bracket Asm [Black]

Part# 116-5361-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $92.57

3230-8

14

Bolt-Carriage 5/16-18 X 2 1/2

Part# 3230-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.74

3210-2

15

Screw-Hh 5/16-24 X 5/8

Part# 3210-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.12

104-8300

16

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

109-7247

17

Harness,Run/Stop

Part# 109-7247

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.95

119-7856

18

Hose-Fuel

Part# 119-7856

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.37

117-2718

20

Decal-Arrester, Spark

Part# 117-2718

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.52

115-0962

21

Hose-Vent, Canister

Part# 115-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.76
