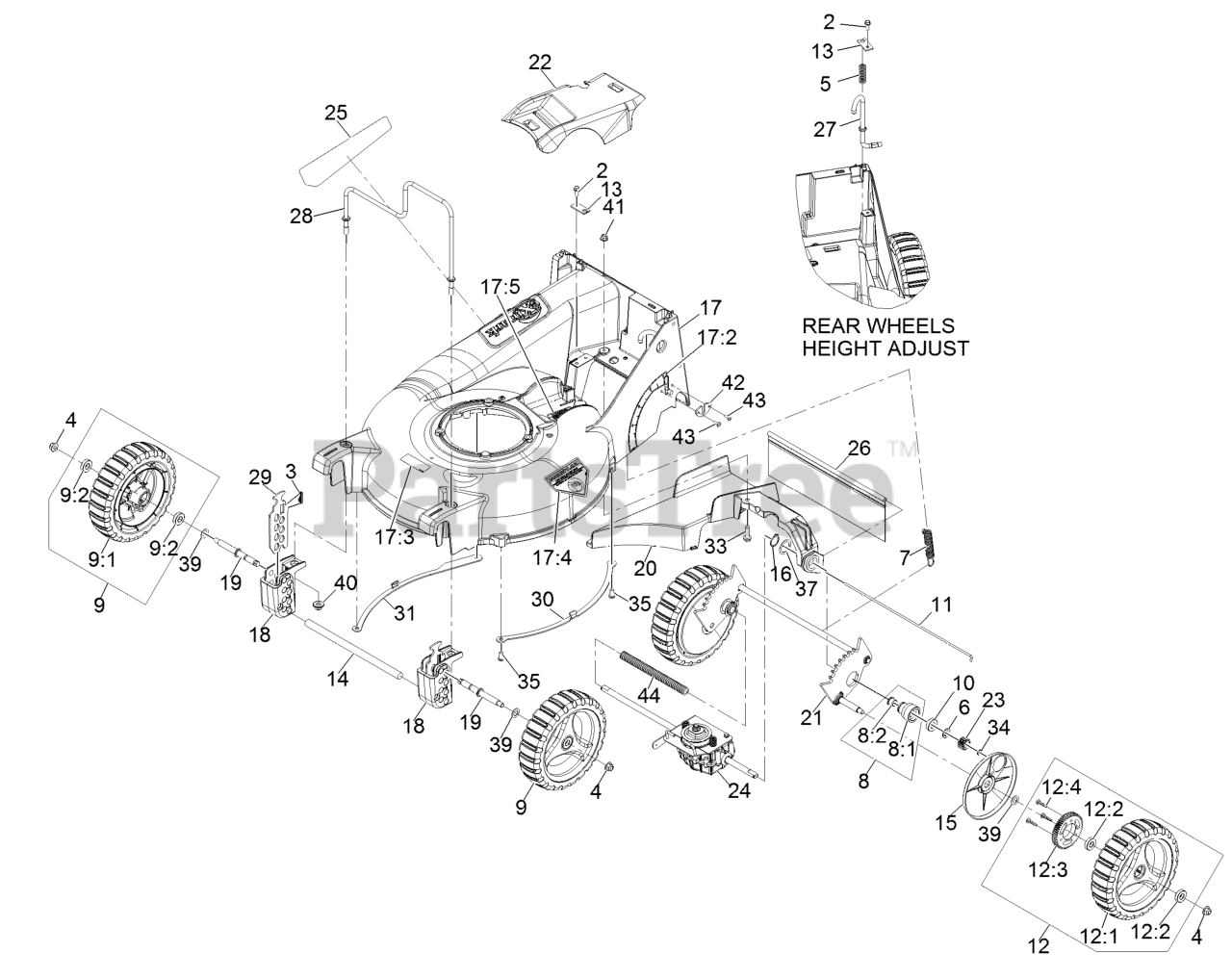

ECXKA21 - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 312000000 - 312999999) (2012) > Parts Diagrams (6) > Deck and Wheel Assembly

  • Title
32144-85

2

Screw-Hwh 1/4-20 X .62

Part# 32144-85

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.14

109-7258

3

Spring-Compression

Part# 109-7258

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

104-8301

4

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89

109-7694

5

Spring-Compression

Part# 109-7694

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

108-5059

6

Spacer-Bushing

Part# 108-5059

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

109-7692

7

Spring-Extension

Part# 109-7692

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

116-6172

8

Housing Asm

Part# 116-6172

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

116-6171

8:1

Housing-Bearing

Part# 116-6171

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

116-4279

8:2

Bearing-Flange

Part# 116-4279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

109-8016

9

Asm,Wheel And Tire With Bearing

Part# 109-8016 (Superseded to 126-7347)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $60.36

109-8033

9:1

Asm,Wheel 9"

Part# 109-8033 (Superseded to 126-7345)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.95

109-8020

9:2

Bearing-Ball

Part# 109-8020 (Superseded to 52-2450)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

109-8020

10

Bearing-Ball

Part# 109-8020 (Superseded to 52-2450)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

109-8025

11

Rod,Shield

Part# 109-8025

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

109-8032

12

Asm,Rear Wheel 9"

Part# 109-8032 (Superseded to 135-0203)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $65.95

109-8033

12:1

Asm,Wheel 9"

Part# 109-8033 (Superseded to 126-7345)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.95

109-8020

12:2

Bearing-Ball

Part# 109-8020 (Superseded to 52-2450)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

109-7264

12:3

Gear

Part# 109-7264

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.92

27-6260

12:4

Screw-Drive

Part# 27-6260

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

109-8441

13

Bracket,Mount

Part# 109-8441

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

109-8454

14

Rod,Bumper

Part# 109-8454

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.76

109-9287

15

Cover,Gear

Part# 109-9287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

32151-36

16

Ring-Retaining

Part# 32151-36

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.53

116-2006

17

Deck W/Decals

Part# 116-2006

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $498.03

116-1922

17:2

Decal-Height Of Cut

Part# 116-1922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

68-7410

17:3

Decal-Blade

Part# 68-7410

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

94-8072

17:4

Decal-Danger

Part# 94-8072

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

109-9317

17:5

Decal-Cover Missing

Part# 109-9317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.52

109-9302

18

Block,Front Quadrant

Part# 109-9302

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.79

116-0994

19

Axle,Wheel

Part# 116-0994

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

109-9310-01

20

Bkt,Trans Support/Chute

Part# 109-9310-01 (Superseded to 116-9646-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.22

109-9312

21

Wld,Rear Axle P21

Part# 109-9312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $80.48

109-9324

22

Cover,Belt

Part# 109-9324

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.58

110-9417

23

Gear-Pinion, 15t

Part# 110-9417 (Superseded to 131-5399)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

116-0103

24

Asm,Transmission W/Bracket

Part# 116-0103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $189.55

116-4385

25

Decal-Comm 21 X-Series

Part# 116-4385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.05

116-0252

26

Shield-Trailing P21

Part# 116-0252

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.18

116-0329

27

Rod-Height Adj P21

Part# 116-0329

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

116-0522

28

Guard,Engine

Part# 116-0522

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.71

109-9292

29

Plate, Front Height

Part# 109-9292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.58

116-0995-03

30

Skid,Lh

Part# 116-0995-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.42

116-0996-03

31

Skid,Rh

Part# 116-0996-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.42

32144-49

33

Screw-Hwh 5/16-18 1 1/4 Tf

Part# 32144-49

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

32151-61

34

Ring-Retaining

Part# 32151-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

613381

35

Screw-Button Head 5/16-18 X .725 Tf

Part# 613381

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.41

74-1810

37

Washer

Part# 74-1810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.16

36-4780

39

Washer

Part# 36-4780

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

109-6658

40

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

104-8300

41

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

116-2221

42

Plate,Wear

Part# 116-2221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

114439

43

Rivet

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

117-5260

44

Cover-Shaft, Drive

Part# 117-5260

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34
