ECXKABBC21 - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC (SN: 312000000 - 312999999) (2012)

21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC

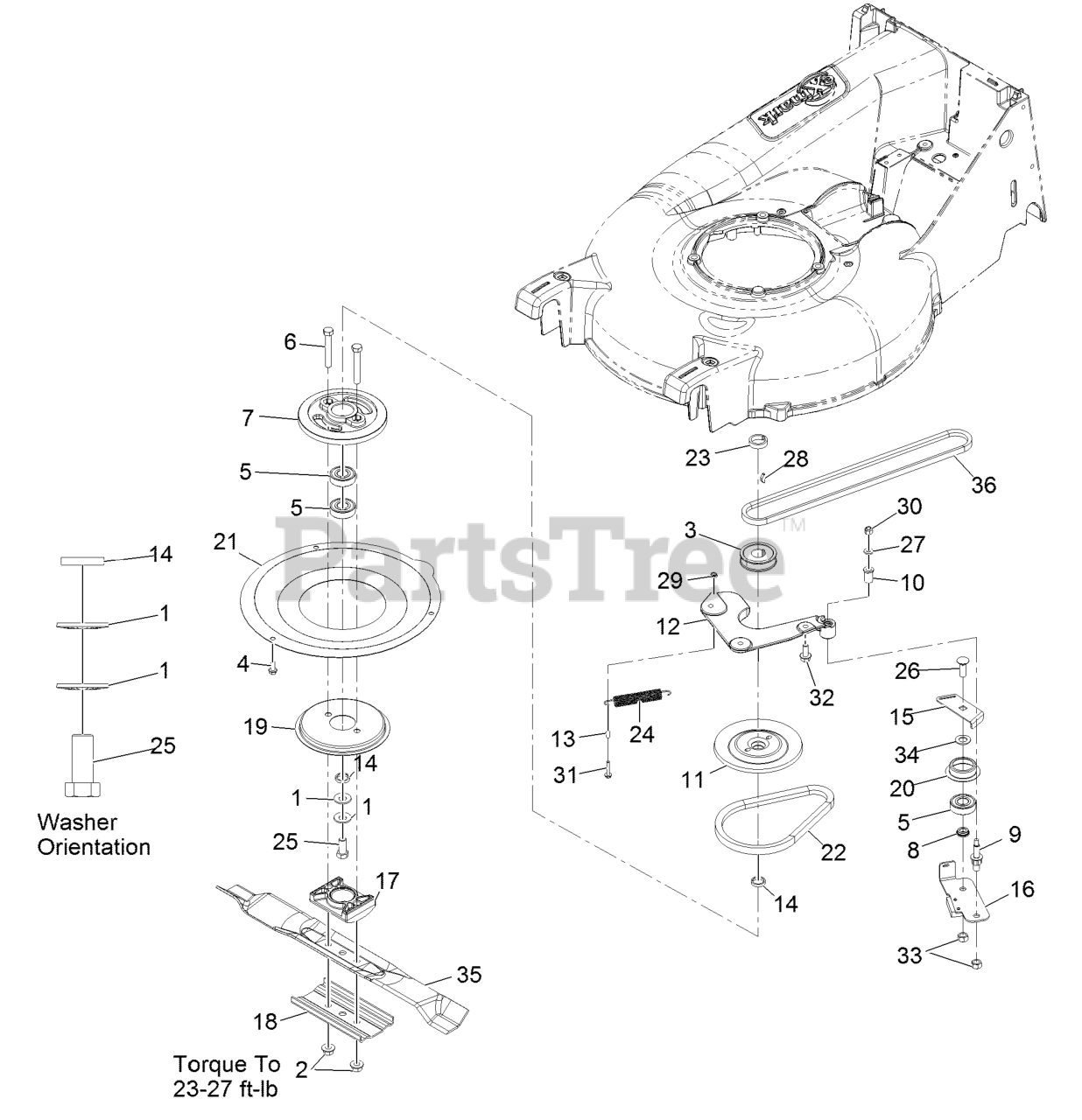

ECXKABBC21 - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC (SN: 312000000 - 312999999) (2012) > Parts Diagrams (6) > Blade Assembly

  • Title
1-603610

1

Washer-Spring Disc 7/16

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

54-9190

2

Nut-Hex 3/8-24 Lock

Part# 54-9190 (Superseded to 127-6852)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

56-6180

3

Pulley-Driver

Part# 56-6180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.65

32144-85

4

Screw-Hwh 1/4-20 X .62

Part# 32144-85

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.14

100-1048

5

Bearing-Ball

Part# 100-1048 (Superseded to 38-7820)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

3211-42

6

Screw-Hh 3/8-24 X 2 1/2

Part# 3211-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.84

107-0754

7

Drum

Part# 107-0754 (Superseded to 126-8108)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $37.24

107-0758

8

Spacer-Bearing

Part# 107-0758

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

107-0759

9

Bolt-Shoulder

Part# 107-0759

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

107-0797

10

Bushing

Part# 107-0797

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

107-4277

11

Pulley- Driver, Upper

Part# 107-4277

OEM Warranty Repair Part for Exmark

Currently unavailable

116-3572

12

Plate-Mounting, Bbc

Part# 116-3572

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.31

107-4292

13

Spacer-Bbc

Part# 107-4292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

107-4293

14

Spacer-Plate, Bbc

Part# 107-4293

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

107-7471

15

Plate-Guide

Part# 107-7471

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.79

120-9514

16

Plate-Brake, Asm

Part# 120-9514 (Superseded to 125-1063)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.76

107-7487

17

Support-Blade

Part# 107-7487

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.47

108-3766-03

18

Support-Blade

Part# 108-3766-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

108-3787

19

Disc

Part# 108-3787

OEM Warranty Repair Part for Exmark

Not available

108-3790

20

Retainer-Belt

Part# 108-3790 (Superseded to 138-3217)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

116-3360-03

21

Cover-Bbc

Part# 116-3360-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.37

110-1790

22

Belt-Bbc

Part# 110-1790

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.82

110-2142

23

Spacer-Pulley

Part# 110-2142

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.64

115-4471

24

Spring-Extension

Part# 115-4471

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

3212-4

25

Screw-Hh 7/16-20 X 1

Part# 3212-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.61

3231-38

26

Bolt-Carriage 3/8-16 X 1 1/4

Part# 3231-38

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

3256-16

27

Washer-#12 Std

Part# 3256-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

3257-17

28

Key-Woodruff 5/32 X 21/32

Part# 3257-17

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

3296-27

29

Nut-Lock #10-32

Part# 3296-27

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.10

3296-42

30

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

32144-9

31

Screw-Hwh #10-32 X 1 Taptite

Part# 32144-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

33104-020

32

Screw-Hh M8-1.25 X 20mm

Part# 33104-020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.68

603773

33

Nut-Hex 3/8-16 Side Lock

Part# 603773

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

605256

34

Washer-Plain

Part# 605256

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

116-4500

35

Blade-Medium Lift, 20.5

Part# 116-4500 (Superseded to 135-0413-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.11

109-7299

36

Belt,3l P21 Drive

Part# 109-7299

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.66
