ED-200 - Echo Engine Drill (SN: E01505001001 - E01505999999) Carburetor Parts Diagram

Engine Drill

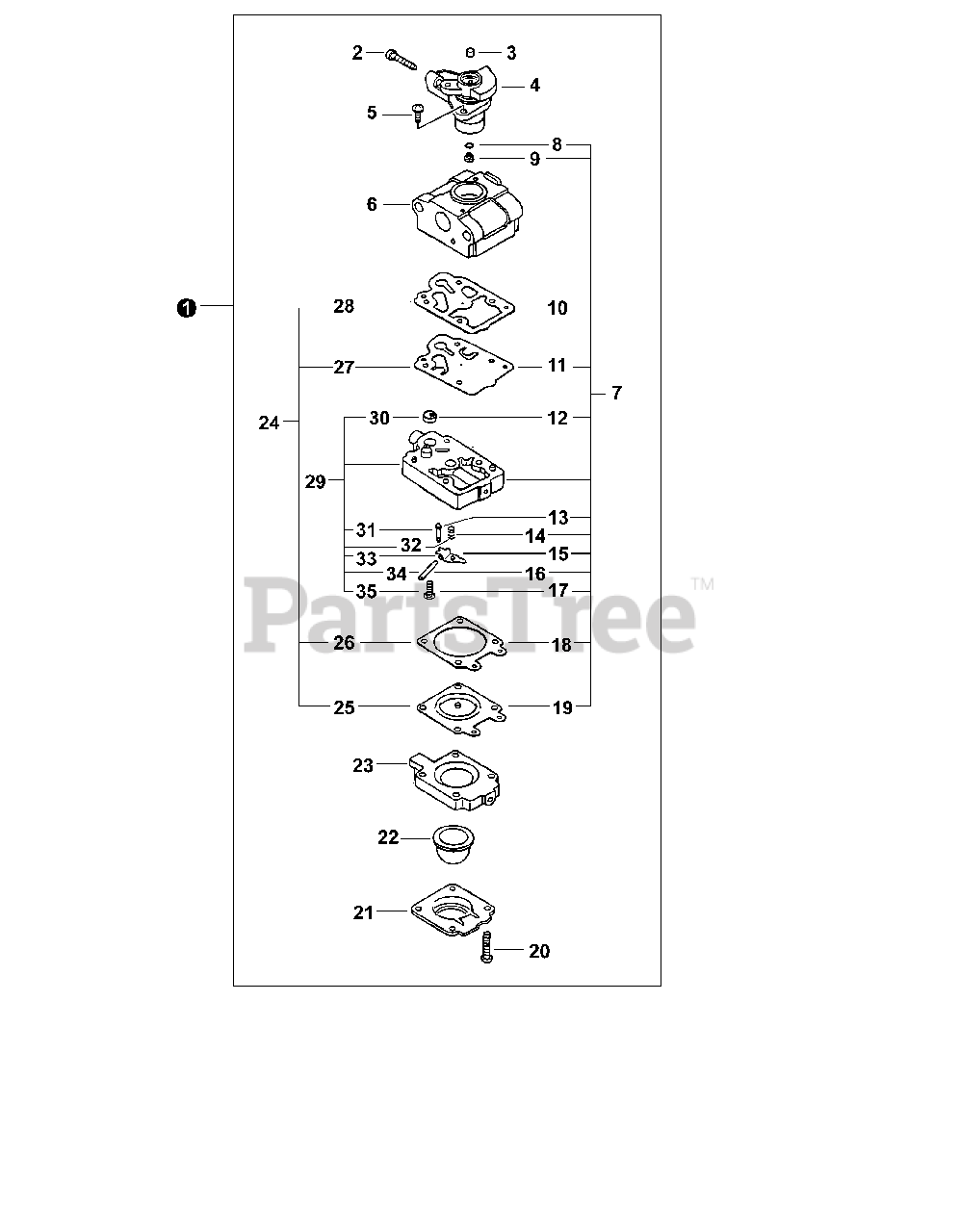

Carburetor Parts Diagram

  • Title

1

Echo A021000541

CARBURETOR - WYL-180A

Note: Includes Items 2-35

$117.99

$

In Stock, only 2 left!

0

2

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

3

Echo A259000000

PLUG

$0.99

$

Usually ships in 2-4 days

0

4

THROTTLE VALVE ASSY

$

$

Not available

5

Echo 12311444330

SCREW, THROTTLE COLLAR

$0.99

$

Usually ships in 2-4 days

0

6

BODY, CARBURETOR

$

$

Not available

7

Echo P003001320

REPAIR KIT

Note: Includes Items 8-19

$19.99

$

Usually ships in 2-4 days

0

8

O-RING

$

$

Not available

9

JET

$

$

Not available

10

GASKET, PUMP

$

$

Not available

11

DIAPHRAGM, PUMP

$

$

Not available

12

STRAINER

$

$

Not available

13

VALVE, INLET NEEDLE

$

$

Not available

14

SPRING, METERING LEVER

$

$

Not available

15

LEVER, METERING

$

$

Not available

16

PIN, METERING LEVER

$

$

Not available

17

SCREW, METERING LEVER PIN

$

$

Not available

18

GASKET, DIAPHRAGM

$

$

Not available

19

DIAPHRAGM, METERING

$

$

Not available

20

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

21

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 2 left!

0

22

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

23

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, only 2 left!

0

24

Echo P003001310

GASKET / DIAPHRAGM KIT

Note: Includes Items 25-28

$8.49

$

In Stock, only 1 left!

0

25

DIAPHRAGM, METERING

$

$

Not available

26

GASKET, DIAPHRAGM

$

$

Not available

27

DIAPHRAGM, PUMP

$

$

Not available

28

GASKET, PUMP

$

$

Not available

29

Echo 12317905560

BODY ASSY, PUMP

Note: Includes Items 30-35

$20.99

$

In Stock, only 1 left!

0

30

STRAINER

$

$

Not available

31

VALVE, INLET NEEDLE

$

$

Not available

32

SPRING, METERING LEVER

$

$

Not available

33

LEVER, METERING

$

$

Not available

34

PIN, METERING LEVER

$

$

Not available

35

SCREW, METERING LEVER PIN

$

$

Not available
