ED-200 - Echo Engine Drill (SN: E01505001001 - E01505999999) Gear Case Parts Diagram

Engine Drill

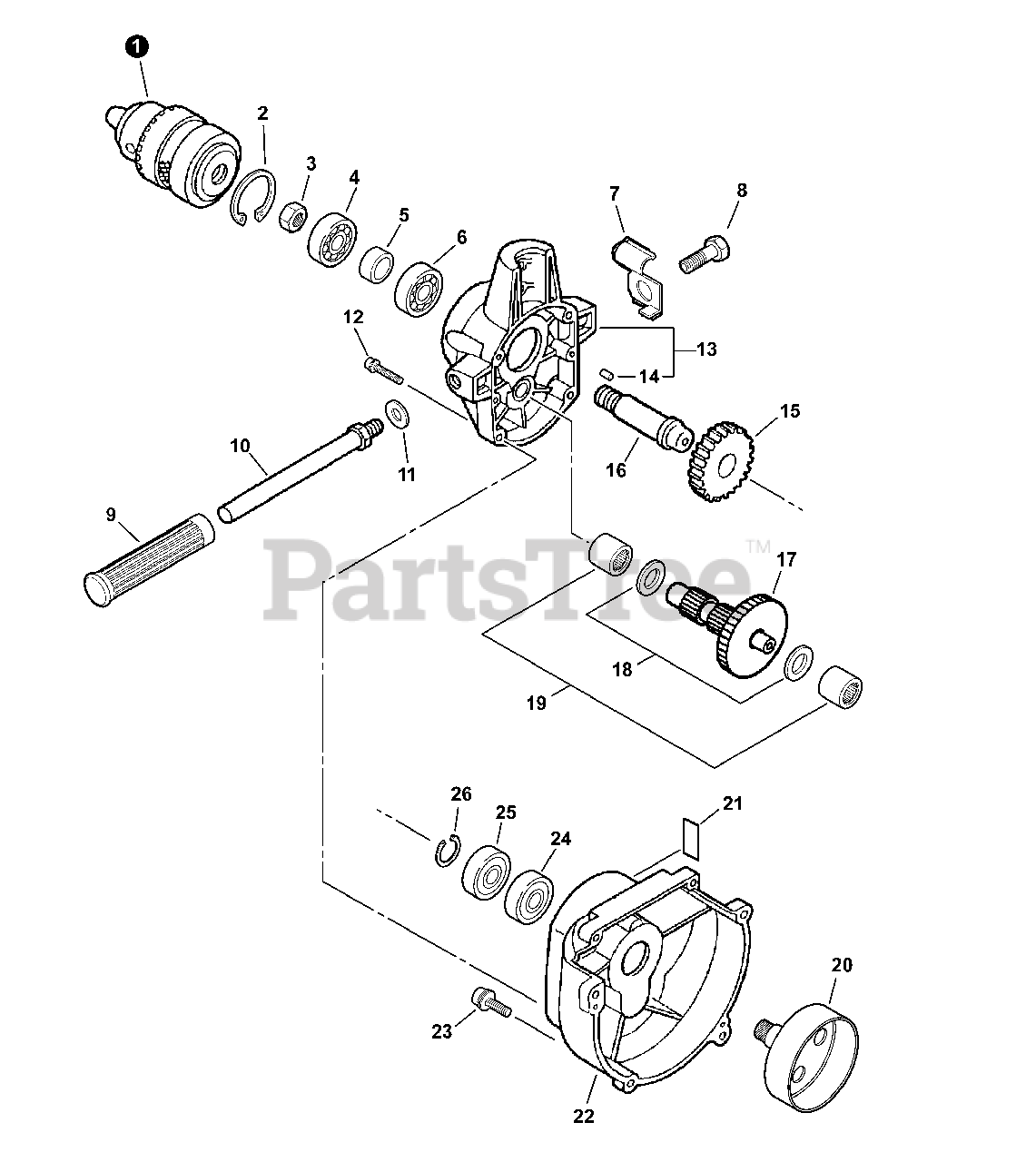

Gear Case Parts Diagram

  • Title

1

Echo 60405105560

CHUCK, KEYED

$164.99

$

In Stock, Qty 6

0

2

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

3

Echo 22431920960

NUT, 12

$17.99

$

Usually ships in 2-4 days

0

4

Echo 90080206002

BEARING, BALL 6002 DDU

$19.99

$

In Stock, only 2 left!

0

5

Echo 60404405560

COLLAR

$4.99

$

Usually ships in 2-4 days

0

6

Echo 90080036002

BEARING, BALL 6002

$17.99

$

Usually ships in 2-4 days

0

7

Echo 89757505560

HOLDER, CHUCK KEY

$8.49

$

In Stock, only 2 left!

0

8

Echo 90010010015

BOLT 10×1.5×15

$1.49

$

In Stock, only 2 left!

0

9

Echo 35151522330

GRIP
(Superseded to 35131128330)

$7.99

$

In Stock, Qty 9

0

10

Echo 35121005560

HANDLE, LEFT

$25.99

$

In Stock, only 4 left!

0

11

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

12

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

13

Echo 60430520960

HOUSING, GEAR CASE

Note: Includes Item 14

$101.99

$

Usually ships in 2-4 days

0

14

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 12

0

15

Echo 60422405560

GEAR, SPUR

$59.99

$

Usually ships in 2-4 days

0

16

Echo 60602109060

GEAR, SHAFT

$79.99

$

Usually ships in 2-4 days

0

17

Echo 60420605560

GEAR, SHAFT

$81.99

$

Usually ships in 2-4 days

0

18

Echo 60422305560

WASHER

$3.99

$

Usually ships in 2-4 days

0

19

Echo 60422105560

BEARING, NEEDLE

$11.99

$

In Stock, only 2 left!

0

20

Echo 17500505560

DRUM, CLUTCH

$71.99

$

Usually ships in 2-4 days

0

21

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 1 left!

0

22

Echo 10151120960

COVER, FAN

$79.99

$

Usually ships in 2-4 days

0

23

Echo 900242-04016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

24

Echo 90080106001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

25

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 9

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0
