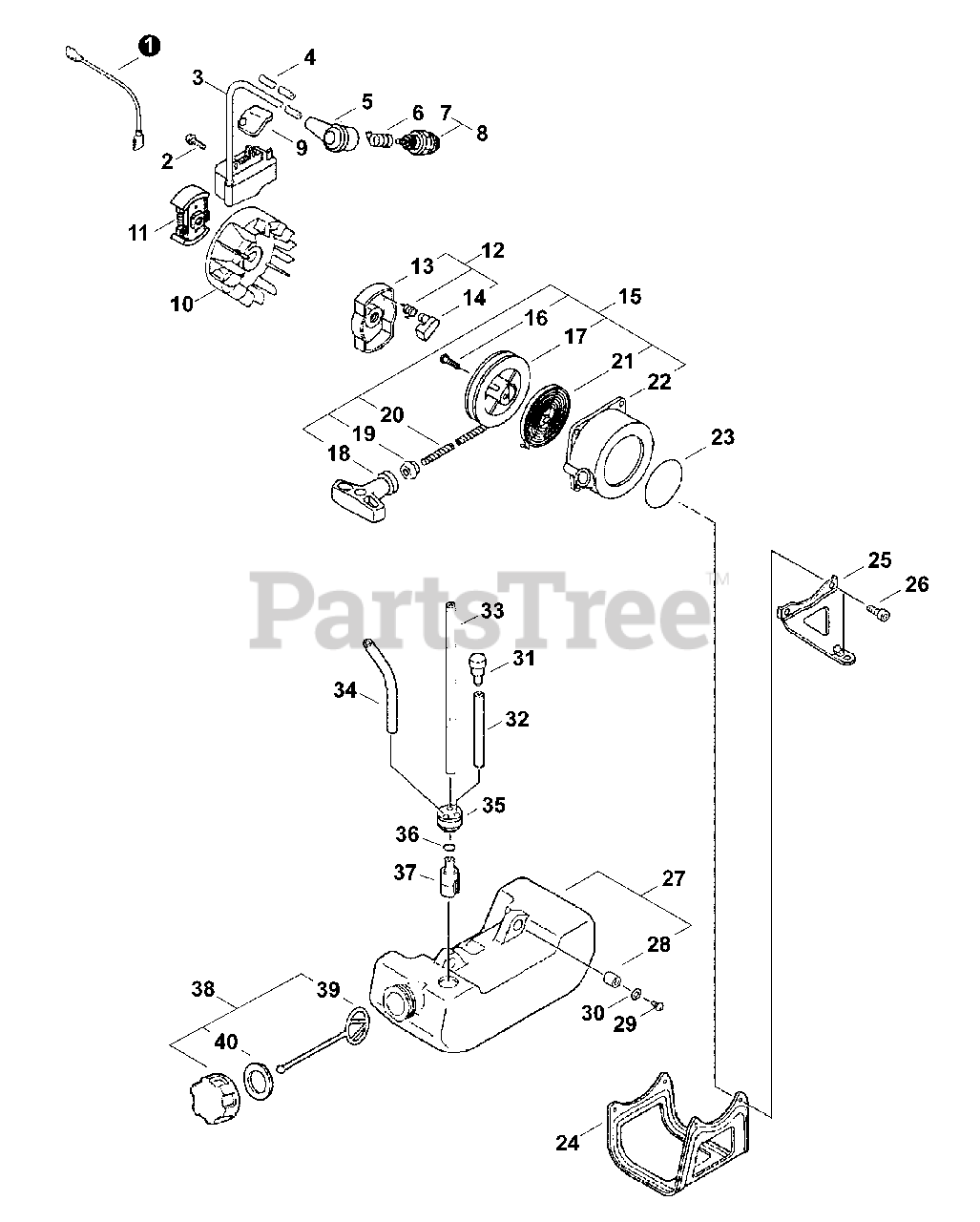

ED-200 - Echo Engine Drill (SN: E01505001001 - E01505999999) Ignition, Starter, Fuel System Parts Diagram

Engine Drill

Ignition, Starter, Fuel System Parts Diagram

  • Title

1

Echo V485000290

LEAD - GROUND

$3.99

$

Usually ships in 2-4 days

0

2

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

3

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$85.99

$

In Stock, Qty 20+

0

4

Echo 15611054930

TUBE, INSULATOR

$1.99

$

In Stock, Qty 20+

0

5

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

6

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

7

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

8

Echo A425000000

SPARK PLUG - BPMR8Y

$3.99

$

In Stock, Qty 20+

0

9

Echo 150112-42030

GROMMET

$3.49

$

Usually ships in 2-4 days

0

10

Echo A409000160

FLYWHEEL

$76.99

$

Usually ships in 2-4 days

0

11

Echo 17500052130

CLUTCH ASSY

$47.99

$

Usually ships in 2-4 days

0

12

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes Items 13-14

$11.99

$

In Stock, Qty 9

0

13

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

14

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

15

Echo 177200-42033

STARTER ASSY, RECOIL

Note: Includes Items 16-22

$58.99

$

In Stock, Qty 10

0

16

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

17

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 6

0

18

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

19

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

20

Echo 17622610120

ROPE, STARTER 3×1000

$

$

Currently unavailable

21

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

22

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

23

Echo X502000190

LABEL - ECHO
(Superseded to X502000310)

$0.99

$

In Stock, Qty 20+

0

24

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available

25

Echo 35101105560

SUPPORT, HANDLE

$12.99

$

In Stock, only 2 left!

0

26

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

27

Echo 13100544332

TANK, FUEL

Note: Includes Item 28

$21.99

$

In Stock, Qty 6

0

28

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

29

Echo 900243-05016

SCREW 5×16

$0.99

$

Usually ships in 2-4 days

0

30

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

31

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 7

0

32

Echo 13131205560

PIPE, VENT

$3.49

$

In Stock, only 2 left!

0

33

Echo 13201005560

PIPE, FUEL

$10.99

$

In Stock, only 2 left!

0

34

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

35

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

36

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

37

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

38

Echo 131004-08960

CAP ASSY, FUEL

Note: Includes Items 39-40

$

$

Not available

39

Echo 131051-52430

CONNECTOR, CAP

$1.49

$

In Stock, Qty 5

0

40

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available
