ED-200 - Echo Engine Drill (SN: E01505001001 - E01505999999) Ignition, Starter, Fuel System Parts Diagram

Engine Drill

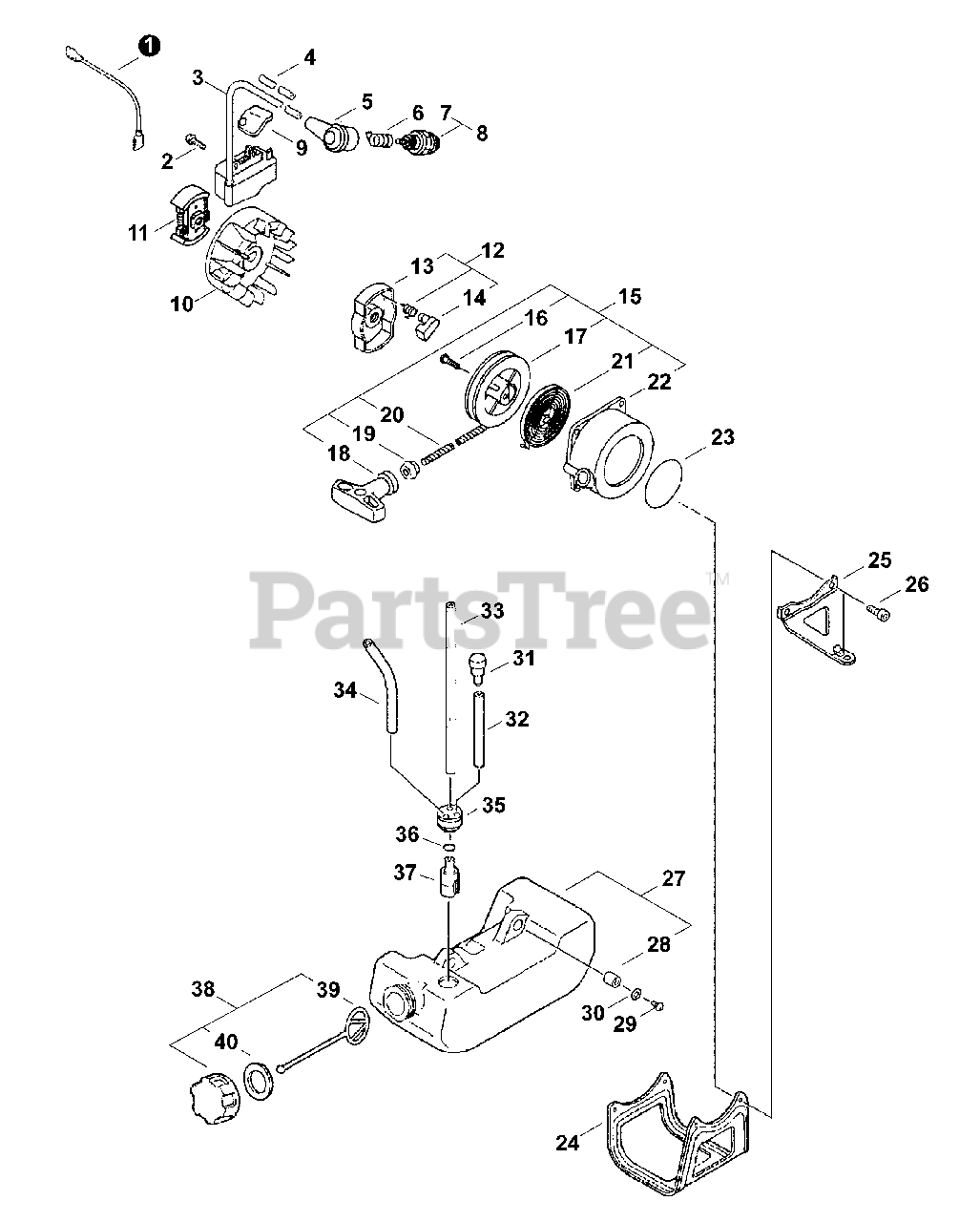

Ignition, Starter, Fuel System Parts Diagram

  • Title

1

Echo V485000290

LEAD - IGNITION

$3.49

$

Usually ships in 2-4 days

0

2

Echo 90016204020

SCREW - 4×20

$1.49

$

In Stock, Qty 20+

0

3

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$70.99

$

In Stock, Qty 20+

0

4

Echo 15611054930

TUBE, INSULATOR

$1.99

$

In Stock, Qty 20+

0

5

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

6

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

7

Echo 15901019830

SPARK PLUG -- BPM8Y

$3.49

$

In Stock, Qty 20+

0

8

Echo A425000000

SPARK PLUG -- BPMR8Y

$3.49

$

In Stock, Qty 20+

0

9

Echo 15011242030

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

10

Echo A409000160

FLYWHEEL

$63.99

$

Usually ships in 2-4 days

0

11

Echo 17500052130

CLUTCH ASSY

$39.99

$

Usually ships in 2-4 days

0

12

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes Items 13-14

$16.99

$

In Stock, Qty 20+

0

13

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 20+

0

14

Echo 17721844330

PAWL, STARTER

$3.49

$

In Stock, Qty 20+

0

15

Echo 17720042033

STARTER ASSY

Note: Includes Items 16-22

$49.99

$

In Stock, Qty 20+

0

16

Echo 17723644330

SCREW

$3.49

$

In Stock, Qty 13

0

17

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 20+

0

18

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

19

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 19

0

20

Echo 17622610120

ROPE, STARTER - 3×1000

$

$

Currently unavailable

21

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 20+

0

22

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 3 left!

0

23

Echo X502000190

LABEL - ECHO
(Superseded to X502000310)

$0.99

$

In Stock, Qty 20+

0

24

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

25

Echo 35101105560

SUPPORT, REAR HANDLE

$10.99

$

Usually ships in 2-4 days

0

26

Echo 90016304016

SCREW - 4×16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

27

Echo 13100544332

TANK, FUEL

Note: Includes Item 28

$20.99

$

In Stock, Qty 14

0

28

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

29

Echo 90024305016

SCREW - 5×16

$0.99

$

Usually ships in 2-4 days

0

30

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

31

Echo 13130056431

VENT, FUEL TANK

$7.49

$

In Stock, Qty 20+

0

32

Echo 13131205560

PIPE - 3×5×30 -- BLACK

$2.99

$

In Stock, only 1 left!

0

33

Echo 13201005560

PIPE - 3×5×160 -- BLACK

$8.49

$

Usually ships in 2-4 days

0

34

Echo 13201256030

PIPE - 3×6×80 -- CLEAR

$3.49

$

In Stock, Qty 20+

0

35

Echo 13211546730

GROMMET

$1.99

$

In Stock, Qty 20+

0

36

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

37

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

38

Echo 13100408960

CAP ASSY - ORANGE
(Superseded to P100006620)

Note: Includes Items 39-40

$7.49

$

In Stock, only 1 left!

0

39

Echo 13105152430

CONNECTOR, CAP

$1.49

$

In Stock, Qty 5

0

40

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0
