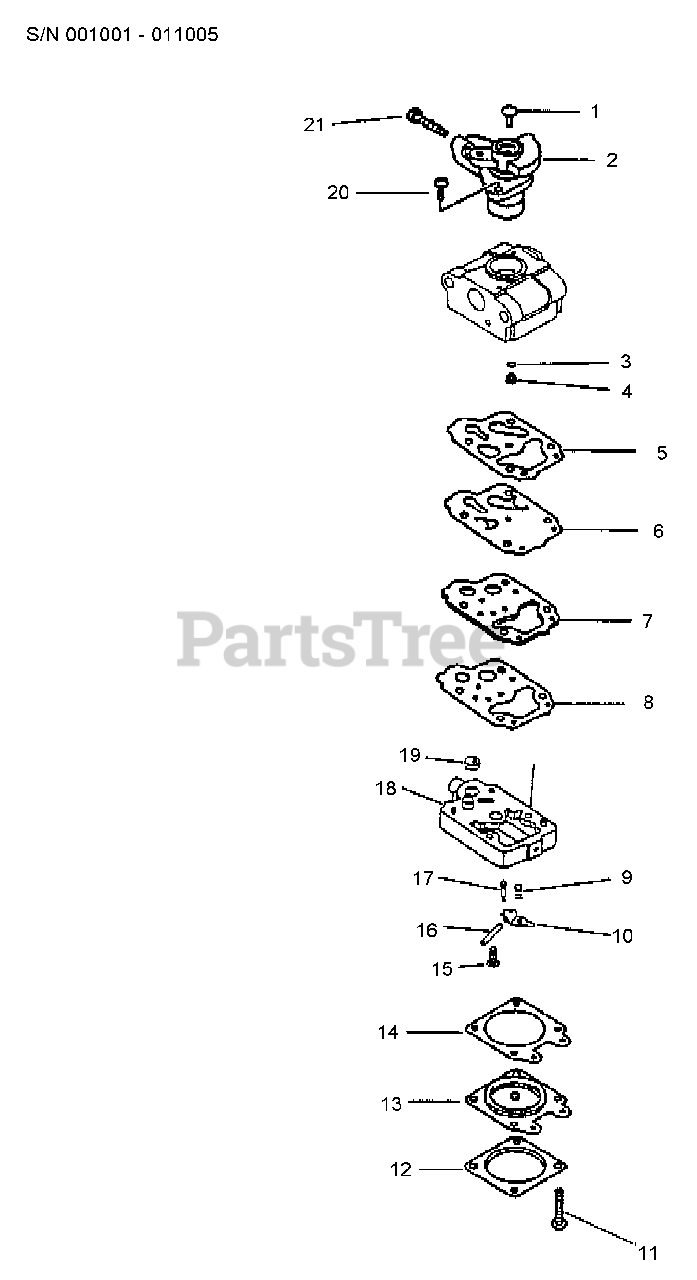

ED-2000 - Echo Engine Drill (Type 1) Carburetor S/N: 001001 - 011005 Parts Diagram

Engine Drill (Type 1)

Carburetor S/N: 001001 - 011005 Parts Diagram

  • Title

Echo 12300044430

CARBURETOR WYL-1
(Superseded to Discontinued)

Note: S/N 001001 - 011005. INCL. THE FOLLOWING

$

$

Not available

1

Echo 12314644330

PLUG, WELCH

$0.99

$

In Stock, only 1 left!

0

2

Echo 12311644330

VALVE, THROTTLE

$21.99

$

Usually ships in 2-4 days

0

3

Echo 12318305960

O-RING

$17.99

$

In Stock, only 3 left!

0

4

Echo 12318444330

JET, MAIN

$3.49

$

In Stock, only 4 left!

0

5

------------------

GASKET, PUMP

Note: USE GASKET/DIAPHRAGM KIT P/N 12310144430 AND REBUILD KIT P/N 12310044430

$

$

Not available

6

------------------

DIAPHRAGM, PUMP

Note: USE GASKET/DIAPHRAGM KIT P/N 12310144430 AND REBUILD KIT P/N 12310044430

$

$

Not available

7

Echo 12316040630

PLATE, PUMP

$4.49

$

Usually ships in 2-4 days

0

8

------------------

GASKET, PLATE

Note: USE REBUILD KIT P/N 12310044430

$

$

Not available

9

------------------

SPRING, METERING LEVER

Note: USE REBUILD KIT P/N 12310044430

$

$

Not available

10

------------------

LEVER, METERING

Note: USE REBUILD KIT P/N 12310044430

$

$

Not available

11

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0

12

Echo 12314203930

COVER, METERING

$4.49

$

In Stock, only 2 left!

0

13

------------------

DIAPHRAGM, METERING

Note: USE GASKET/DIAPHRAGM KIT P/N 12310144430 AND REBUILD KIT P/N 12310044430

$

$

Not available

14

------------------

GASKET, METERING

Note: USE GASKET/DIAPHRAGM KIT P/N 12310144430 AND REBUILD KIT P/N 12310044430

$

$

Not available

15

------------------

SCREW, METERING LEVER PIN

Note: USE REBUILD KIT P/N 12310044430

$

$

Not available

16

------------------

PIN, METERING LEVER

Note: USE REBUILD KIT P/N 12310044430

$

$

Not available

17

------------------

VALVE, INLET NEEDLE

Note: USE REBUILD KIT P/N 12310044430

$

$

Not available

18

------------------

BASE, PURGE

Note: USE REBUILD KIT P/N 12310044430

$

$

Not available

19

------------------

STRAINER

Note: USE REBUILD KIT P/N 12310044430

$

$

Not available

20

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

Echo 12310144430

DIAPHRAGM/GASKET KIT

$21.99

$

Usually ships in 2-4 days

0

Echo 12310044430

REPAIR KIT

$30.99

$

Usually ships in 2-4 days

0

Echo 12300005560

CARBURETOR WYL-23

$93.99

$

In Stock, only 2 left!

0
