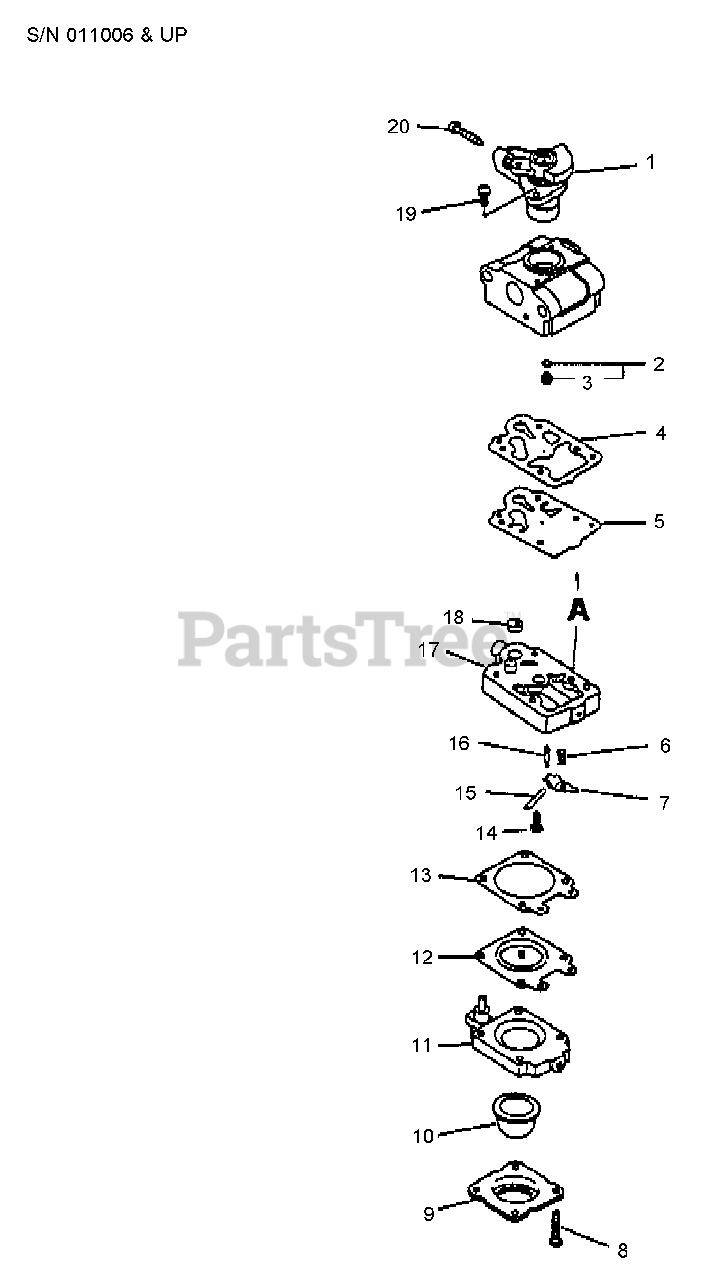

ED-2000 - Echo Engine Drill (Type 1) Carburetor S/N: 011006 - 999999 Parts Diagram

Engine Drill (Type 1)

Carburetor S/N: 011006 - 999999 Parts Diagram

  • Title

Echo 12300005560

CARBURETOR - WYL-23

Note: S/N 011005 & UP. INCL. THE FOLLOWING

$100.99

$

In Stock, only 2 left!

0

1

Echo 12311605560

VALVE, THROTTLE

$21.99

$

Usually ships in 2-4 days

0

2

Echo 12310744330

JET KIT - 37
(Superseded to Discontinued)

Note: Includes ITEM 3

$

$

Not available

3

O-RING

$

$

Not available

4

GASKET, PUMP

Note: USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560

$

$

Not available

5

DIAPHRAGM, PUMP

Note: USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560

$

$

Not available

6

SPRING, METERING LEVER

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

7

LEVER, METERING

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

8

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

9

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 2 left!

0

10

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

11

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, only 2 left!

0

12

DIAPHRAGM, METERING

Note: USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560

$

$

Not available

13

GASKET, METERING

Note: USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560

$

$

Not available

14

SCREW, METERING LEVER PIN

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

15

PIN, METERING LEVER

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

16

VALVE, INLET NEEDLE

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

17

BASE, PURGE

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

18

STRAINER

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

19

Echo 12311444330

SCREW, THROTTLE COLLAR

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

Echo 12310105560

GASKET / DIAPHRAGM KIT

$6.99

$

Usually ships in 2-4 days

0

Echo 12310005560

REPAIR KIT ED-2000

$36.99

$

Usually ships in 2-4 days

0
