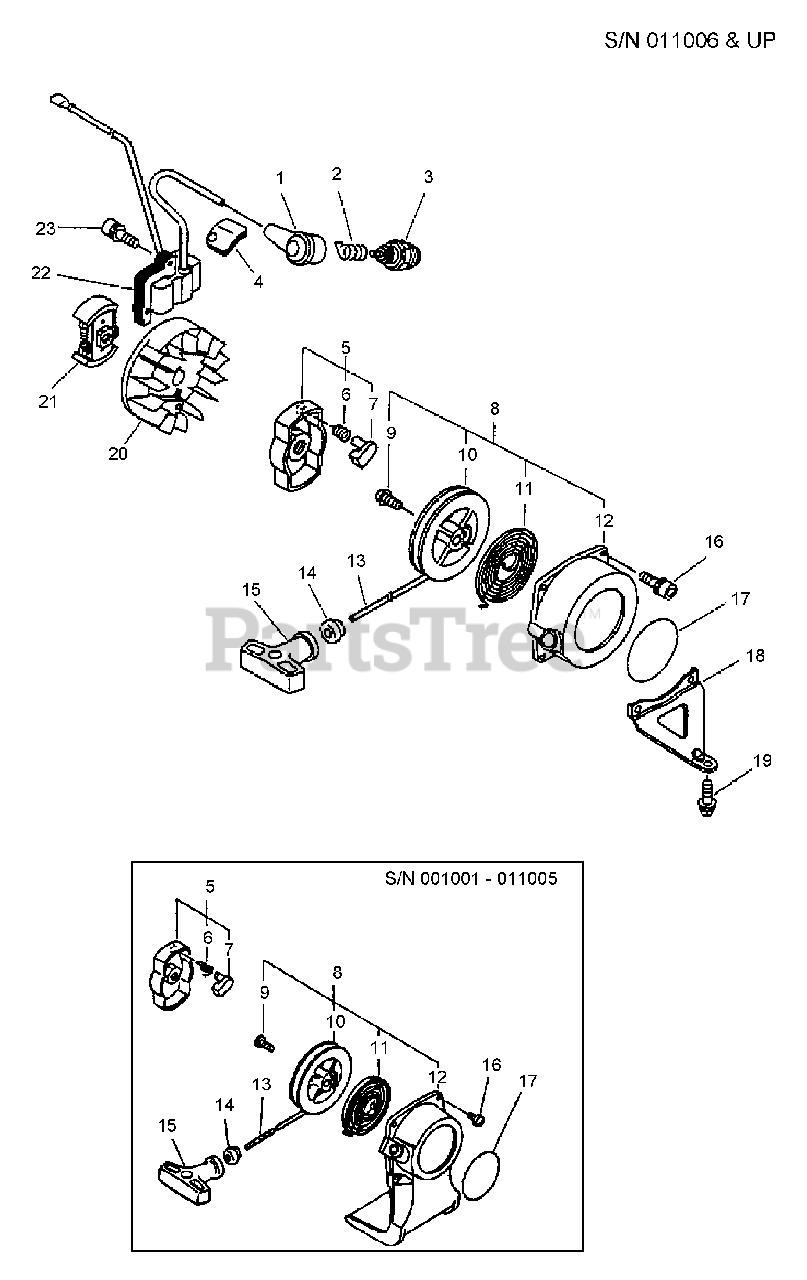

ED-2000 - Echo Engine Drill (Type 1) Clutch, Ignition, Starter S/N: 011006 & Up Parts Diagram

Engine Drill (Type 1)

Clutch, Ignition, Starter S/N: 011006 & Up Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

4

Echo 15011242030

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

5

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 6 & 7

$18.99

$

In Stock, Qty 7

0

6

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

7

Echo 17721844330

PAWL, STARTER - BLACK

$3.99

$

In Stock, Qty 20+

0

8

Echo 17720054130

STARTER ASSY

Note: S/N 001001 - 011005

$50.99

$

In Stock, Qty 14

0

8

Echo 17720042033

STARTER ASSY

Note: S/N 011006 & UP. INCLUDES ITEMS 9 - 15

$54.99

$

In Stock, Qty 20+

0

9

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 10

0

10

Echo 17721544430

REEL, ROPE

$9.99

$

In Stock, Qty 6

0

11

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

12

Echo 17723244333

CASE, STARTER - BLUE

Note: S/N 001001 - 011005

$45.99

$

In Stock, only 1 left!

0

12

Echo 17723242032

CASE, STARTER

Note: S/N 011006 & UP

$23.99

$

In Stock, only 2 left!

0

13

------------------

ROPE, STARTER - 3X990

Note: RePower BULK OPTION: 99944440000

$

$

Not available

14

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

15

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 10

0

16

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

17

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 6

0

18

Echo 35101105560

SUPPORT, REAR HANDLE

Note: S/N 011006 & UP

$11.99

$

In Stock, only 2 left!

0

19

Echo 90024205016

SCREW - 5X16

Note: S/N 011006 & UP

$0.99

$

In Stock, Qty 20+

0

20

Echo 15680144330

FLYWHEEL

$125.99

$

Usually ships in 2-4 days

0

21

Echo 17500054130

CLUTCH ASSY
(Superseded to 17500049030)

$30.99

$

In Stock, only 2 left!

0

22

Echo 15062605560

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

23

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$33.99

$

In Stock, only 4 left!

0
